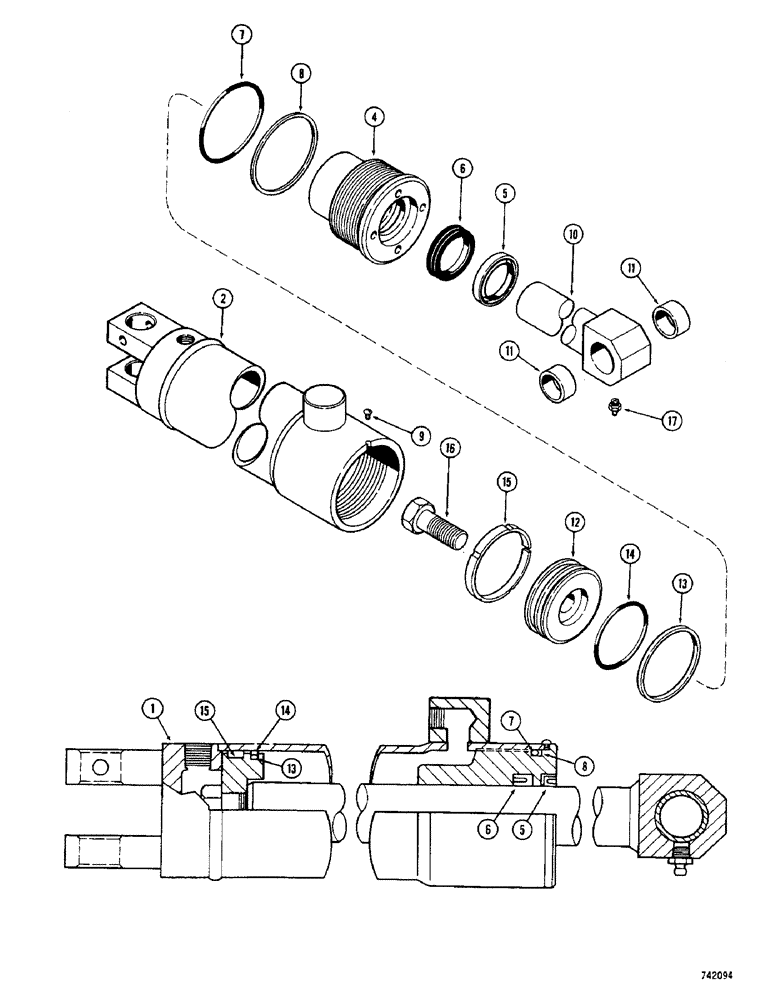

Запчасти Case 1700-SERIES (242) - G32941 BUCKET DUMP CYLINDER, GLAND HAS NO IDENTIFICATION RING (35) - HYDRAULIC SYSTEMS

1

G32941

CYLINDER

- bucket, 3" dia. x 14-1/4" stroke, Includes: Ref. 2 - 17

2шт.

2

L1232971

SCREW,Hex Skt Hd, M12 x 30mm, Cl 10.9

TUBE - cylinder body

1шт.

3

RESERVED

1шт.

G32797

GLAND

ASSEMBLY, Includes: Ref. 4 - 8

1шт.

4

G32044

GLAND

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

6

D36969

CUP

SEAL - piston rod, (1-1/2 x 2 x 13/32")

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- "O" ring back-up

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

10

G32945

ROD ASSY.

ROD - piston (1-1/2" dia.), Includes: Ref. 11

1шт.

11

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- piston rod (1 x 1-1/4 x 5/8")

2шт.

12

G32032

PISTON

- cylinder

1шт.

13

G32034

RING

- seal, piston (2-7/8 x 3 x 5/32" teflon)

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

14

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - piston (2-1/2 x 2-3/4 x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

15

G32033

RING

- wear, piston

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

16

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

G32269

KIT

SEAL KIT - cylinder repair, Includes: Ref. 5, 6, 7, 8, 13, 14 and 15

1шт.
