Запчасти Case 1700-SERIES (240) - G34244 LOADER LIFT CYLINDER, USED TRACTOR SERIAL NUMBER 9818188 AND AFTER (35) - HYDRAULIC SYSTEMS

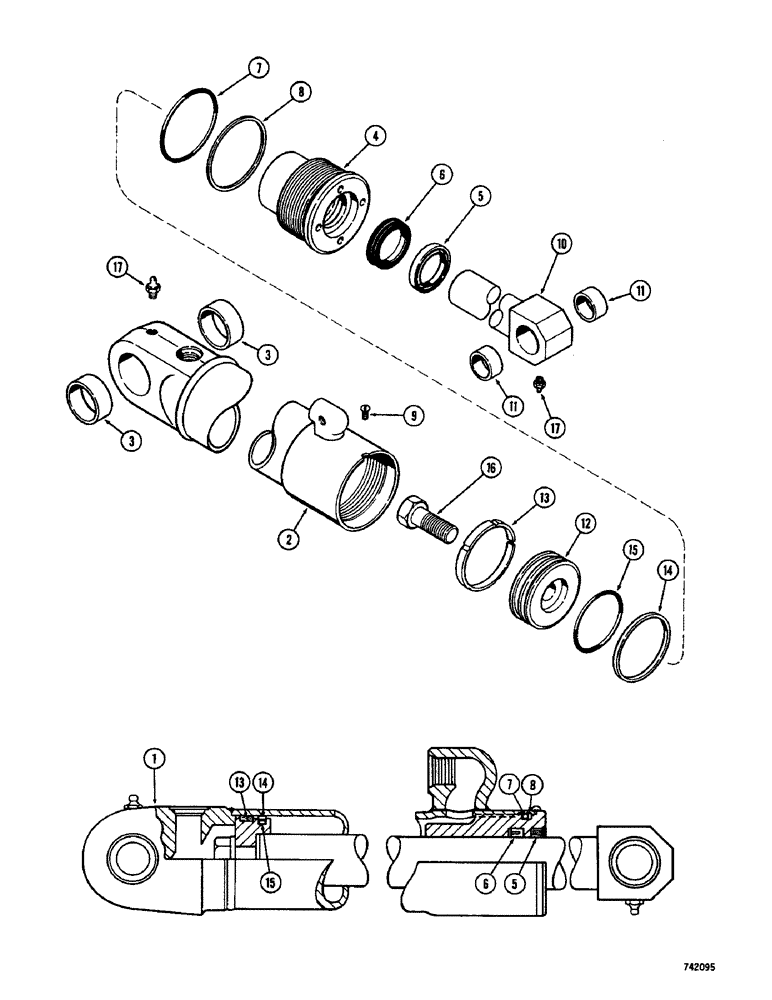

Схема запчастей Case 1700-SERIES - (240) - G34244 LOADER LIFT CYLINDER, USED TRACTOR SERIAL NUMBER 9818188 AND AFTER (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

G34244

CYLINDER

- lift, 3" dia. x 28" stroke, Includes: Ref. 2 - 17

2шт.

2

G34245

TUBE - cylinder body, Includes: Ref. 3 35.22" L

1шт.

3

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

- tube

2шт.

G34328

GLAND

ASSEMBLY - use G35218 gland - see below, has identification ring, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND, has identification ring

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - outer, piston rod

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

6

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3" x 3-1/4" x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- back-up, gland "O" ring

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

10

G34249

ROD

- piston (1-1/2" dia.), Includes: Ref. 11

1шт.

11

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- piston rod

2шт.

12

G33747

PISTON

1шт.

13

G32033

RING

- wear, piston

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

14

G32034

RING

- seal, piston (2-7/8 x 3 x 5/32" teflon)

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

15

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - piston (2-1/2 x 2-3/4 x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

16

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

G32269

KIT

SEAL KIT - cylinder repair, Includes: Ref. 5, 6, 7, 8, 13, 14 and 15

1шт.

1

G34244

CYLINDER

- lift, 3" dia. x 28" stroke, G34244 loader , Includes: Ref. 2 - 17

2шт.

2

G34245

TUBE - cylinder body, G34244 loader lift, Includes: Ref. 3 35.22" L

1шт.

3

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

- tube, G34244 loader lift cylinder

2шт.

G35218

GLAND

ASSEMBLY, G34244 loader lift cylinder, is stamped with cylinder part number, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND AND CENTER RING, G34244 loader lift cylinder, is stamped with cylinder part number

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - outer, piston rod, G34244 loader lift cylinder

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

6

D36969

CUP

SEAL - piston rod, G34244 loader lift cylinder

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland, G34244 loader lift cylinder

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- back-up, G34244 loader lift cylinder

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

10

G34249

ROD

- piston, 1-1/2" dia., G34244 loader lift cylinder, Includes: Ref. 11

1шт.

11

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- piston rod, G34244 loader lift cylinder

2шт.

12

G33747

PISTON

G34244 loader lift cylinder

1шт.

13

G32033

RING

- wear, piston, G34244 loader lift cylinder

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

14

G32034

RING

- seal, piston, G34244 loader lift cylinder

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

15

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - piston, G34244 loader lift cylinder

1шт.

Part of Cylinder Repair Seal Kit P/N G32269

1шт.

16

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), G34244 loader lift cylinder

2шт.

G32269

KIT

- seal, Includes: Ref. 5, 6, 7, 8, 13, 14 and 15, G34244 loader lift cylinder

1шт.

Выбрано товаров: 52
