Запчасти Case 1700-SERIES (236) - T40865 GRAPPLE CYLINDER (35) - HYDRAULIC SYSTEMS

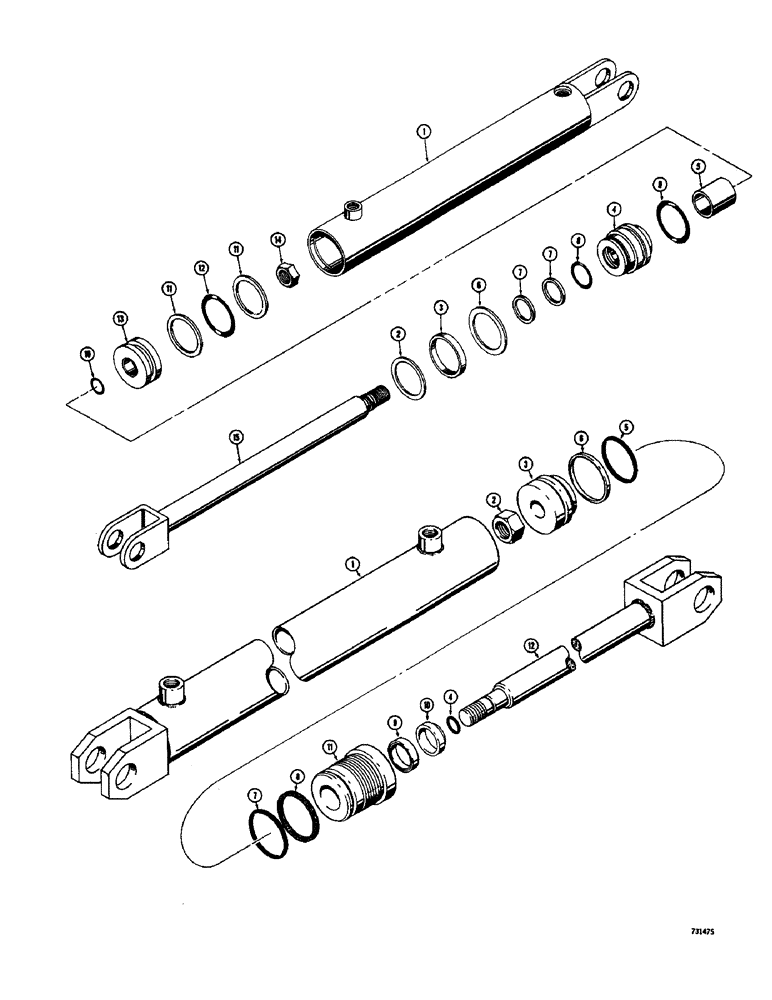

Схема запчастей Case 1700-SERIES - (236) - T40865 GRAPPLE CYLINDER (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

T40865

CYLINDER

- hydraulic grapple (2-1/4" I.D. x 8" stroke) When stock is exhausted, order D61075 for service, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

T24080

SNAP RING,#175, Ext Spiral

RING - lock, spacer

1шт.

3

T24081

SPACER

- gland

1шт.

4

T42253

HEAD

GLAND - packing

1шт.

5

T42254

BUSHING

- bronze, gland

1шт.

T41499

SEAL

KIT - gland packing, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

RING - lock, gland

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - rod

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, rod

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - gland

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, piston

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, piston

1шт.

13

T24084

PISTON

- cylinder

1шт.

14

25-159

JAM NUT,Jam, 9/16"-18, G5

- hex., jam (9/16" x 18 NF)

1шт.

15

T42252

PISTON

ROD - piston (1" dia.)

1шт.

D61075

CYLINDER

- grapple (2" I.D. x 8' stroke), D61075, Includes: Ref. 1 - 12

2шт.

1

D61010

TUBE

- cylinder, D61075 grapple

1шт.

2

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex., jam (3/4" - 16 NF)

1шт.

3

D60996

PISTON

- tube, D61075 grapple cylinder

1шт.

D61006

GASKET KIT

KIT - seal, cylinder, D61075 grapple, Includes: Ref. 4 - 10

1шт.

4

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

SEAL - "O" ring, piston (Inner), D61075 grapple cylinder

1шт.

5

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, piston (Outer), D61075 grapple cylinder

1шт.

6

D60995

RING

- piston, D61075 grapple cylinder

1шт.

7

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O" ring, gland, D61075 grapple cylinder

1шт.

8

A35884

WASHER

- back up

1шт.

9

D60999

WIPER SEAL

WIPER - "U" cup, inner gland, D61075 grapple cylinder

1шт.

10

D60997

WIPER SEAL

WIPER - rod, outer gland, D61075 grapple cylinder

1шт.

11

D61002

GLAND

- cylinder, D61075 grapple

1шт.

12

D61011

ROD

- cylinder (1" O.D.), D61075 grapple

1шт.

Выбрано товаров: 31
