Запчасти Case 1700-SERIES (230) - CYLINDER IDENTIFICATION (35) - HYDRAULIC SYSTEMS

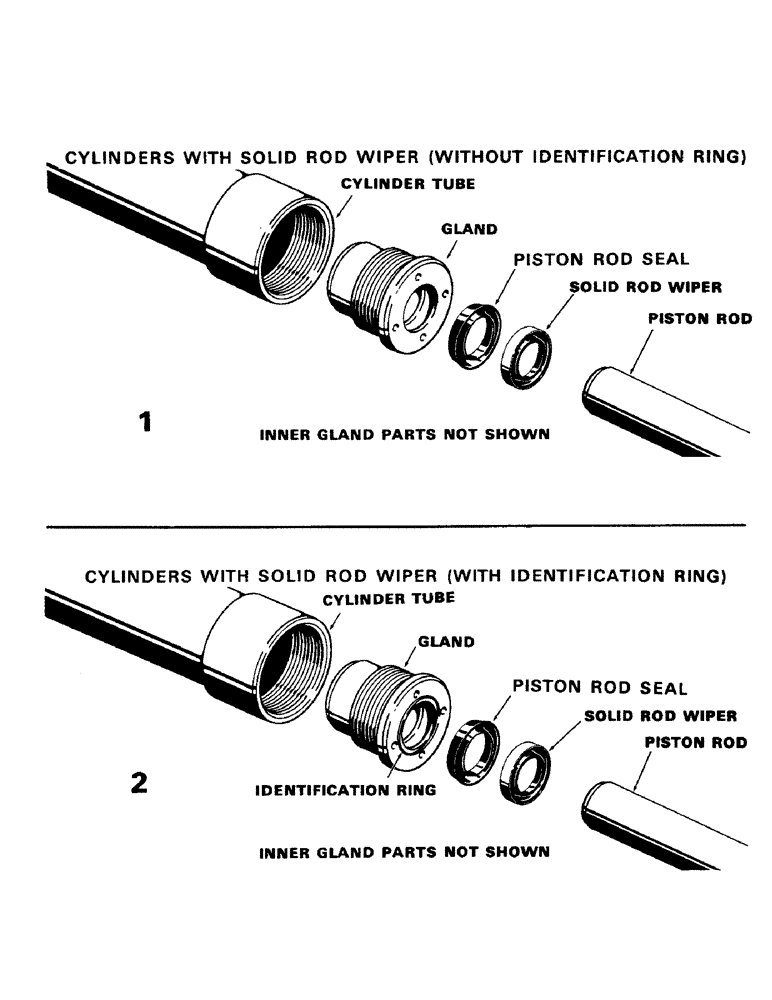

Схема запчастей Case 1700-SERIES - (230) - CYLINDER IDENTIFICATION (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

G32031

CYLINDER

- without gland identification ring, parts list Figure 248, wood tick

1шт.

2

G33751

CYLINDER,Double Acting, 38.1mm Rod, 177.8mm Stroke

- with gland identification ring or gland is stamped with cylinder part number, parts list Figures 248 and 249A, wood tick

1шт.

1

G32270

CYLINDER

- without gland identification ring, parts list Figure 250, scarifier

1шт.

2

G33744

CYLINDER BLOCK

CYLINDER - with gland identification ring, or gland is stamped with cylinder part number, parts list Figures 250 and 252, scarifier

1шт.

T50162

PUSH ROD

CYLINDER - see Figure 232 for identification, parts list Figure 232, caster wheel

1шт.

D54906

CYLINDER

- see Figure 234 for identification, parts list Figure 234, caster wheel

1шт.

T40865

CYLINDER

- see Figure 236 for identification, parts list Figure 236, hydraulic grapple

1шт.

D61075

CYLINDER

- see Figure 236 for identification, parts list Figure 236, hydraulic grapple

1шт.

Выбрано товаров: 8
