Запчасти Case 1700-SERIES (228) - CYLINDER IDENTIFICATION (35) - HYDRAULIC SYSTEMS

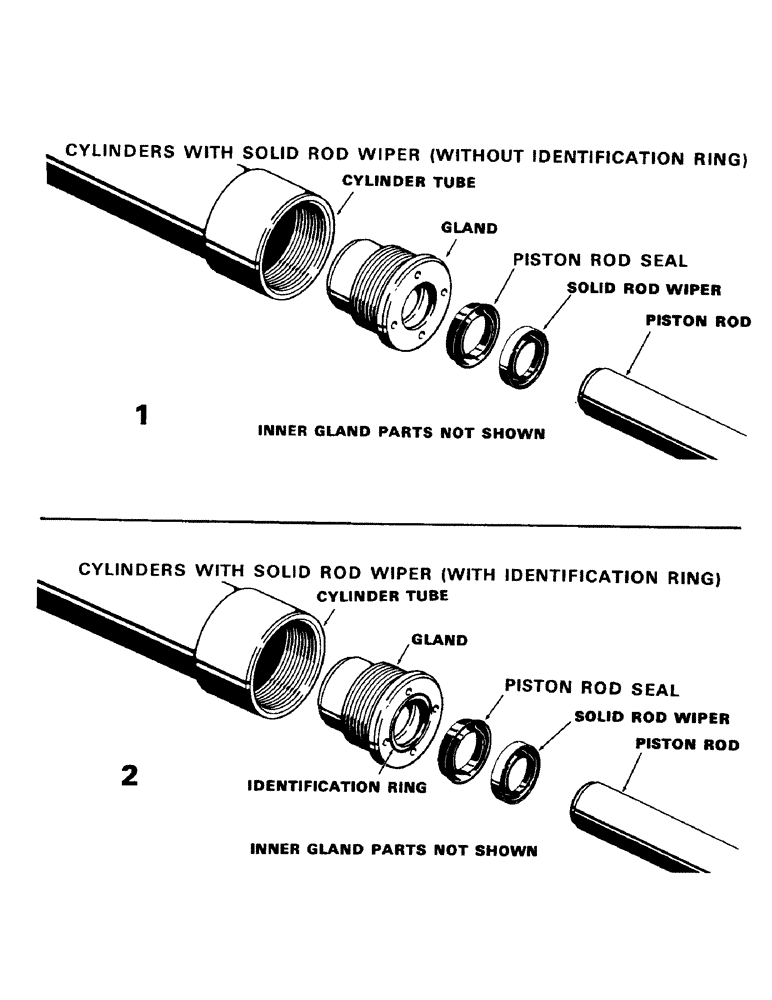

Схема запчастей Case 1700-SERIES - (228) - CYLINDER IDENTIFICATION (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

G32935

HYDRAULIC CYLINDER

CYLINDER - no identification ring on gland, (Parts list Figure 238), loader lift, Serial Range: -9818188

2шт.

When G34244 cylinder services G32935 or G34244 cylinder, also use D16862 kit.

1шт.

2

G33754

CYLINDER

- gland has identification ring, (See Figure 238 for visual identification - parts list Figure 238), loader lift, Serial Range: -9818188

2шт.

When G34244 cylinder services G32935 or G34244 cylinder, also use D16862 kit.

1шт.

2

G34244

CYLINDER

- gland has identification ring, or is stamped with cylinder number, (See page 240 for visual identification - parts list Figure 240), loader lift, Start Serial: 9818188

2шт.

When G34244 cylinder services G32935 or G34244 cylinder, also use D16862 kit.

1шт.

1

G32941

CYLINDER

- without gland identification ring, parts list Figure 242, loader bucket

2шт.

2

G33752

CYLINDER BLOCK

CYLINDER - with gland identification ring, or gland is stamped with cylinder part number, parts list Figure 244, loader bucket

2шт.

1

G32247

CYLINDER

- without gland identification ring, parts list Figure 246, bucket clam

2шт.

2

G33748

CYLINDER

- with gland identification ring, or gland is stamped with cylinder part number, parts list Figures 246 and 247A, bucket clam

2шт.

Выбрано товаров: 10
