Запчасти Case 1700-SERIES (175A) - D66547 TILT CYLINDER AND AUXILIARY CONTROL VALVE, USED TRACTOR SERIAL NO. 9816912 AND AFTER (35) - HYDRAULIC SYSTEMS

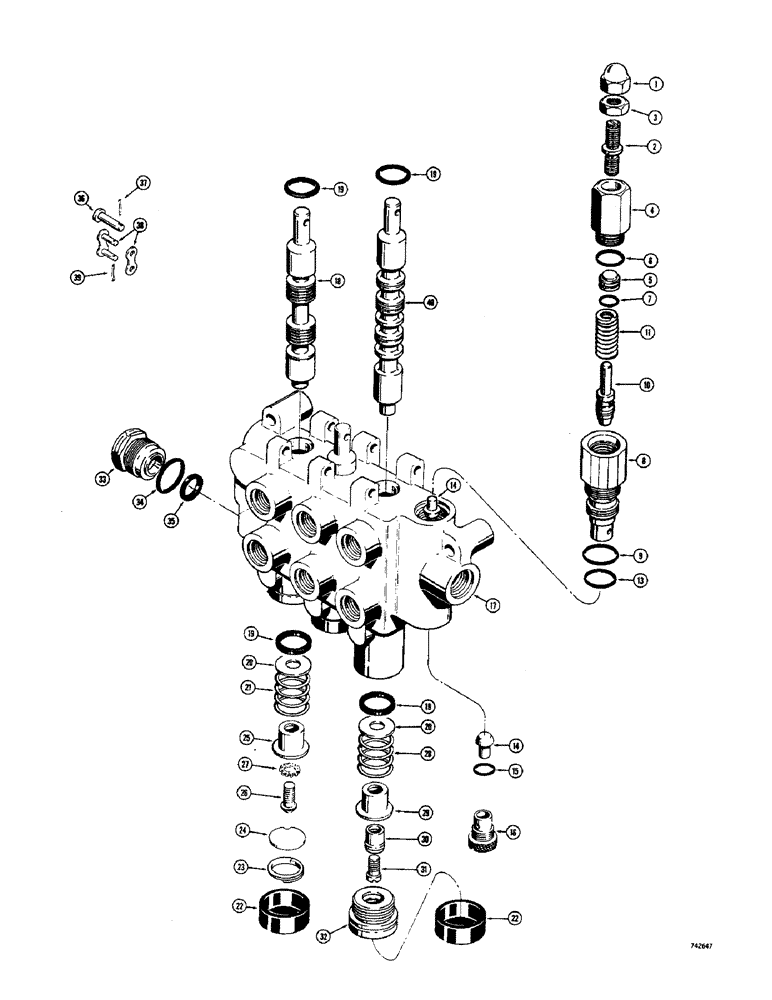

Схема запчастей Case 1700-SERIES - (175A) - D66547 TILT CYLINDER AND AUXILIARY CONTROL VALVE, USED TRACTOR SERIAL NO. 9816912 AND AFTER (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

D66547

VALVE

ASSEMBLY - tilt cylinder and auxiliary control valve, three spool (Gresen SPYE-4-4-4-WSA), Includes: Ref. 1 - 40

1шт.

1

D55941

NUT

- acorn

1шт.

2

D55942

SCREW - adjusting

1шт.

3

D55943

NUT - jam, special

1шт.

4

D55944

CYLINDER END CAP

CAP - adjusting

1шт.

5

D55945

PISTON - relief

1шт.

6

16905

O-RING,0.551" ID x 0.07" Width

- "O" ring, large, top

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Small, top

1шт.

8

D66489

BODY - relief valve

1шт.

9

D39717

O-RING,1.051" ID x 1.191" OD

SEAL - "O" ring, large, bottom

1шт.

10

D39713

VALVE POPPET

POPPET - relief

1шт.

11

D51540

VALVE SPRING

SPRING - relief

1шт.

12

RESERVED

1шт.

13

D39718

O-RING,0.989" ID x 1.129" OD

SEAL - "O" ring, small, bottom

1шт.

14

D28576

VALVE POPPET

POPPET - check (Replaces D66490)

2шт.

15

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

SEAL - "O" ring, plug

1шт.

16

D28574

PLUG

- check

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

18

NSS

NOT SOLD SEPARAT

SPOOL - four way

2шт.

19

T42095

O-RING

SEAL - quad ring

6шт.

20

36650

WASHER

- stop

3шт.

21

36632

SPRING

- centering

2шт.

22

36645

CAP

- rubber (Bonnet)

3шт.

23

36633

LID

- snap

2шт.

24

36631

HOUSING

- stop

2шт.

25

36630

DRAWBAR SUPPORT

- stop

2шт.

26

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- slotted, 1/4" - 20 NC x 1/2"

2шт.

27

36628

LOCK WASHER

- lock, external

2шт.

28

36652

COLLAR

SPRING - centering

1шт.

29

36650

WASHER

COLLAR - stop

1шт.

30

D50914

PLUNGER

DETENT - spool

1шт.

31

D50913

BOLT,Shoulder, 5/16" - 18 x 0.718"

- shoulder

1шт.

32

D66491

DETENT

ASSEMBLY

1шт.

33

D54293

SLEEVE CYLINDER

SLEEVE - power beyond

1шт.

34

D48086

SEAL,1.358" ID

SEAL - "O" ring

1шт.

35

D53169

RING

SEAL - quad ring

1шт.

36

36627

SEAT

PIN - handle

3шт.

37

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

3шт.

38

36640

DRAG LINK

LINK ASSEMBLY - handle

3шт.

39

132-13

PIN

- cotter, 1/16" x 1-1/2"

3шт.

40

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

Выбрано товаров: 41
