Запчасти Case 1700-SERIES (174) - D55019 TILT CYL. & AUX. CONTROL VALVE, USED SN. 9816912 & AFT., SERVICE REPLACEMENT FOR ALL VALVES (35) - HYDRAULIC SYSTEMS

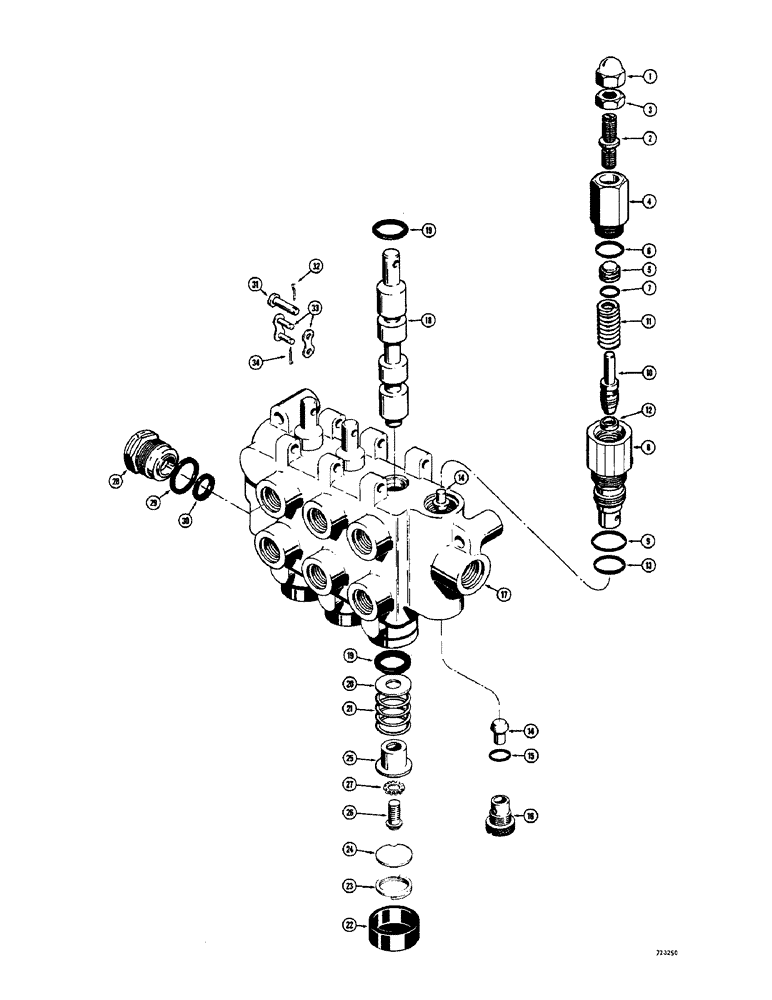

Схема запчастей Case 1700-SERIES - (174) - D55019 TILT CYL. & AUX. CONTROL VALVE, USED SN. 9816912 & AFT., SERVICE REPLACEMENT FOR ALL VALVES (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

D55019

VALVE

ASSEMBLY - tilt cylinder and auxiliary, three spool (Gresen SPYE 4-4-4), Includes: Ref. 1 - 34

1шт.

1

D55941

NUT

- acorn

1шт.

2

D55942

SCREW - adjustable

1шт.

3

D55943

NUT - jam, special

1шт.

4

D55944

CYLINDER END CAP

CAP - adjustable

1шт.

5

D55945

PISTON - relief

1шт.

6

16905

O-RING,0.551" ID x 0.07" Width

- "O" ring, large top

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Small, top

1шт.

8

D51541

BODY

- relief valve

1шт.

9

D39717

O-RING,1.051" ID x 1.191" OD

SEAL - "O" ring, large bottom

1шт.

10

D66490

VALVE POPPET

POPPET - relief (Replaces D39713)

1шт.

11

D51540

VALVE SPRING

SPRING - relief

1шт.

12

D39714

RING

SEAL - relief valve poppet

1шт.

13

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

SEAL - "O" ring, small bottom

1шт.

14

D28576

VALVE POPPET

POPPET - check

2шт.

15

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

SEAL - "O" ring, plug

1шт.

16

D28574

PLUG

- check

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

18

NSS

NOT SOLD SEPARAT

SPOOL - four way

3шт.

19

T42095

O-RING

SEAL - quad ring

6шт.

20

36650

WASHER

- stop

3шт.

21

36632

SPRING

- centering

3шт.

22

36645

CAP

- rubber (Bonnet)

3шт.

23

36633

LID

- snap

3шт.

24

663023R1

CAP

- stop

3шт.

25

CAS36630

COLLAR

- stop

3шт.

26

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- slotted, 1/4" - 20 NC x 1/2"

3шт.

27

36628

LOCK WASHER

- lock, external

3шт.

28

D54293

SLEEVE CYLINDER

SLEEVE - power beyond

1шт.

29

D48086

SEAL,1.358" ID

SEAL - "O" ring

1шт.

30

D53169

RING

SEAL - quad ring

1шт.

31

36627

SEAT

PIN - handle

3шт.

32

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

3шт.

33

36640

DRAG LINK

LINK ASSEMBLY - handle

3шт.

34

132-13

PIN

- cotter, 1/16" x 1-1/2"

3шт.

Выбрано товаров: 35
