Запчасти Case 1700-SERIES (172) - D53433 TILT CYLINDER AND AUXILIARY CONTROL VALVE, USED BEFORE SERIAL NO. 9816912 (35) - HYDRAULIC SYSTEMS

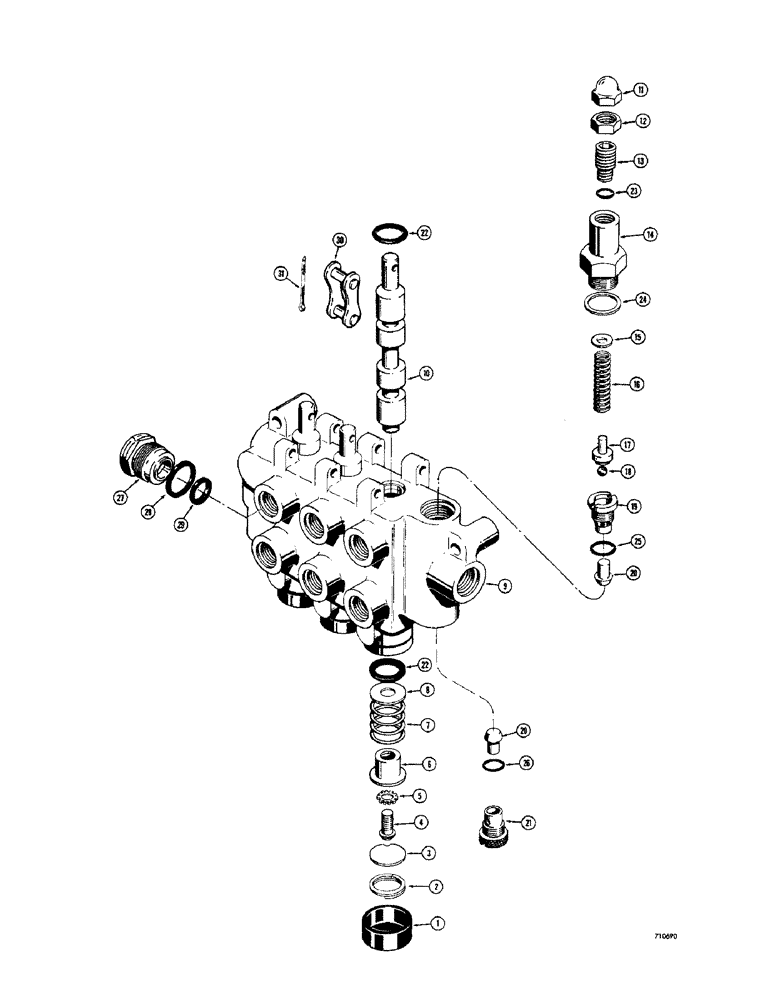

Схема запчастей Case 1700-SERIES - (172) - D53433 TILT CYLINDER AND AUXILIARY CONTROL VALVE, USED BEFORE SERIAL NO. 9816912 (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

D53433

VALVE

ASSEMBLY - tilt cylinder and auxiliary, three spool (Gresen #SPYE-4-4-4-HP), Includes: Ref. 1 - 30

1шт.

1

36645

CAP

BONNET - rubber

3шт.

2

36633

LID

- snap, stop disc

3шт.

3

36631

HOUSING

- stop

3шт.

4

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

BOLT - spring assmebly

3шт.

5

36628

LOCK WASHER

LOCKWASHER - centering spring

3шт.

6

36630

DRAWBAR SUPPORT

- stop

3шт.

7

36632

SPRING

- centering

3шт.

8

36650

WASHER

- stop

3шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - valve

3шт.

11

129-877

NUT,Crown, 3/4"-10

CUP - acorn (Replaces 34109)

1шт.

12

129-167

JAM NUT,Jam, 5/8"-18, G5

- jam, main relief (Replaces 34111)

1шт.

13

34110

ADJUSTMENT SCREW

- adjustable

1шт.

14

34113

BODY

- relief valve

1шт.

15

36660

WASHER

- relief spring

1шт.

16

34114

VALVE, PRESSURE RELI

SPRING - relief

1шт.

17

CAS34120

BUSHING

SPACER - ball seat spring

1шт.

18

211-12

BALL,7/16 Dia

- relief valve

1шт.

19

D46222

SEAT

- relief valve

1шт.

20

D28576

VALVE POPPET

POPPET - check

2шт.

21

D28574

PLUG

- check

1шт.

T42174

GASKET KIT

KIT - seal, Includes: Ref. 22 - 26

1шт.

22

T42095

O-RING

SEAL - spool

6шт.

23

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

SEAL - adjustable screw

1шт.

24

34115

GASKET

- relief valve

1шт.

26

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

SEAL - "O" ring, check plug

1шт.

27

D54293

SLEEVE CYLINDER

SLEEVE - power beyond

1шт.

28

D48086

SEAL,1.358" ID

SEAL - square section

1шт.

29

D53169

RING

SEAL - quad

1шт.

30

36640

DRAG LINK

LINK ASSEMBLY - handle

3шт.

31

132-13

PIN

- cotter (1/16" dia. x 1-1/2")

3шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, relief valve seat

1шт.

Выбрано товаров: 33
