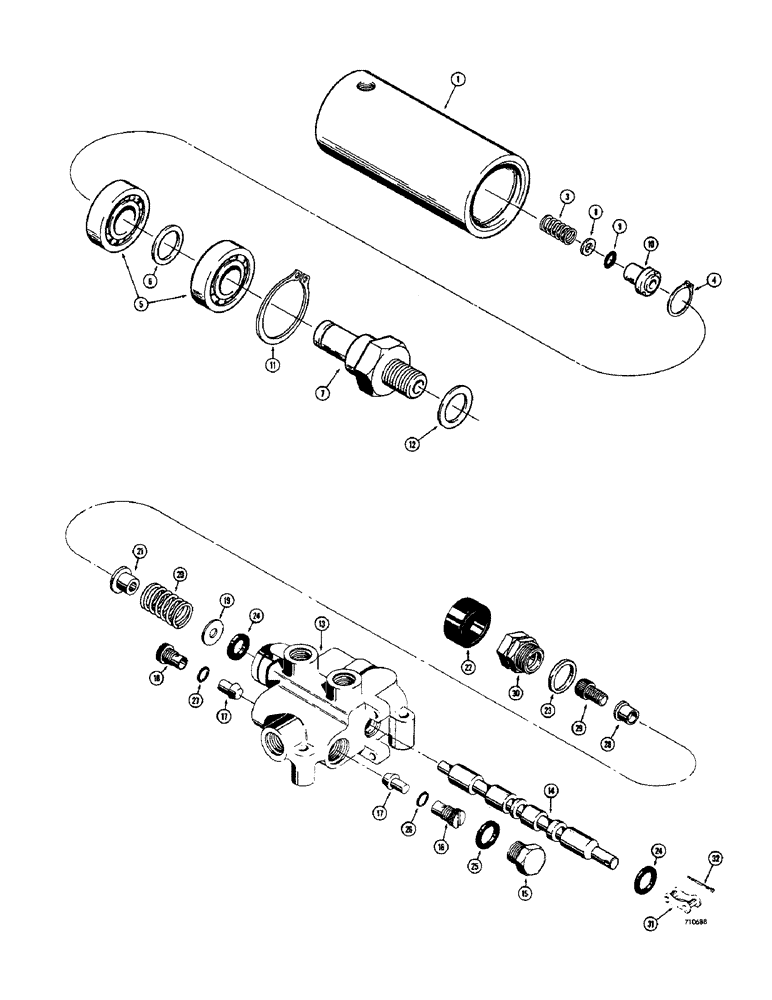

Запчасти Case 1700-SERIES (170) - ROTARY COUPLING (35) - HYDRAULIC SYSTEMS

T42355

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - rotary, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - rotary coupling, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

PIN - housing (Not illustrated)

2шт.

3

T41961

VALVE SPRING

SPRING - coil

1шт.

4

T41957

RING

SNAP RING - small

1шт.

5

T41956

BALL BEARING,0.315" ID x 0.8661" OD x 0.2756"

BEARING - ball type

2шт.

6

T41962

BUSHING

SPACER - bearing

1шт.

7

T41954

ROTOR

- coupling

1шт.

T42357

KIT

- seal repair, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

GUIDE - seal

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - "O" ring

1шт.

10

T42356

SEAL

- floating

1шт.

11

49481

SNAP RING,0.866", Int, #87

Ring, Snap, 0.866", Int, #87

1шт.

12

T41955

GASKET

- rotor

1шт.

T40137

VALVE

ASSEMBLY - lift cylinder, control, Includes: Ref. 13 - 32

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - valve, lift cylinder control

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - valve, lift cylinder control

1шт.

15

D23724

CYLINDER END CAP

CAP - relief, lift cylinder control valve

1шт.

16

D28839

PLUG

- check guide, lift cylinder control valve

1шт.

17

D28576

VALVE POPPET

POPPET - check, lift cylinder control valve

2шт.

18

D28574

PLUG

- check, lift cylinder control valve

1шт.

19

36650

WASHER

- stop

1шт.

20

D32602

VALVE SPRING

SPRING - float centering, lift cylinder control valve

1шт.

21

36652

COLLAR

- float spring, lift cylinder control valve

1шт.

22

36645

CAP

BONNET - rubber, lift cylinder control valve

1шт.

23

NLS

NO LONGER SERVICED

GASKET - float detent cap, lift cylinder control valve

1шт.

T42094

SEAL KIT

KIT - seal, lift cylinder control valve, Includes: Ref. 24 - 27

1шт.

24

T42095

O-RING

SEAL - spool, lift cylinder control valve

2шт.

25

34115

GASKET

- relief cap, lift cylinder control valve

1шт.

26

D23928

O-RING

SEAL - "O" ring, relief valve seat, lift cylinder control

1шт.

27

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

SEAL - "O" ring, check plug, lift cylinder control valve

1шт.

T42098

ASSEMBLY

KIT - float detent, lift cylinder control valve, Includes: Ref. 28 - 30

1шт.

28

NSS

NOT SOLD SEPARAT

PLUNGER - detent, lift cylinder control valve

1шт.

29

D50913

BOLT,Shoulder, 5/16" - 18 x 0.718"

- shoulder

1шт.

30

NSS

NOT SOLD SEPARAT

CAP - detent, sub assembly, lift cylinder control valve

1шт.

31

36640

DRAG LINK

LINK ASSEMBLY - handle, lift cylinder control valve

1шт.

32

132-13

PIN

- cotter (1/16" dia. x 1-1/2"), lift cylinder control valve

1шт.
