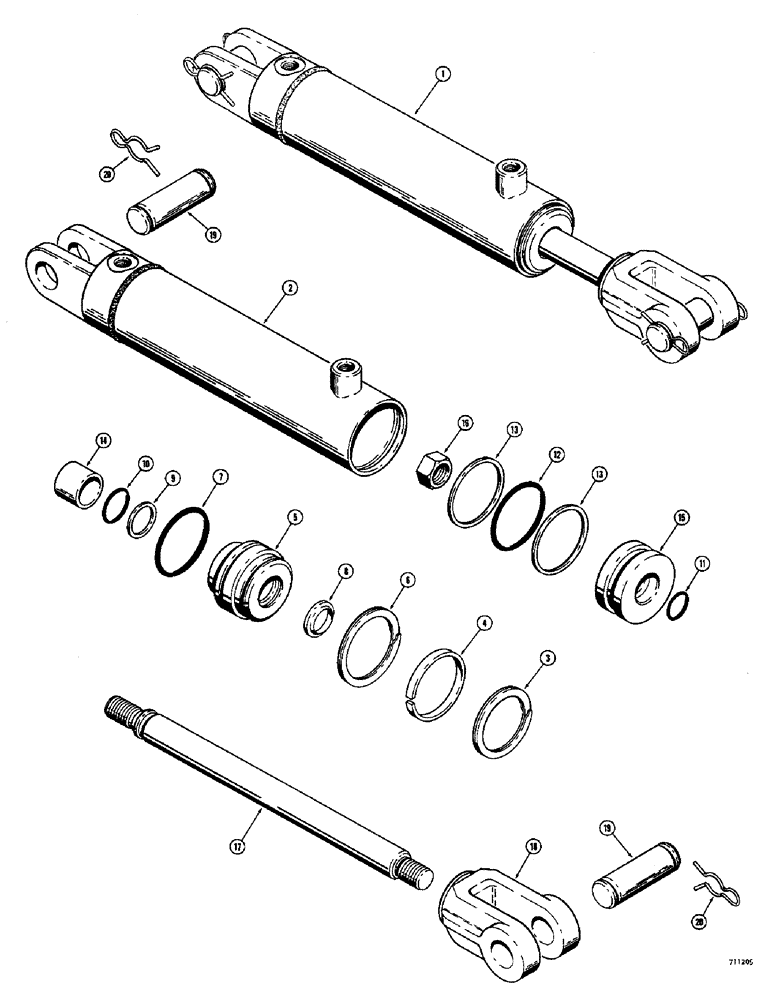

Запчасти Case 1530 (152) - D54906 CASTER WHEEL CYLINDER, 2-1/2" I.D. CYLINDER WITH 8" STROKE AND 1" O.D. ROD (09) - CHASSIS/ATTACHMENTS

1

D54906

CYLINDER

- caster wheel, Includes: Ref. 2 - 20

1шт.

2

D54908

TUBE - cylinder

1шт.

3

D54917

RING - snap, gland retaining #225, 2.153", Ext Spiral

1шт.

4

D54915

RING - backup, gland seal

1шт.

5

D55813

GLAND - cylinder

1шт.

D54912

KIT

- cylinder packing, Includes: Ref. 6 - 13

1шт.

6

NSS

NOT SOLD SEPARAT

RING - locking

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, gland (Large)

1шт.

8

D54918

WIPER - rod

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup, gland seal

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, gland (Small)

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, piston rod

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, piston

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, piston seal

2шт.

14

T42254

BUSHING

- gland

1шт.

15

D54909

PISTON - packing

1шт.

16

231-46112

LOCK NUT,3/4"-16, GB

NUT - jam (3/4" - 16 NC)

1шт.

17

D54911

ROD - piston (1" O.D.)

1шт.

18

D54910

CLEVIS - rod

1шт.

19

D54919

PIN - clevis

2шт.

20

D54920

PIN - hair

4шт.
