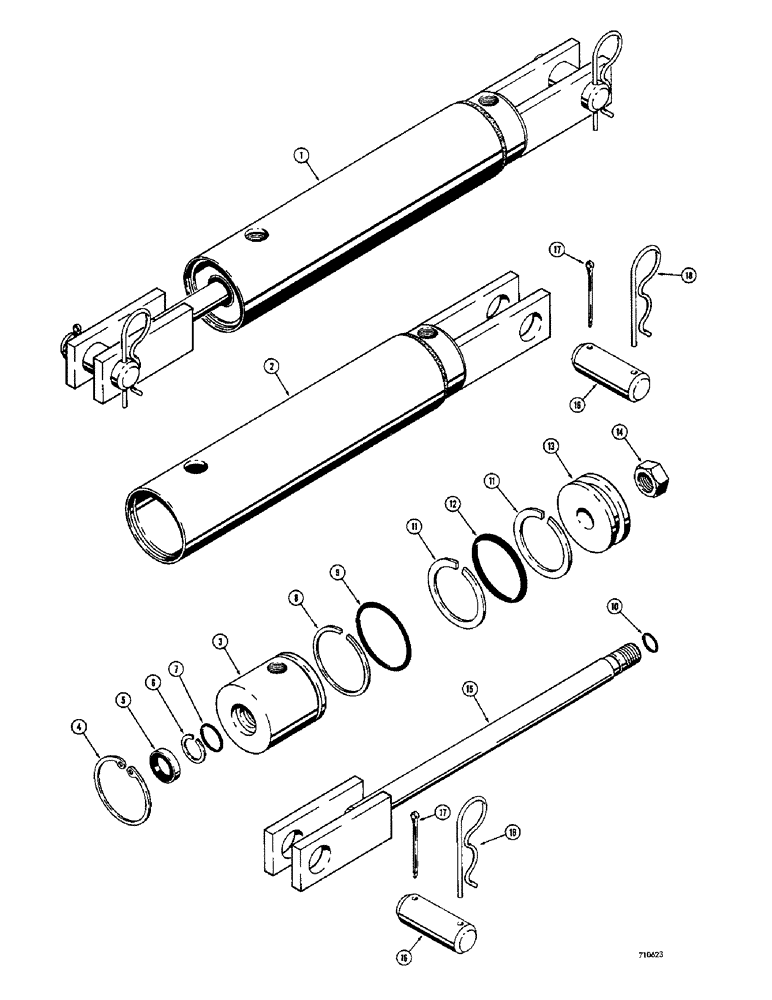

Запчасти Case 1530 (150) - T50162 CASTER WHEEL CYLINDER, 2-1/2" I.D. CYLINDER WITH 8" STROKE AND 7/8" O.D. ROD (09) - CHASSIS/ATTACHMENTS

1

T50162

PUSH ROD

CYLINDER ASSEMBLY - caster wheel, Includes: Ref. 2 - 18

1шт.

2

T50156

TUBE - cylinder

1шт.

3

T38193

GLAND - packing

1шт.

4

70742

WASHER

2.50", Int, #250, gland

1шт.

5

T38234

WIPER SEAL

WIPER - rod, outer

1шт.

6

T38233

BACK-UP RING,0.891" ID x 1.127" OD x 0.05"

- backup, rod seal

1шт.

7

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

SEAL - rod

1шт.

8

T38236

BACK-UP RING

RING - backup, gland seal

1шт.

9

T38237

O-RING,0.103" Thk x 2.3" ID, -141, Cl 5, 75 Duro

SEAL - backup, gland

1шт.

10

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

SEAL - "O" ring, piston and rod

1шт.

11

A35810

RING

- backup, piston

2шт.

12

A30971

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

SEAL - piston

1шт.

13

T50160

PISTON - cylinder

1шт.

14

25-1412

JAM NUT,Jam, 3/4"-10, G5

- hex., jam (5/8" - 11 NC)

1шт.

15

T50155

ROD - piston (7/8" dia.)

1шт.

16

T50163

PIN - ram

2шт.

17

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

18

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), , Hair Int, 7/16" x .177"

2шт.
