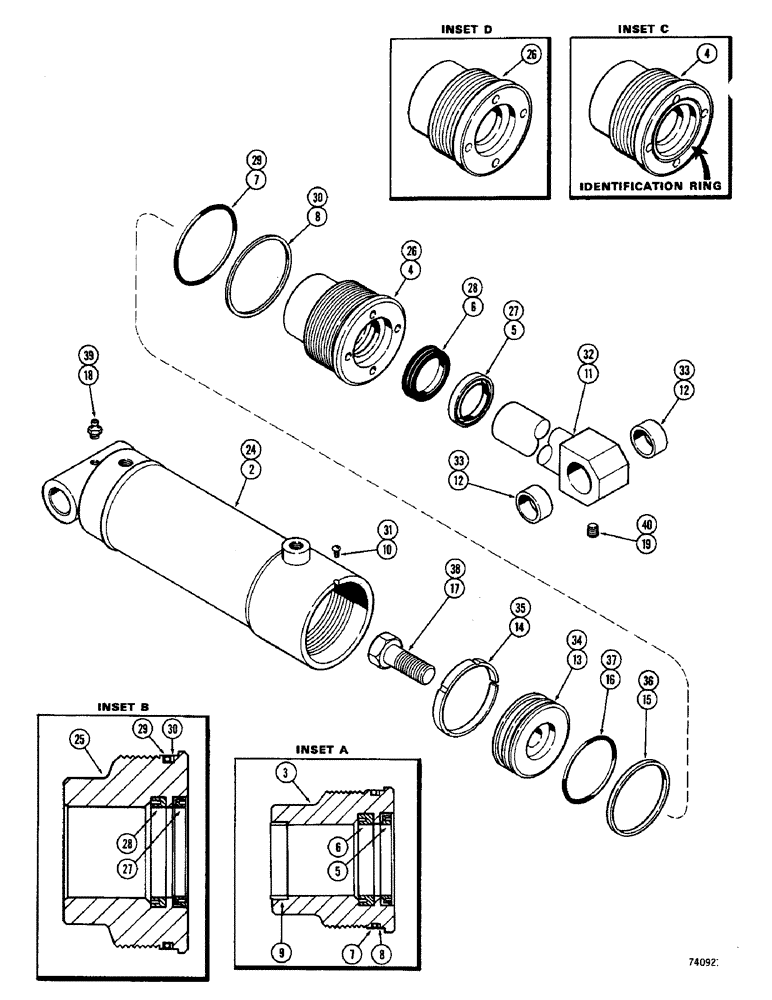

Запчасти Case 1530 (146) - WOOD TICK CYLINDER (09) - CHASSIS/ATTACHMENTS

1

G33751

CYLINDER,Double Acting, 38.1mm Rod, 177.8mm Stroke

- wood tick, 3" dia. x 7" stroke (Not shown), Includes: Ref. 2 - 19

1шт.

2

G32061

HYD TUBE,13.57" L

TUBE - cylinder body

1шт.

3

G33485

GLAND

ASSY - w/inner wiper (Repair gland only) (See inset A). has identification ring, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring) (See inset C)

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

6

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

9

D27706

WIPER SEAL

WIPER - piston rod, inner (Not used w/prod. cyl.) (See inset A)

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

G33749

ROD

ASSY - (1-1/2" dia.) (w/identification ring), Includes: Ref. 12

1шт.

12

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- piston rod

2шт.

13

G33747

PISTON

- (w/identification ring)

1шт.

14

G32033

RING

- wear, piston

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

15

G32034

RING

- seal, piston (2-7/8 x 3 x 5/32" teflon)

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

16

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - piston (2-1/2 x 2-3/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

17

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

Piston Hex, 3/4-16 x 2", G8, Full Thd

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

19

221-849

PLUG,Hex Soc, 1/8"-27

- rod end (1/8" P.T., sckt. hd.)

1шт.

G32269

KIT

SEAL KIT - cylinder repair, Includes: Ref. 5, 6, 7, 8, 14, 15 and 16

1шт.

20

RESERVED

1шт.

21

RESERVED

1шт.

22

RESERVED

1шт.

23

G32031

CYLINDER

- wood tick, 3" dia. x 7" stroke (Not shown), Includes: Ref. 24 - 40

1шт.

24

G32061

HYD TUBE,13.57" L

TUBE - cylinder body

1шт.

25

G32797

GLAND

ASSY - (See inset B), without identification ring, Includes: Ref. 26 - 30

1шт.

26

NSS

NOT SOLD SEPARAT

GLAND - (w/o identification ring) (See inset D)

1шт.

27

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

28

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

29

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

30

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

31

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

32

G32059

PISTON ROD

ROD ASSY - (1-1/2" dia.) (w/o identification ring), Includes: Ref. 33

1шт.

33

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- piston rod

2шт.

34

G32032

PISTON

- (w/o identification ring)

1шт.

35

G32033

RING

- wear, piston

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

36

G32034

RING

- seal, piston 92-7/8 x 3 x 5/32" teflon)

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

37

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - piston (2-1/2 x 2-3/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

38

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

Piston Hex, 3/4-16 x 2", G8, Full Thd

1шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

40

221-849

PLUG,Hex Soc, 1/8"-27

- rod end (1/8" P.T., sckt. hd.)

1шт.

G32269

KIT

SEAL KIT - cylinder repair, Includes: Ref. 27, 28, 29, 35, 36 and 37

1шт.
