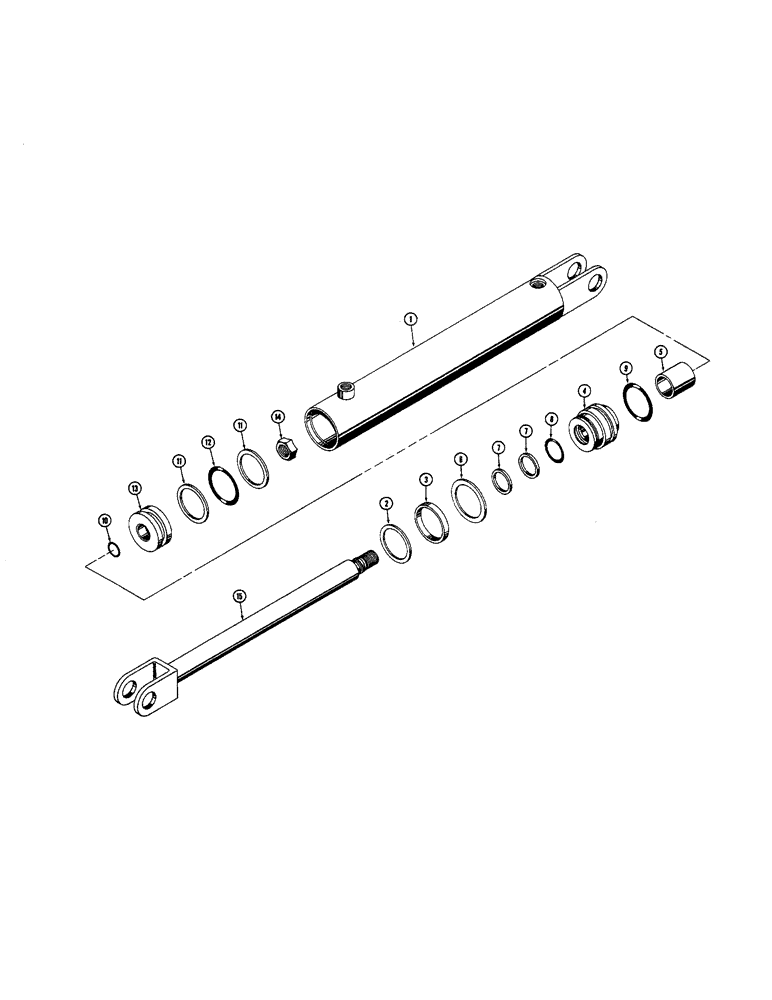

Запчасти Case 1530 (144) - T40865 GRAPPLE CYLINDER (09) - CHASSIS/ATTACHMENTS

T40865

CYLINDER

- hydraulic grapple (2-1/4" I.D. x 8" stroke) when stock is exhausted, order D61075 for service, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

T24080

SNAP RING,#175, Ext Spiral

RING - lock, spacer

1шт.

3

T24081

SPACER

- gland

1шт.

4

T42253

HEAD

GLAND - packing

1шт.

5

T42254

BUSHING

- bronze, gland

1шт.

T41499

SEAL

KIT - gland packing, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

RING - lock, gland

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - rod

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, rod

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - gland

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, piston

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, piston

1шт.

13

T24084

PISTON

- cylinder

1шт.

14

25-159

JAM NUT,Jam, 9/16"-18, G5

- hex., jam (9/16" x 18 NF)

1шт.

15

T42252

PISTON

ROD - piston (1" dia.)

1шт.
