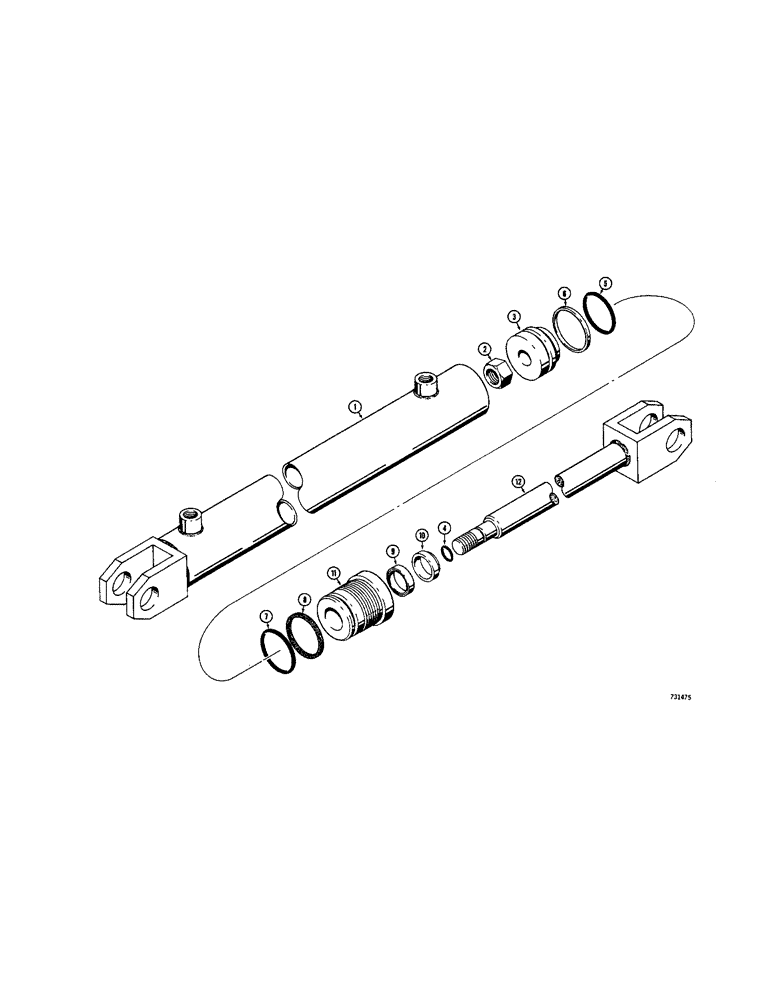

Запчасти Case 1530 (144[1]) - D61075 GRAPPLE CYLINDER (09) - CHASSIS/ATTACHMENTS

D61075

CYLINDER

- grapple (2" I.D. x 8" stroke), Includes: Ref. 1 - 12

2шт.

1

D61010

TUBE

- cylinder

1шт.

2

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex., jam (3/4" - 16 NF)

1шт.

3

D60996

PISTON

- tube

1шт.

D61006

GASKET KIT

KIT - seal, cylinder, Includes: Ref. 4 - 10

1шт.

4

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

SEAL - "O" ring, piston (Inner)

1шт.

5

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, piston (Outer)

1шт.

6

D60995

RING

- piston

1шт.

7

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

SEAL - "O" ring, gland

1шт.

8

A35884

WASHER

- back up

1шт.

9

D60999

WIPER SEAL

WIPER - "U" cup, inner gland

1шт.

10

D60997

WIPER SEAL

WIPER - rod, outer gland

1шт.

11

D61002

GLAND

- cylinder

1шт.

12

D61011

ROD

- cylinder (1" O.D.)

1шт.
