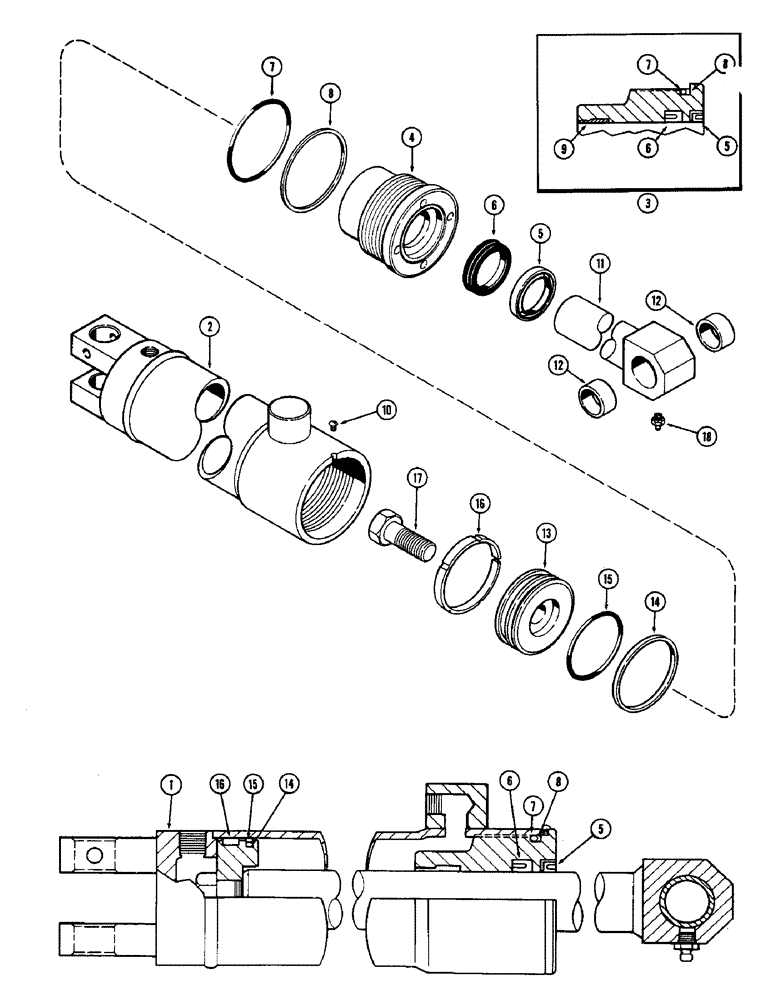

Запчасти Case 1530 (140) - G33752 BUCKET CYLINDER, USED ON MODELS WITH SELF LEVELING FEATURE (09) - CHASSIS/ATTACHMENTS

1

G33752

CYLINDER BLOCK

CYLINDER - bucket, 3" dia. x 14-1/4" stroke (Not shown), Includes: Ref. 2 - 18

2шт.

2

L1232971

SCREW,Hex Skt Hd, M12 x 30mm, Cl 10.9

TUBE - cylinder body

1шт.

3

G33485

GLAND

ASSY, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston. rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

5

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 13/32")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- "O" ring back-up

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

9

D27706

WIPER SEAL

WIPER - piston rod, inner (if used) (this wiper used only w/ repair gland G33485)

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

11

G33753

ROD

ASSY - piston (1-1/2" dia.), Includes: Ref. 12

1шт.

12

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- piston rod

2шт.

13

G33747

PISTON

- cylinder

1шт.

14

G32034

RING

- seal, piston (2-7/8 x 3 x 5/32" teflon)

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

15

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - piston (2-1/2 x 2-3/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

16

G32033

RING

- wear, piston

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

17

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

Piston Hex, 3/4-16 x 2", G8, Full Thd

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

G32269

KIT

SEAL KIT - cylinder repair, Includes: Ref. 5, 7, 8, 14, 15 and 16

1шт.
