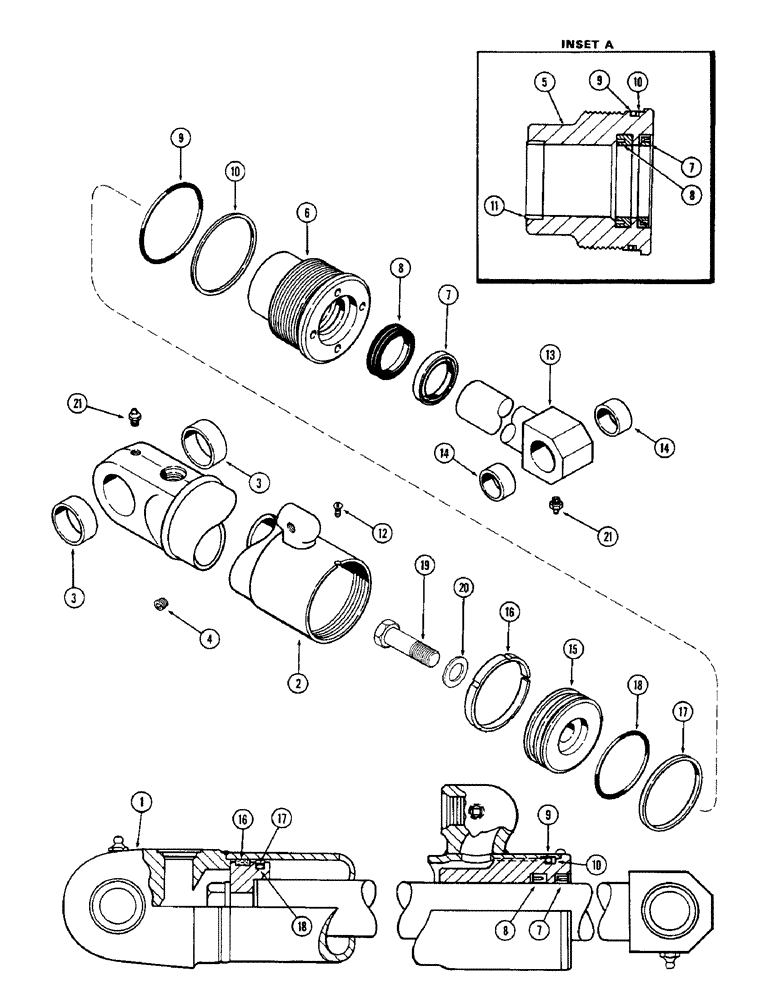

Запчасти Case 1530 (136) - G34273 LIFT CYLINDER USED ON ALL MODELS USED SERIAL NO. 9818251 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

G34273

CYLINDER - lift, 2-1/2" dia. x 28-3/8" stroke, Includes: Ref. 2 - 21

2шт.

2

G34274

TUBE ASSY - cylinder body, Includes: Ref. 3 2.497" ID x 35.5" L

1шт.

3

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

- tube

2шт.

4

221-11

PLUG,Sq Hd, 1/8"-27

- tube spud port (1/8" P.T., sq. hd.)

1шт.

5

G33487

GLAND

ASSY - w/inner wiper (Repair gland only) (See inset A), Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G34277

1шт.

8

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G34277

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - gland (2-1/2 x 2-3/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G34277

1шт.

10

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of cylinder repair seal kit P/N G34277

1шт.

11

D27706

WIPER SEAL

WIPER - piston rod, inner (Not used w/production cylinder)

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

13

G34249

ROD

ASSY - piston (1-1/2" dia.), Includes: Ref. 14

1шт.

14

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- piston rod

2шт.

15

S220090

PISTON

1шт.

16

G33139

RING

- wear, piston

1шт.

Part of cylinder repair seal kit P/N G34277

1шт.

17

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

- seal, piston (2-3/8 x 2-1/2 x 5/32" teflon)

1шт.

Part of cylinder repair seal kit P/N G34277

1шт.

18

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

"O" RING - piston (2 x 2-1/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G34277

1шт.

19

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

Piston Hex, 3/4-16 x 2", G8, Full Thd

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- piston bolt (7/8 x 1-3/8 x 9/64")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

2шт.

G34277

KIT

SEAL KIT - cylinder repair, Includes: Ref. 7, 8, 9, 10, 16, 17 and 18

1шт.
