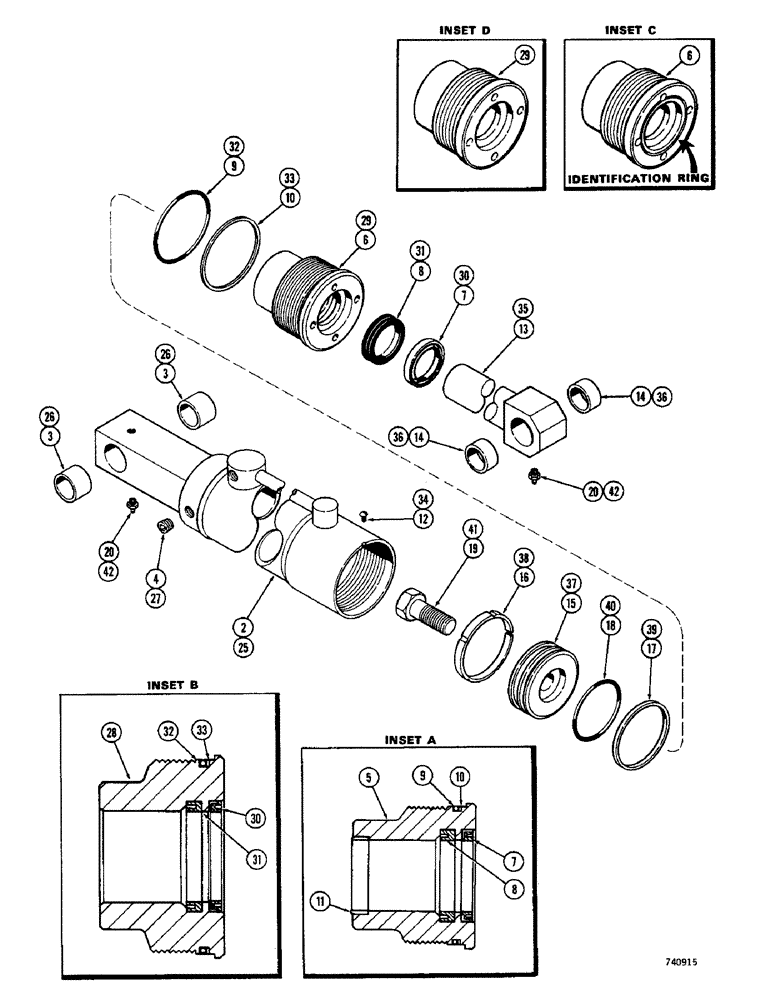

Запчасти Case 1530 (132) - LIFT CYLINDER USED ON MODELS WITH SELF LEVELING FEATURE, USED BEFORE TRACTOR SERIAL NO. 9818251 (09) - CHASSIS/ATTACHMENTS

1

G33754

CYLINDER

- lift, 3" dia. x 28" stroke (Not shown), Includes: Ref. 2 - 20

2шт.

2

G32936

TUBE,2.996" ID x 38.03" L

ASSY - cylinder body, Includes: Ref. 3

1шт.

3

G32938

BUSHING

- tube

2шт.

4

221-663

PLUG,Hex Hd, 3/8"-18

- tube (3/8" P.T., sckt. hd.)

2шт.

5

G33485

GLAND

ASSY - w/inner wiper (Repair gland only) (See inset A), has identification ring, Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - (w/identification ring) (See inset C)

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

8

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

11

D27706

WIPER SEAL

WIPER - piston rod, inner (Not used w/prod. cyl.) (See inset A)

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

13

G33755

ROD

ASSY - (1-1/2" dia.) (w/identification ring), Includes: Ref. 14

1шт.

14

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- piston rod

2шт.

15

G33747

PISTON

- (w/identification ring)

1шт.

16

G32033

RING

- wear, piston

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

17

G32034

RING

- seal, piston (2-7/8 x 3 x 5/32" teflon)

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

18

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - piston (2-1/2 x 2-3/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

19

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

Piston Hex, 3/4-16 x 2", G8, Full Thd

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

2шт.

G32269

KIT

SEAL KIT - cylinder repair, Includes: Ref. 7, 8, 9, 10, 16, 17 and 18

1шт.

21

RESERVED

1шт.

22

RESERVED

1шт.

23

RESERVED

1шт.

24

G32935

HYDRAULIC CYLINDER

CYLINDER - lift, 3" dia. x 28" stroke (Not shown), Includes: Ref. 25 - 42

2шт.

25

G32936

TUBE,2.996" ID x 38.03" L

ASSY - cylinder body, Includes: Ref. 26

1шт.

26

G32938

BUSHING

- tube

2шт.

27

221-663

PLUG,Hex Hd, 3/8"-18

- tube (3/8" P.T., sckt. hd.)

2шт.

28

G32797

GLAND

ASSY - (See inset B), without identification ring, Includes: Ref. 29 - 33

1шт.

29

NSS

NOT SOLD SEPARAT

GLAND - (w/o identification ring) (See inset D)

1шт.

30

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

31

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

32

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - gland (3 x 3-1/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

33

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

34

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

35

G32940

ROD ASSY.

ROD ASSY - (1-1/2" dia.) (w/o identification ring) (Order 1- G33485 gland assy., 1-G33755 rod assy., & 1-G33747 piston) (See ref. 5, 13 & 15), Includes: Ref. 36

1шт.

36

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

- piston rod

2шт.

37

G32032

PISTON

- (w/out identification ring)

1шт.

38

32033

GUARD

RING - wear, piston, G32935 lift cylinder

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

39

G32034

RING

- seal, piston (2-7/8 x 3 x 5/32" teflon)

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

40

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - piston (2-1/2 x 2-3/4 x 1/8")

1шт.

Part of cylinder repair seal kit P/N G32269

1шт.

41

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

Piston Hex, 3/4-16 x 2", G8, Full Thd

1шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

2шт.

G32269

KIT

SEAL KIT - cylinder repair, Includes: Ref. 30, 31, 32, 33, 38, 39 and 40

1шт.
