Запчасти Case 1530 (122) - HYDRAULIC MOTOR, (ANGLE BROOMS) (09) - CHASSIS/ATTACHMENTS

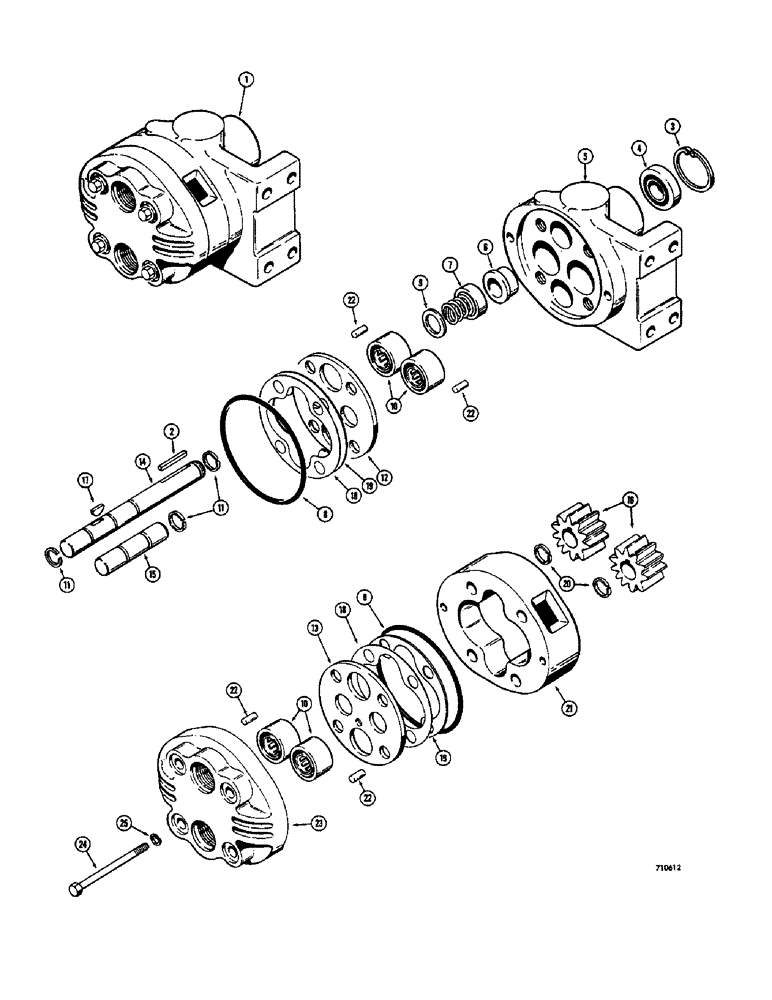

Схема запчастей Case 1530 - (122) - HYDRAULIC MOTOR, (ANGLE BROOMS) (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

T41963

MOTOR, ELECTRIC

MOTOR - hydraulic (Hydreco #2M028B2B1), Includes: Ref. 2 - 25

1шт.

2

P2712S

KEY - shaft

1шт.

3

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

4

D53701

BEARING - ball type, front cover

1шт.

5

D53698

COVER - front, mounting

1шт.

D53628

SEAL

KIT - seal, Includes: Ref. 6 - 8

1шт.

6

17244

SEAT

SEAL - oil

1шт.

7

17259

SEAL ASSY.

SEAL - shaft, driven

1шт.

8

17254

O-RING

SEAL - "O" ring

2шт.

9

17256

ROD

WASHER - special

1шт.

10

D53702

BEARING

- roller type

4шт.

11

17249

RING, SNAP

RING - snap

3шт.

D53683

KIT

- wear plate, Includes: Ref. 12 - 13

1шт.

12

17245

PLATE

- wear, shaft end

1шт.

13

D32078

PLATE

- wear, closed end

1шт.

14

D53700

SHAFT

- drive

1шт.

15

17233

SHAFT - driven

1шт.

D53681

X

KIT - gear, Includes: Ref. 16 - 20

1шт.

16

17231

GEAR WHEEL

GEAR - drive and driven

2шт.

17

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

18

17248

SHIM

- .001" thick (Amber)

1шт.

19

D32079

SHIM,.002" Thk

(Red) .002" Thk

1шт.

20

17249

RING, SNAP

RING - snap

2шт.

21

17240

BRACKET

HOUSING - gear

1шт.

22

17258

AXLE PIN

PIN - dowel

4шт.

23

D53699

COVER - rear

1шт.

24

28-756

HHCS - 7/16" - 20 NF x 3-1/2"

4шт.

25

17260

LEVER

WASHER - special, lock

4шт.

Выбрано товаров: 28
