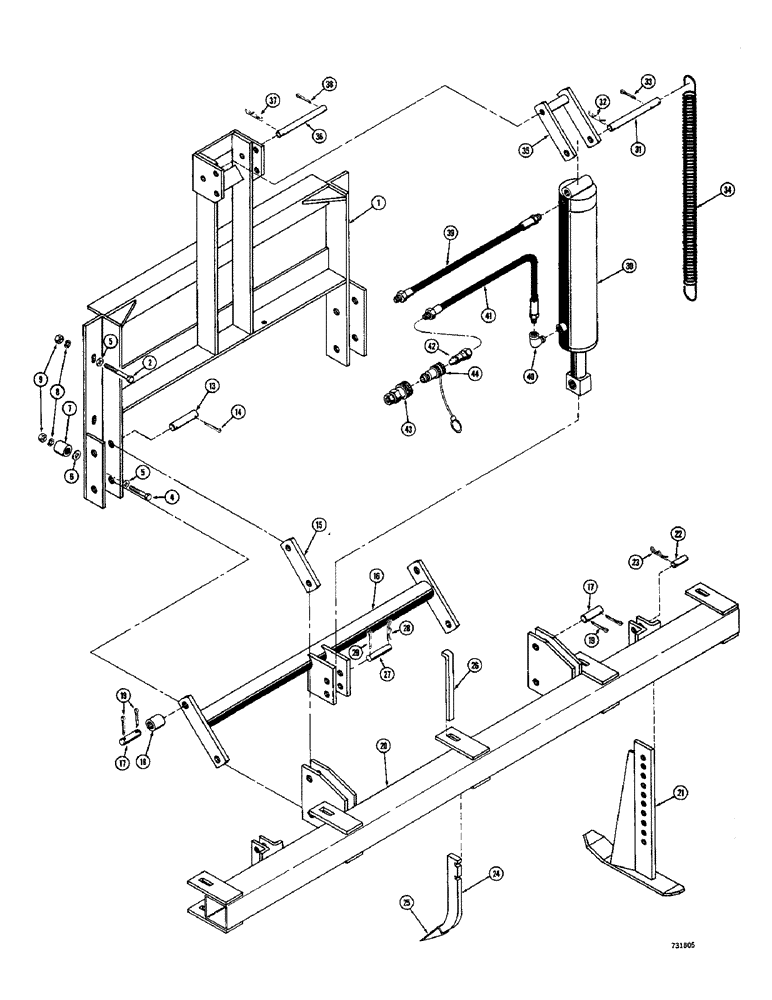

Запчасти Case 1530 (116) - SCARIFIER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
T42023
SPARE PART Mounting, scarifier
1шт.
2
113-421
BOLT,Hex, 1/2" - 13 x 2", Gr 5
4шт.
3
113-425
BOLT,Hex, 1/2" - 13 x 3", Gr 5
2шт.
3
113-425
BOLT,Hex, 1/2" - 13 x 3", Gr 5
(D53029 spacer)
2шт.
4
113-421
BOLT,Hex, 1/2" - 13 x 2", Gr 5
(A21546 spacer)
2шт.
5
195-106
WASHER,1/2"
2шт.
6
A21546
WASHER - spacer, Start Serial: 9820600
2шт.
7
D53029
SPACER
15/16" long, Serial Range: -9820600
2шт.
8
192-23
LOCK WASHER,1/2"
6шт.
9
129-105
NUT,Hex, 1/2" - 13, Gr 5
(1/2"-30 NC)
6шт.
10
RESERVED
1шт.
11
RESERVED
1шт.
12
RESERVED
1шт.
13
T42041
AXLE PIN
Mounting, linkage
4шт.
14
132-159
COTTER PIN,1/4" x 3"
8шт.
15
T42037
SPARE PART Hitch, upper
2шт.
16
T42038
WHEEL
LINK - hitch, lower
1шт.
17
T42062
PIN
Mounting, linkage
4шт.
18
T42058
SPACER
Hitch links
4шт.
19
132-159
COTTER PIN,1/4" x 3"
8шт.
20
T42043
SPARE PART
1шт.
21
T42050
SPARE PART Depth control
2шт.
22
T42057
AXLE PIN
Shoe mounting
4шт.
23
136-251
HAIR PIN COTTER,Int, 7/16" x .177"
8шт.
T42054
TOOTH
ASSEMBLY - scarifier, Includes Ref. 24 - 25
5шт.
24
NSS
NOT SOLD SEPARAT
SHANK - tooth
1шт.
25
K3871
POINT
Tooth
1шт.
26
T42056
KEY
Tooth retaining
5шт.
27
T42041
AXLE PIN
Cylinder, Serial Range: rod-link
1шт.
28
136-251
HAIR PIN COTTER,Int, 7/16" x .177"
2шт.
29
132-159
COTTER PIN,1/4" x 3"
2шт.
30
REF
INSTRUCTION
CYLINDER - scarifier (See Fig. 148 for proper cylinder)
1шт.
31
T42035
AXLE PIN
Cylinder to cylinder linkage
1шт.
32
136-251
HAIR PIN COTTER,Int, 7/16" x .177"
1шт.
33
132-159
COTTER PIN,1/4" x 3"
1шт.
34
T42060
SPRING
Return
1шт.
35
T42032
HINGE
LINK - cylinder
1шт.
36
T42036
AXLE PIN
Linkage
2шт.
37
136-251
HAIR PIN COTTER,Int, 7/16" x .177"
2шт.
38
132-159
COTTER PIN,1/4" x 3"
2шт.
39
T42063
HOSE
Hydraulic (32" long)
1шт.
40
217-1016
ELBOW,3/8" - 18 Female x 3/8" - 18 Male
Street
2шт.
41
T42064
HOSE ASSY.
Hydraulic (42" long)
1шт.
42
T41332
COUPLING, BREAK AWAY
Male
2шт.
43
T40265
COUPLING, BREAK AWAY
Female
2шт.
44
T40274
CAP
PLUG - dust, quick disconnect
2шт.
Выбрано товаров: 46
