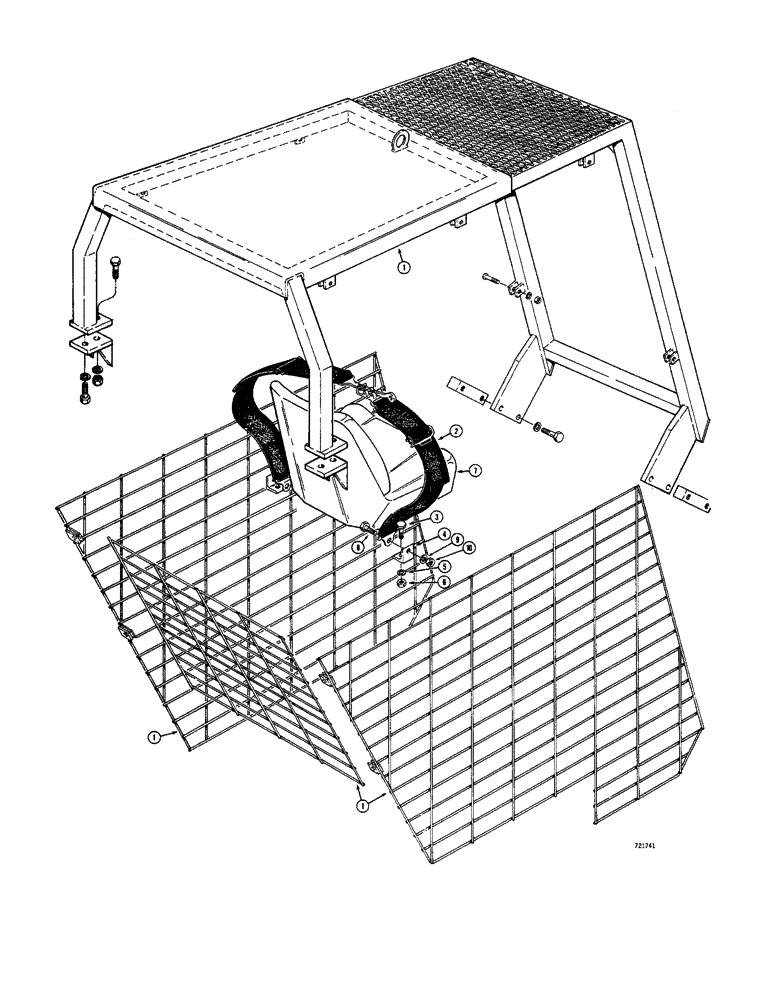

Запчасти Case 1530 (110) - ROLLOVER PROTECTION STRUCTURE AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

D55909

ROPS - Sims, with screens (Machinery item)

1шт.

ROPS, cab, screens and mounting parts must be ordered from Sims Cab Co. 230 Maple Street, Payne Ohio or Sims Cab Co. Route 122A Rutland, Mass.

1шт.

1a

D57563

ROPS - Sims, with cab (Machinery item) Not shown, Serial Range: -9820600

1шт.

ROPS, cab, screens and mounting parts must be ordered from Sims Cab Co. 230 Maple Street, Payne Ohio or Sims Cab Co. Route 122A Rutland, Mass.

1шт.

1b

D60213

ROPS - Sims, with cab (Machinery item) Not shown, Start Serial: 9820600

1шт.

ROPS, cab, screens and mounting parts must be ordered from Sims Cab Co. 230 Maple Street, Payne Ohio or Sims Cab Co. Route 122A Rutland, Mass.

1шт.

2

D60615

SAFETY BELT ,3.00" W

3.00" W

1шт.

3

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

4

D54655

BRACKET

ANGLE - mounting, belt

2шт.

5

92-7

LOCK WASHER,7/16"

2шт.

6

25-107

NUT,7/16"-14, G5

- hex. (7/16" - 14 NC)

2шт.

7

REF

INSTRUCTION

SEAT - operators (Parts list Fig. 108)

1шт.

8

F42236

STEP BOLT

BOLT - special

2шт.

9

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

10

425-117

NUT,7/16"-20, G5

- hex. (7/16" - 20 NF) plated

2шт.
