Запчасти Case 1530 (108) - SEATS (09) - CHASSIS/ATTACHMENTS

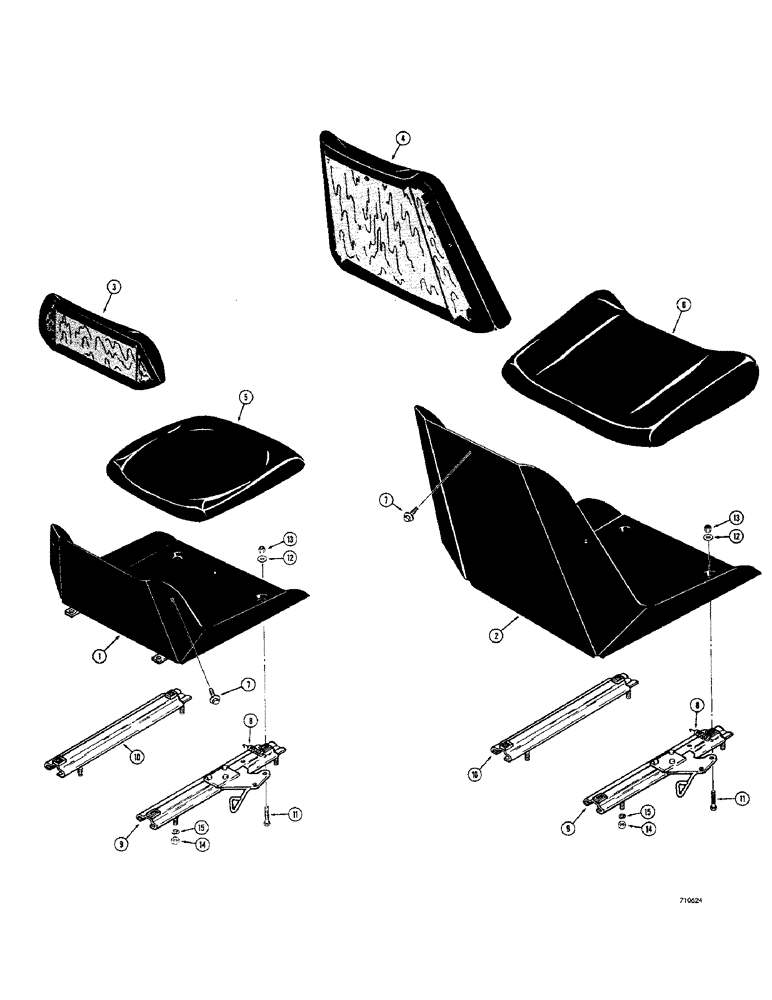

Схема запчастей Case 1530 - (108) - SEATS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

T40366

SEAT

ASSEMBLY - complete, backhoe operator's, Includes: Ref. 1 - 15

1шт.

T40239

SEAT

ASSEMBLY - complete, uni-loader operator;s (R.H. slide adjuster( Use D56576 seat assembly for service, Includes: Ref. 1 - 15

1шт.

D56576

SEAT

ASSEMBLY - complete, uni-loader operators (L.H. slide adjuster), Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - T40366 seat

1шт.

2

NSS

NOT SOLD SEPARAT

SHELL - T40239 and D56576 seat

1шт.

3

D53696

CUSHION

- back, T40366 seat

1шт.

4

D53583

CUSHION

- back, T40239 and D56576 seat

1шт.

5

D53697

CUSHION

- bottom T40366 seat

1шт.

6

D53584

CUSHION

- bottom, T40239 and D56576 seat

1шт.

7

193-545

SCREW,SEMS, Hex Hd, 1/4"-20 x 3/4"

HHMS - with internal tooth lockwasher (1/4" - 20 NC x 3/4") Zinc plated

5шт.

8

D53344

SPRING

- return, adjuster (1/2" long) If used

1шт.

8

D55954

SPRING

- return, adjuster (1-11/16" long) If used

1шт.

9

D53585

CUSHION

SLIDE - seat, adjusting

1шт.

10

D53586

SLIDE

- seat, non-adjusting

1шт.

11

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

4шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- flat (5/16")

4шт.

13

131-31

LOCK NUT,5/16"-24, G8

NUT - hex., lock (5/16" - 24 NF)

4шт.

14

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF, If used

4шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC) If used

4шт.

15

92-5

LOCK WASHER,5/16"

4шт.

Выбрано товаров: 20
