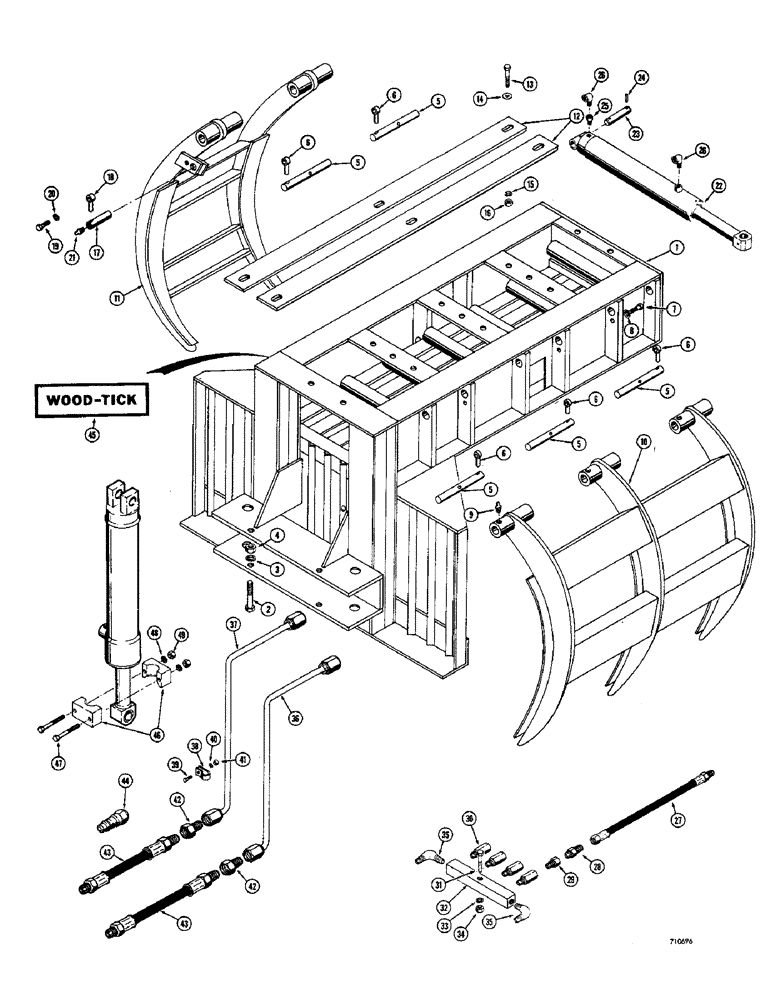

Запчасти Case 1530 (104) - WOOD TICK ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

T42383

SLIPPER

FRAME - wood tick

1шт.

2

13-1069

HHCS - 5/8" - 11 NC x 6"

2шт.

3

92-10

LOCK WASHER,5/8"

2шт.

4

25-1010

NUT,5/8"-11, G5

2шт.

5

T40957

PIN

Grapple mounting

5шт.

6

213-24

ROD

PIN - retaining

5шт.

7

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

5шт.

8

92-6

LOCK WASHER,3/8"

5шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

5шт.

10

T42379

GRAPPLE ASSEMBLY - RH

1шт.

11

T42377

TOOTH

GRAPPLE ASSEMBLY - LH

1шт.

12

T41816

COVER - bar

2шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

14

95-6

WASHER,3/8"

6шт.

15

92-6

LOCK WASHER,3/8"

6шт.

16

25-106

NUT,3/8"-16, G5

6шт.

17

T40962

SPARE PART Cylinder mounting, rod end

2шт.

18

213-24

ROD

PIN - retaining

2шт.

19

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

22

REF

INSTRUCTION

CYLINDER - wood tick (See Fig. 146 for proper cylinders)

2шт.

23

T40757

SPARE PART Cylinder mounting, base

2шт.

24

138-142

LOCK PIN,1/4" x 2", Slotted

4шт.

25

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

Bushing

2шт.

26

221-1410

ELBOW - 90 degree, street

4шт.

27

T41815

SPARE PART Cylinder to manifold (17" long)

4шт.

28

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

Straight, male

4шт.

29

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

Bushing

4шт.

30

T40964

RESTRICTOR

Manifold

4шт.

31

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

32

T40960

SPARE PART Hydraulic

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.

34

25-106

NUT,3/8"-16, G5

1шт.

35

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

Male

2шт.

36

T41813

SPARE PART Hydraulic, RH

1шт.

37

T41812

TUBE,0.5" OD

Hydraulic, LH

1шт.

38

49838

CLAMP

Tube

2шт.

39

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

40

92-6

LOCK WASHER,3/8"

2шт.

41

25-106

NUT,3/8"-16, G5

Hex

2шт.

42

218-434

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male JIC

ADAPTER - male, female

2шт.

43

T41580

HOSE

Hydraulic, 45-1/2" long

2шт.

44

T41332

COUPLING, BREAK AWAY

Quick disconnect, male

2шт.

45

321-1551

DECAL - wood tick

1шт.

46

D54489

SPARE PART Tilt cylinder (Set)

1шт.

47

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

4шт.

48

192-21

LOCK WASHER,3/8"

4шт.

49

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.
