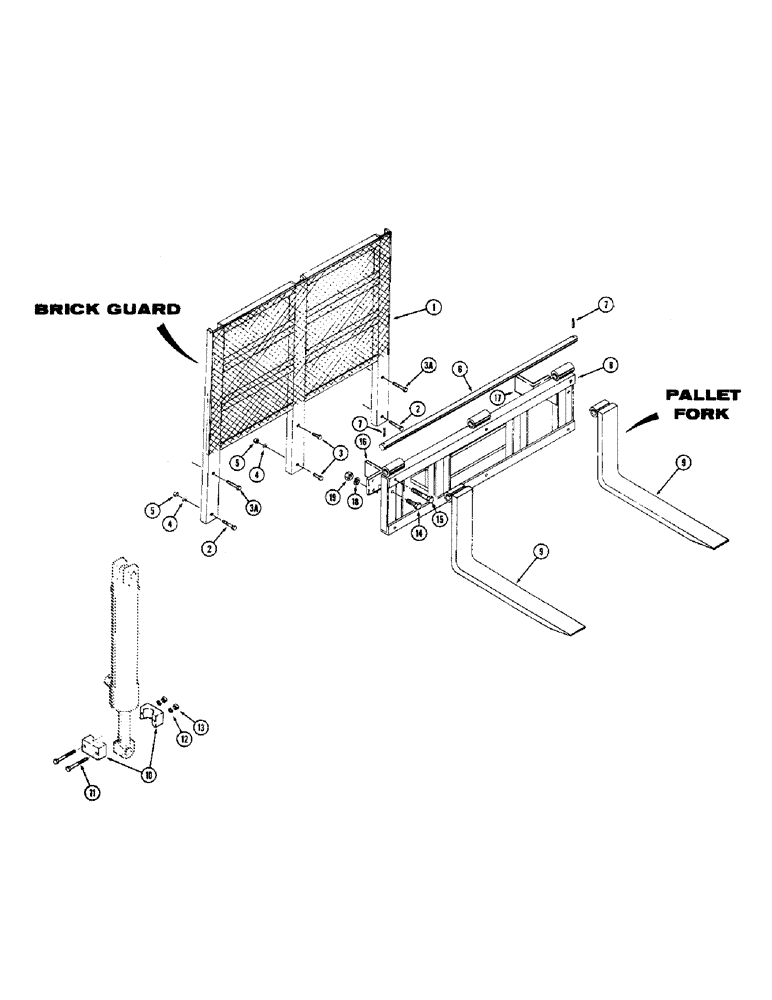

Запчасти Case 1530 (096) - PALLOT FORK AND BRICK GUARD (09) - CHASSIS/ATTACHMENTS

D16376

BRICK GUARD ASSEMBLY - machinery item, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

GUARD - brick

1шт.

2

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

4шт.

3

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

3a

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

(Used on models without bolt on stop blocks) Hex, 1/2"-13 x 4 1/2", G5

2шт.

3a

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

(Used on models with bolt on stop blocks) Hex, 1/2"-13 x 5", G5

2шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

D16375

PALLET FORK ASSEMBLY - machinery item, Includes: Ref. 6 - 19

1шт.

6

T41522

ROD

- fork mounting

1шт.

7

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

8

D54521

FRAME - pallet fork

1шт.

9

T41521

FORK - frame

2шт.

10

D54489

SPACER - tilt cylinder (Self-leveling arms only)

2шт.

11

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

4шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

14

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

15

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

HHCS - 1/2" - 13 NC x 4-1/2" (Zinc plated)

2шт.

16

D54529

STOP - R.H. (Used on models without self-leveling feature)

1шт.

17

D54530

STOP - L.H. (Used on models without self-leveling feature)

1шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

19

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.
