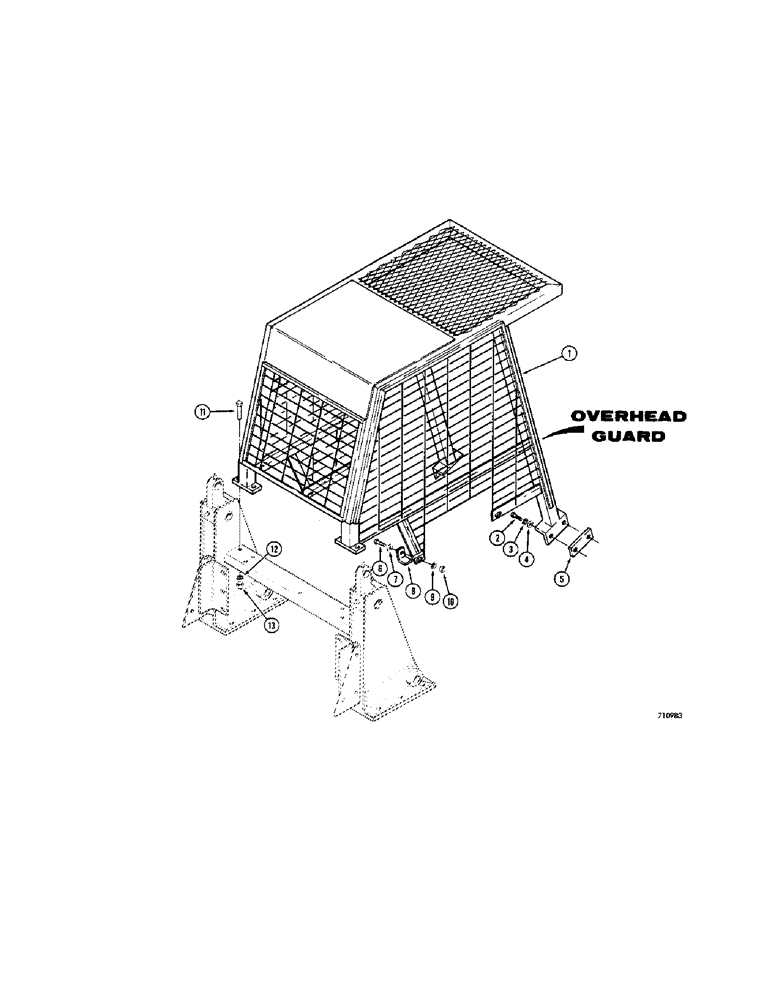

Запчасти Case 1530 (096[1]) - OVERHEAD GUARD (09) - CHASSIS/ATTACHMENTS

1

D53869

GUARD ASSEMBLY - complete

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

4

195-533

WASHER,1/2", SAE

- plain (1/2") Zinc plated

4шт.

5

D53846

BLOCK - tapped

2шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

7

195-525

WASHER,3/8", SAE

- plain (3/8") Zinc plated

6шт.

8

D53847

TAB - guard mount

3шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.
