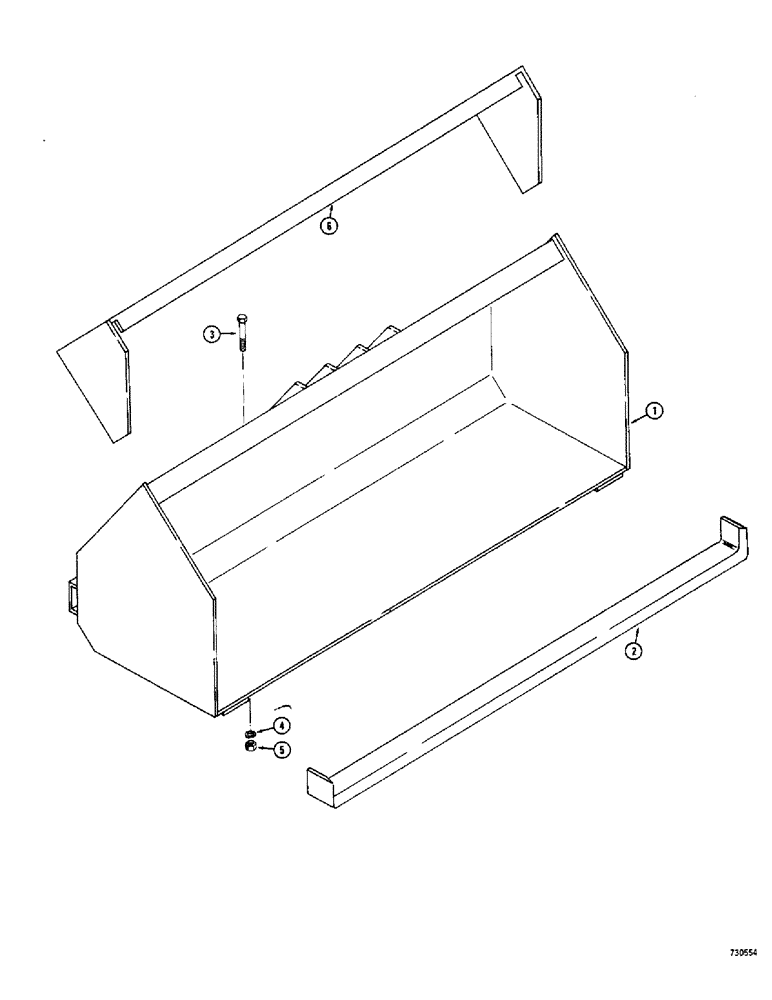

Запчасти Case 1530 (089A) - LOADER BUCKETS (09) - CHASSIS/ATTACHMENTS

1

T88288

BUCKET - potato, 20.9 cu. ft. (Mach. item) 66" wide, Includes: Ref. 2 - 5

1шт.

2

T41257

EDGE - cutting, potato bucket

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

1

T88568

BUCKET - potato, 31.4 cu. ft. (Mach. item) 72" wide, Includes: Ref. 2 - 5

1шт.

2

T41227

EDGE - cutting, potato bucket

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

1

T88289

BUCKET - stock yard, 20.1 cu. ft. (Mach. item) 66" wide, Includes: Ref. 2 - 5

1шт.

2

D54508

EDGE, CUTTING

EDGE - cutting, stockyard bucket

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

T89063

SPILL GUARD - for 66" bucket (Mach. item), stockyard

1шт.
