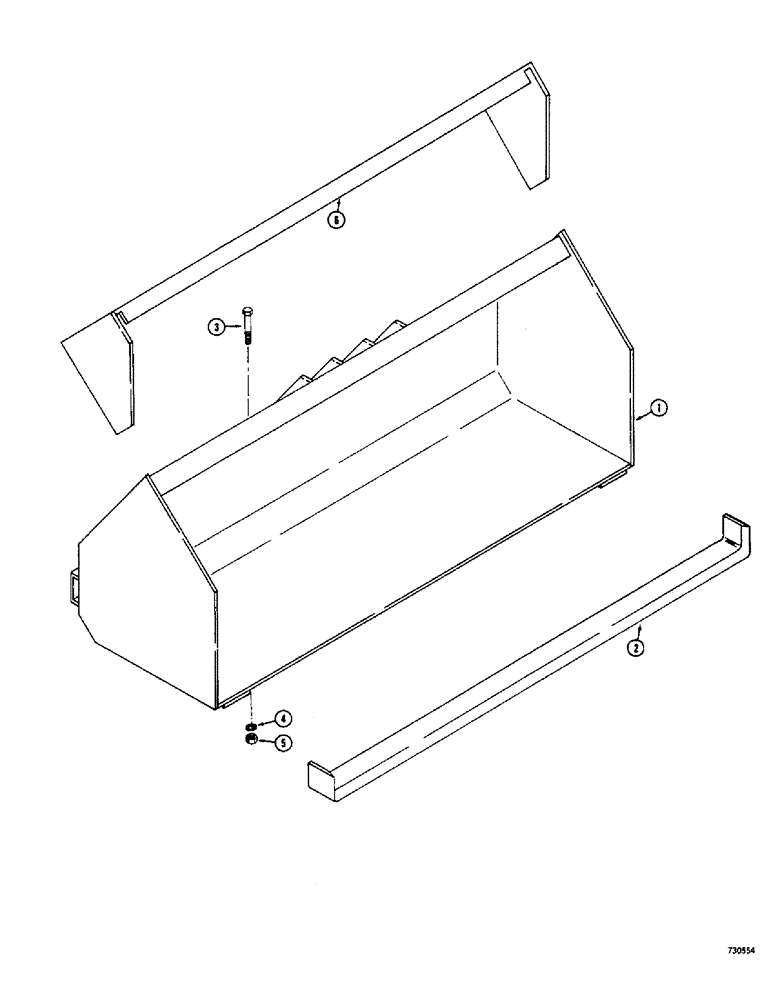

Запчасти Case 1530 (088) - LOADER BUCKETS (09) - CHASSIS/ATTACHMENTS

1

T88278

BUCKET - utility, 15.4 cu. ft. (Mach. item) 60" wide, Includes: Ref. 2 - 5

1шт.

2

D54509

EDGE, CUTTING

EDGE - cutting, utility buckets

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

T89062

SPILL GUARD - for 60" bucket (Mach. item), utility

1шт.

1

T88286

BUCKET - utility with divider, 15.4 cu. ft. (Mach. item) 60" wide, Includes: Ref. 2 - 5

1шт.

2

D54509

EDGE, CUTTING

EDGE - cutting, utility buckets

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

T89062

SPILL GUARD - for 60" bucket (Mach. item), utility

1шт.

1

T89039

BUCKET - utility, 17 cu. ft. (Mach. item) 66" wide, Includes: Ref. 2 - 5

1шт.

2

D54508

EDGE, CUTTING

EDGE - cutting, utility buckets

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

T89063

SPILL GUARD - for 66" bucket (Mach. item), utility

1шт.

1

T88567

BUCKET - cement, 9.4 cu. ft. (Mach. item) 37" wide,, Includes: Ref. 2 - 5

1шт.

2

D57106

EDGE

- cutting, cement bucket

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

1

T89041

BUCKET - chicken litter, 11.3 cu. ft. (Mach. item) 60" wide, Includes: Ref. 2 - 5

1шт.

2

D54509

EDGE, CUTTING

EDGE - cutting, chicken litter bucket

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

T89062

SPILL GUARD - for 60" bucket (Mach. item), chicken litter

1шт.

1

T88287

BUCKET - snow, 20.1 cu. ft. (Mach item) 66" wide, Includes: Ref. 2 - 5

1шт.

2

D54508

EDGE, CUTTING

EDGE - cutting, snow bucket

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

T89063

SPILL GUARD - for 66" bucket (Mach. item), snow

1шт.
