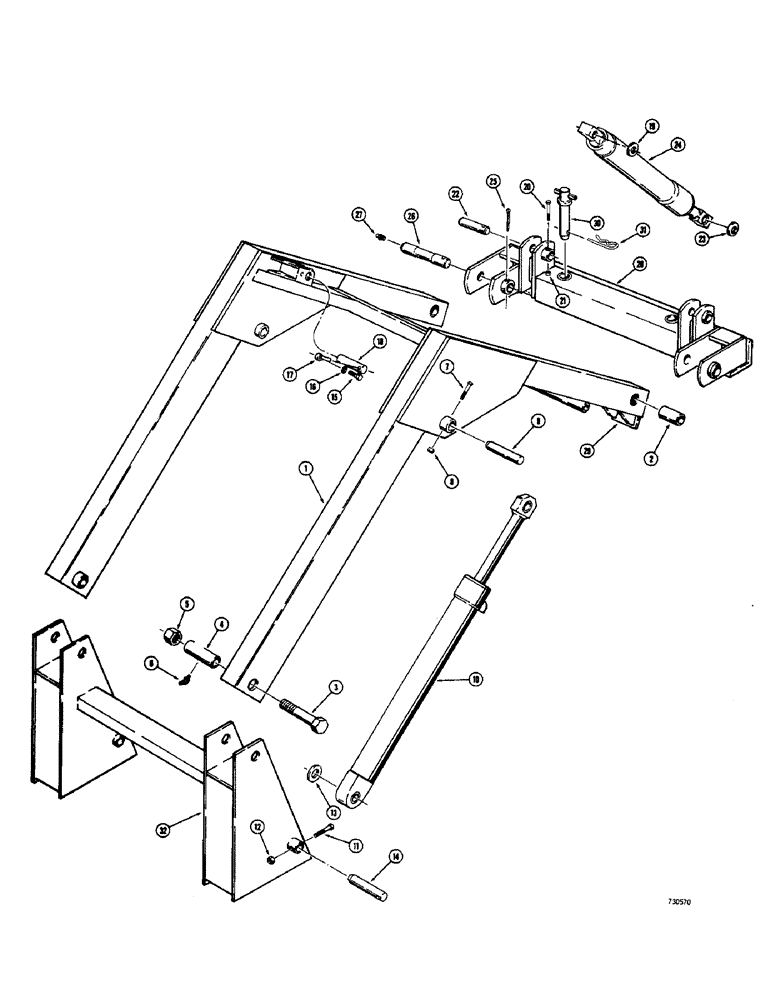

Запчасти Case 1530 (061A) - LOADER LIFT FRAME AND RELATED PARTS NON-SELF LEVELING USED SERIAL NO. 9820600 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

D60941

ARM

LIFT - loader, Includes Ref. 2

1шт.

2

T40503

BUSHING

Speed change bar pivot

2шт.

3

13-20128

BOLT,Hex, 1-1/4" - 7 x 8", Gr 5

HHCS - 1-1/4" - 7 NC x 8"

2шт.

4

D57672

SPARE PART Lift arm pivot

2шт.

5

131-661

NUT - hex. (1-1/4" - 7 NC)

2шт.

6

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

2шт.

7

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

8

131-652

LOCK NUT,3/8"-16, GB

Hex

2шт.

9

D57864

PIN

Lift, Serial Range: cylinder-arm

2шт.

10

REF

INSTRUCTION

CYLINDER - lift (See Figs. 130, 134 and 136 for cylinders)

2шт.

11

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

12

131-652

LOCK NUT,3/8"-16, GB

Hex

2шт.

13

D57073

SPARE PART Cylinder

2шт.

14

D57865

LARGE PIN

PIN, LARGE Lift, Serial Range: cylinder-frame

2шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

213-24

ROD

PIN - retaining

2шт.

18

T40220

PIN

Bucket, Serial Range: cylinder-arm

2шт.

19

D57073

SPARE PART Cylinder

2шт.

20

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

21

131-187

LOCK NUT,7/8"-14, GB

NUT - hex., lock (3/8" - 16 NC)

2шт.

22

T42446

PIN

Bucket cylinder to change bar

2шт.

23

D57073

SPARE PART Cylinder

2шт.

24

REF

INSTRUCTION

CYLINDER - bucket (See Fig. 138 for cylinders)

2шт.

25

D61252

SPARE PART Cotter, special (5/16" - 3")

2шт.

26

T42405

PIN

Change, Serial Range: bar-arm

2шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight (1/8" NPT)

2шт.

28

T42442

SUPPORT

BAR - change, speed

1шт.

29

D57875

SPARE PART Bucket cylinder

2шт.

30

T41081

PIN

Quick hitch

2шт.

31

T40222

SPLIT PIN/SAFETY PIN

Hair

2шт.

32

NSS

NOT SOLD SEPARAT

UPRIGHT - loader lift

1шт.
