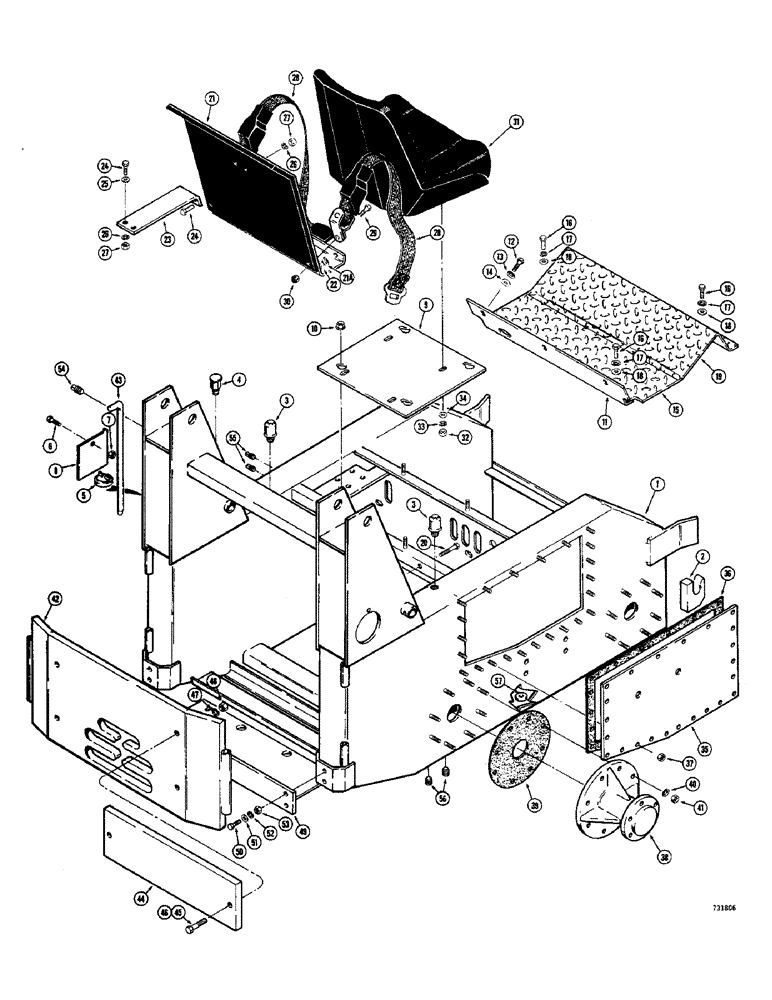

Запчасти Case 1530 (058) - MAIN FRAME AND RELATED PARTS, USED SERIAL NO. 9820600 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

MAIN FRAME ASSEMBLY - Uni-loader, Includes: Ref. 2

1шт.

2

T41758

HOOK

Backhoe mounting

4шт.

3

31543

BREATHER

Oil, 1/4" NPT

2шт.

4

D57822

BREATHER

Fuel tank

1шт.

5

D61089

CAP

Fuel, vented

2шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

131-652

LOCK NUT,3/8"-16, GB

2шт.

8

D58367

SPARE PART Fuel cap

2шт.

9

D55656

PLATFORM

Seat

1шт.

10

113-911

BOLT,Hex, 1" - 8 x 10", Gr 5

NUT - hex., flanged (5/16" - 18 NC)

4шт.

11

D54011

SPARE PART FLOORBOARD - rear (Models without brakes)

1шт.

11

D53926

DIVIDER BOARD

FLOORBOARD - rear (Models with brakes)

1шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

3шт.

14

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - plain (5/16")

3шт.

15

D53938

SPARE PART FLOORBOARD - middle (Models without brakes)

1шт.

15

D53929

SPARE PART Middle (Models with brakes)

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

17

92-6

LOCK WASHER,3/8"

7шт.

18

195-25

WASHER,3/8"

7шт.

19

D54689

DIVIDER BOARD

FLOORBOARD - front

1шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

21

T42387

SPARE PART Heat

1шт.

21a

92-5

LOCK WASHER,5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

2шт.

23

D54115

SPARE PART Heat shield

1шт.

24

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

25

195-18

WASHER,1/4"

2шт.

26

92-4

LOCK WASHER,1/4"

4шт.

27

25-104

NUT,1/4"-20, G5

4шт.

28

T42386

SPARE PART Complete, models without ROPS

1шт.

29

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

30

131-654

LOCK NUT,1/2"-13, GB

2шт.

31

REF

INSTRUCTION

SEAT ASSEMBLY - operator's (Parts list Fig. 108)

1шт.

32

25-115

NUT,5/16"-24, G5

4шт.

33

92-5

LOCK WASHER,5/16"

4шт.

34

195-103

WASHER,5/16"

4шт.

35

T42538

SPARE PART Drive compartment

2шт.

36

T42539

GASKET KIT

Cover

2шт.

37

25-106

NUT,3/8"-16, G5

48шт.

38

REF

INSTRUCTION

HUB ASSEMBLY - axle (Parts list Fig. 038)

4шт.

39

T42395

GASKET

Hub

4шт.

40

92-9

BEARING WASHER,9/16"

32шт.

41

25-119

NUT,9/16"-18, G5

32шт.

42

D57652

SPARE PART Swing out, door

1шт.

43

D57648

SPARE PART Door

2шт.

44

D53413

WEIGHT

COUNTER - add on, 78 lb.

1шт.

45

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1st counterweight

2шт.

46

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

3rd and 4th cwt

2шт.

47

192-23

LOCK WASHER,1/2"

2-4шт.

48

129-105

NUT,Hex, 1/2" - 13, Gr 5

2-4шт.

49

T41070

SPARE PART Rear engine

1шт.

50

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

51

95-8

WASHER,1/2"

6шт.

52

92-8

LOCK WASHER,1/2"

6шт.

53

25-108

NUT,1/2"-13, G5

Hex

6шт.

54

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

Pipe

1шт.

55

221-12

PLUG,Sq Hd, 1/4"-18

Pipe (1/4" NPT)

2шт.

56

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

Magnetic

4шт.

57

L15043

MAGNET

Hydraulic tank

2шт.
