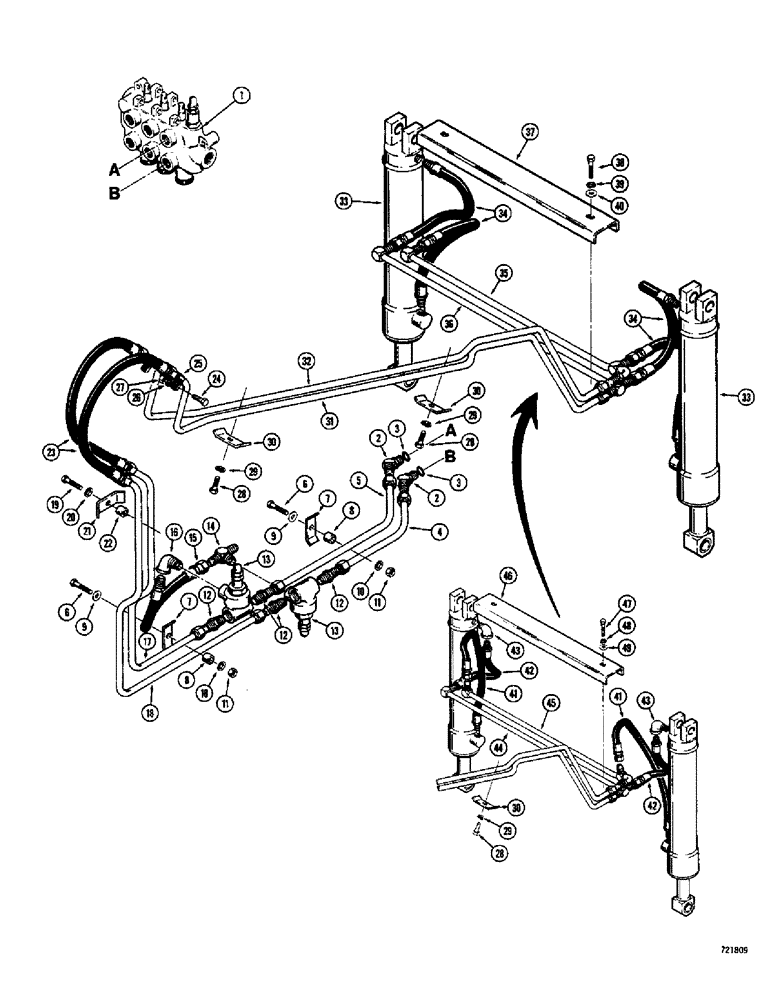

Запчасти Case 1530 (073A) - LOADER BUCKET HYDRAULICS MODELS WITH SELF LEVELING FEATURE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - dump (Parts list Fig. 086)

1шт.

2

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Male, Incl. Ref 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D53371

TUBE

At valve, bottom

1шт.

5

D53373

TUBE

At valve, top

1шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 3/8" - 16 NC x 1-3/4"

2шт.

7

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

8

D33552

BUSHING

SPACER - tube

2шт.

9

195-25

WASHER,3/8"

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

2шт.

12

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight

4шт.

13

D53480

VALVE

ASSEMBLY - relief (Parts list Fig. 082)

2шт.

14

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

Adjustable, male female

1шт.

15

36272

HOSE

Relief valve to relief valve (16" long)

1шт.

16

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

Street

1шт.

17

D53369

TUBE

At relief valve, top

1шт.

18

D53367

TUBE

At relief valve, bottom

1шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

A13622

PLATE, LOCKING

CLAMP - tube

1шт.

22

D33552

BUSHING

SPACER - tube clamp

1шт.

23

D25177

HOSE ASSY.

Hydraulic, to lift arm (26" long)

2шт.

24

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

25

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Tube

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

2шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

31

D53375

TUBE

Inner, lift arm

1шт.

32

D53447

TUBE

Inner, lift arm

1шт.

33

REF

INSTRUCTION

CYLINDER - bucket (See Fig. 140 for cylinders)

2шт.

34

D54403

HOSE ASSY.

Cylinder (22" long), Serial Range: -9816912

4шт.

35

D54299

PIPE

TUBE - crossover, front, Serial Range: -9816912

1шт.

36

D54297

SPARE PART Crossover, rear, Serial Range: -9816912

1шт.

37

D54219

SPARE PART Tube, Serial Range: -9816912

1шт.

38

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

, Serial Range: -9816912

2шт.

39

92-6

LOCK WASHER,3/8"

, Serial Range: -9816912

2шт.

40

195-25

WASHER,3/8"

, Serial Range: -9816912

2шт.

41

D55089

HOSE ASSY.

Bucket cylinder, rod end (33" long), Start Serial: 9816912

2шт.

42

D55088

HOSE ASSY.

Bucket cylinder, closed end (13-1/2" long), Start Serial: 9816912

2шт.

43

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

Street, Start Serial: 9816912

2шт.

44

D54297

SPARE PART Crossover, rear (Replaces D45297), Start Serial: 9816912

1шт.

45

D55091

SPARE PART Crossover, front, Start Serial: 9816912

1шт.

46

D54219

SPARE PART Tube, Start Serial: 9816912

1шт.

47

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

, Start Serial: 9816912

2шт.

48

92-6

LOCK WASHER,3/8"

, Start Serial: 9816912

2шт.

49

195-25

WASHER,3/8"

, Start Serial: 9816912

2шт.
