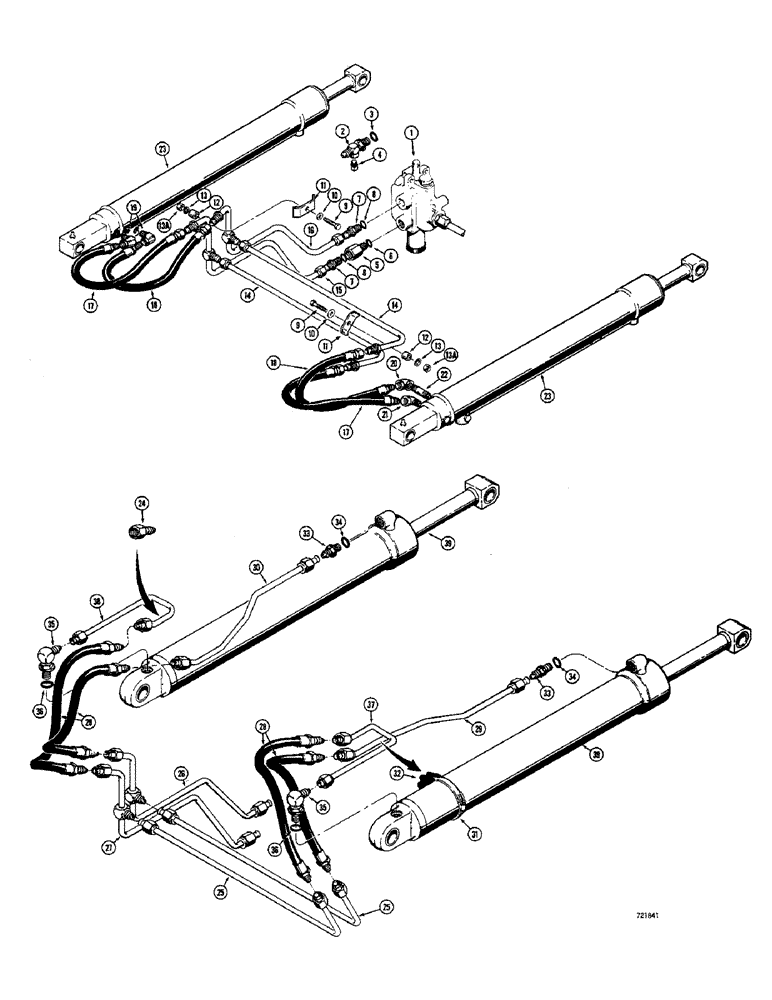

Запчасти Case 1530 (070) - LIFT ARM HYDRAULICS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - lift (Parts list Fig. 084)

1шт.

2

D57607

SPARE PART Special, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

221-12

PLUG,Sq Hd, 1/4"-18

Pipe, (1/4" NPT)

1шт.

5

T40305

FITTING

RESTRICTOR - lift circuit

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, male, Includes Ref. 8

1-2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

10

195-25

WASHER,3/8"

2шт.

11

A13622

PLATE, LOCKING

CLAMP - tube

2шт.

12

D33552

BUSHING

SPACER - tube

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

13a

25-106

NUT,3/8"-16, G5

Hex

2шт.

14

T40284

TUBE

Crossover, lift, Serial Range: -9818188

2шт.

15

T41741

TUBE,15.26, 8.84" L

Bottom, lift, Serial Range: -9818188

1шт.

16

T41742

TUBE,15.16, 8.34" L

Top, lift, Serial Range: -9818188

1шт.

17

T40297

HOSE

Lift, 24-1/2" long, Serial Range: -9818188

2шт.

18

T40296

SPARE PART Lift, 22-1/2" long, Serial Range: -9818188

2шт.

19

217-1087

ELBOW,45 Degree, 3/8"-18 Female x 3/8"-18 Male

Street (LH cylinder), Serial Range: -9818188

2шт.

20

217-1052

ELBOW,3/8" - 18 NPTF Female

90 degree, pipe (RH cylinder), Serial Range: -9818188

1шт.

21

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

Street (RH cylinder), Serial Range: -9818188

1шт.

22

221-716

NIPPLE - pipe (3/8" NPT), Serial Range: -9818188

1шт.

23

REF

INSTRUCTION

CYLINDER - lift (See Figs. 130 and 132 for cylinders), Serial Range: -9818188

2шт.

When replacing G32029, G33888, G32935 or G33754 cylinder with G34244 cylinder, also use D16862 kit shown below

1шт.

24

218-464

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Female NPTF

ADAPTER - male, straight, if used, Serial Range: -9818188

2шт.

Part of Lift Cylinder Kit, P/N D16862

1шт.

25

D56601

SPARE PART Lift, crossover, Start Serial: 9818188

2шт.

26

D56612

SPARE PART Lift, top, Start Serial: 9818188

1шт.

27

D56611

TUBE

Lift, bottom, Start Serial: 9818188

1шт.

28

D56597

HOSE ASSY.

SPARE PART Hydraulic (19" long), Start Serial: 9818188

4шт.

29

D60477

SPARE PART Rod end of cylinder, RH, Start Serial: 9818188

1шт.

Part of Lift Cylinder Kit, P/N D16862

1шт.

30

D60475

SPARE PART Rod end of cylinder, LH, Start Serial: 9818188

1шт.

Part of Lift Cylinder Kit, P/N D16862

1шт.

31

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

Screw type, Start Serial: 9818188

2шт.

Part of Lift Cylinder Kit, P/N D16862

1шт.

32

R24703

SUPPORT

SADDLE - rubber, Start Serial: 9818188

2шт.

Part of Lift Cylinder Kit, P/N D16862

1шт.

33

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Male, straight, Incl. Ref 34, Start Serial: 9818188

1шт.

Part of Lift Cylinder Kit, P/N D16862

1шт.

35

214-5121

ELBOW - 90 degree, male (Adjustable), Includes Ref. 36, Start Serial: 9818188

2шт.

Part of Lift Cylinder Kit, P/N D16862

1шт.

37

D60479

SPARE PART Enclosed end of cylinder, RH, Start Serial: 9818188

1шт.

Part of Lift Cylinder Kit, P/N D16862

1шт.

38

D60481

TUBE

Closed end of cylinder, LH, Start Serial: 9818188

1шт.

Part of Lift Cylinder Kit, P/N D16862

1шт.

39

G34244

CYLINDER

Lift, Parts list Fig. 134, Serial Range: -9818251

2шт.

39

G34273

SPARE PART Lift, Parts list Fig. 136, Start Serial: 9818251

2шт.

D16862

TUBE

KIT - lift cylinder, Includes Refs. 24, 29 - 33, 35, 37 and 38, Start Serial: 9818188

1шт.

34

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

, Start Serial: 9818188

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

, Start Serial: 9818188

1шт.
