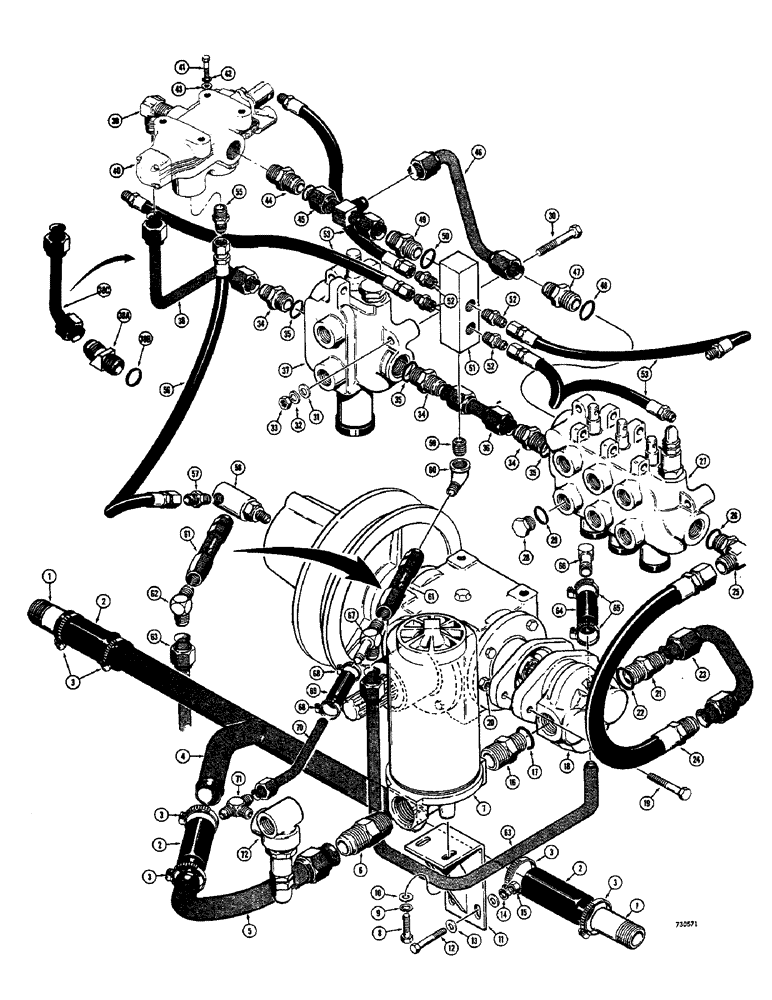

Запчасти Case 1530 (066) - BASIC TRACTOR HYDRAULICS (08) - HYDRAULICS

1

D33363

FITTING

STEM - hose

2шт.

2

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

Low pressure

3шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

6шт.

4

D53437

TUBE

Tee, hydraulic suction

1шт.

5

D53438

TUBE

Suction

1шт.

6

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

ADAPTER - straight, male

1шт.

7

T40141

FILTER

ASSEMBLY - oil, hydraulic (Parts list Fig. 078)

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

195-21

WASHER,5/16"

Flat

2шт.

11

T41067

BRACKET

Mounting, oil filter

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

13

195-2034

WASHER,7/16" x 1 1/4" x .134"

WASHER - flat (3/8")

4шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

2шт.

16

218-5016

ADAPTER,1-5/8" - 12 Male ORB x 1-1/4" Male NPTF

Straight, male, Includes Ref. 17

1шт.

17

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL

1шт.

18

REF

INSTRUCTION

PUMP - hydraulic oil (See Fig. 080 for pumps)

1шт.

19

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

20

131-354

LOCK NUT,1/2"-13, GA

Hex

2шт.

21

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER, Incl. Ref. 22

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Seal

1шт.

23

D53474

TUBE

Hydraulic, Serial Range: pump-valve

1шт.

24

R22173

HOSE

Hydraulic (13-1/2" long)

1шт.

25

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Incl. Ref. 26

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

27

D55019

VALVE

ASSEMBLY - bucket and auxiliary hydraulics (Parts list Fig. 086)

1шт.

28

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 29

4шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

4шт.

31

195-25

WASHER,3/8"

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

25-106

NUT,3/8"-16, G5

4шт.

34

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, Male, Incl. Ref. 35

2-3шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

36

D53478

TUBE

Hydraulic

1шт.

37

T40137

VALVE

ASSEMBLY - lift (Parts list Fig. 084)

1шт.

38

T40278

HYD TUBE

Lift valve to control valve (Early production) Used with straight adapter item 34

1шт.

38a

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Male (Late production), Includes Ref. 38B

1шт.

38b

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

38c

D58866

TUBE

Lift valve to control valve (Late production) Used with elbow item 38A

1шт.

39

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

Male

1шт.

40

D53435

VALVE

ASSEMBLY - variable speed (Parts list Fig. 082)

1шт.

41

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

42

92-6

LOCK WASHER,3/8"

4шт.

43

195-25

WASHER,3/8"

4шт.

44

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - male, straight

1шт.

45

D53440

TUBE

Variable, Serial Range: speed-manifold

1шт.

46

D53451

TUBE

Return to equipment valve

1шт.

46

D53451

TUBE

Return, to equipment valve, for models with self leveling feature

1шт.

47

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Adapter, Male, straight, Includes Ref. 48

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

49

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, Male, Incl. Ref. 50

1шт.

50

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Seal

1шт.

51

T40134

HYDRAULIC MANIFOLD

1шт.

52

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - male, straight

4шт.

53

T40300

HYDRAULIC HOSE,0.25" ID x 15.75", SAE 100R3

Manifold to clutch shaft

4шт.

54

RESERVED

1шт.

55

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight

1шт.

56

D53436

HOSE,1/4 ID x 14.20", SAE 100R3

to Coupling

1шт.

57

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

Adapter - Male, straight

1шт.

58

T42355

COUPLING, BREAK AWAY

ASSEMBLY - rotary (Parts list Fig. 084)

1шт.

59

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

Close

1шт.

60

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street

1шт.

61

T33711

VALVE

CHECK - return line

1шт.

62

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

Male

1шт.

63

D53550

TUBE

Return, hydraulic oil

1шт.

64

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

Low pressure (1" I.D. x 3-1/2" long)

1шт.

65

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

66

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

Male

1шт.

67

D53961

TEE

Special, for models with self leveling feature

1шт.

68

D35139

HOSE

Low pressure (5/8" I.D. x 3" long), for models with self leveling feature

1шт.

69

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

For models with self leveling feature

2шт.

70

D53554

TUBE

Return, from relief valve, for models with self leveling feature

1шт.

71

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

Adjustable, male female, for models with self leveling feature

1шт.

72

D53480

VALVE

ASSEMBLY - relief (Parts list Fig. 082) For related parts, see page 73A, for models with self leveling feature

1шт.
