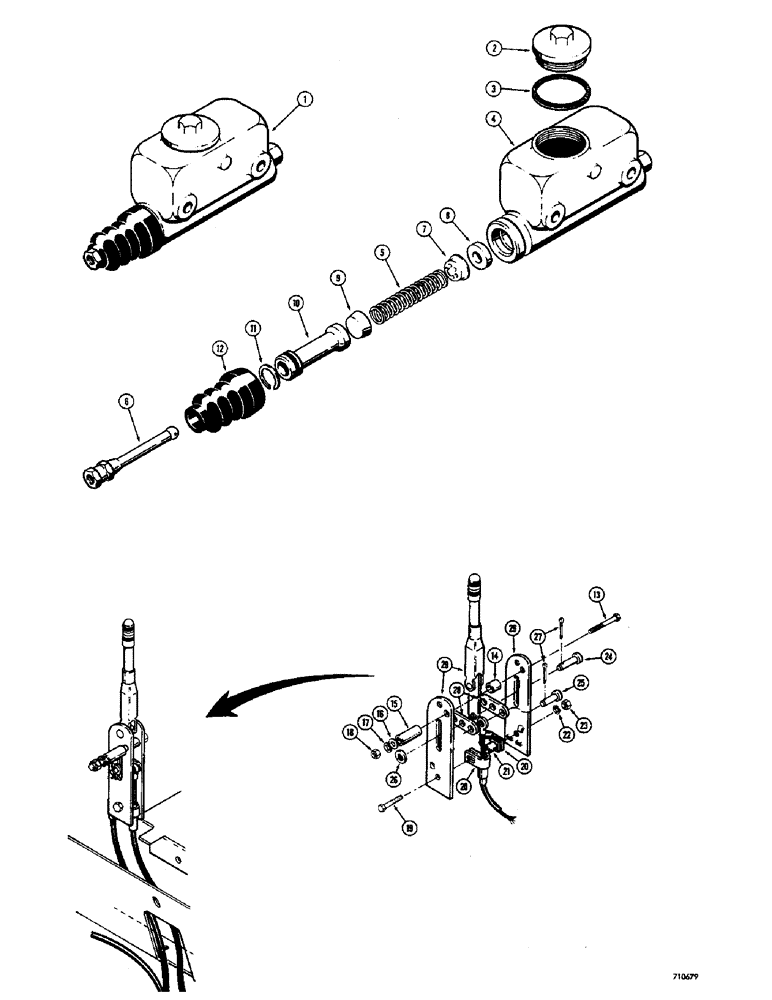

Запчасти Case 1530 (046) - BRAKE MASTER CYLINDER (07) - BRAKES

1

L25419

MASTER CYLINDER

CYLINDER - master, brake, Includes: Ref. 2 - 12

1шт.

2

L32127

CYLINDER END CAP

CAP - filler

1шт.

3

L32128

GASKET

- filler cap

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

5

L32126

SPRING

- piston return

1шт.

6

L32137

ROD

- push

1шт.

L32129

KIT

- service, master cylinder, Includes: Ref. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT - valve

1шт.

9

NSS

NOT SOLD SEPARAT

CUP - cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

RING - retainer, piston

1шт.

12

NSS

NOT SOLD SEPARAT

BOOT - cylinder

1шт.

13

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT, Hex, 5/16"-18 x 3", G5

1шт.

14

D33554

BUSHING

SPACER - short, parking brake

1шт.

15

D40925

SPACER

- long, parking brake

1шт.

16

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

19

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

20

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

- cable, parking brake

2шт.

21

D33551

BUSHING

SPACER - clamp, parking brake

1шт.

22

92-5

LOCK WASHER,5/16"

1шт.

23

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

D53747

LEVER

PARKING BRAKE - complete, Includes: Ref. 24 - 29

1шт.

24

L30975

AXLE PIN,7.82mm OD x 39.69mm L

PIN - clevis, long, parking brake

1шт.

25

D54574

CLEVIS PIN

PIN - clevis, short, parking brake

2шт.

26

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

1шт.

27

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", parking brake

3шт.

28

D54575

LINK - pivot, brake cable, parking

2шт.

29

NSS

NOT SOLD SEPARAT

LEVER - brake, parking

1шт.
