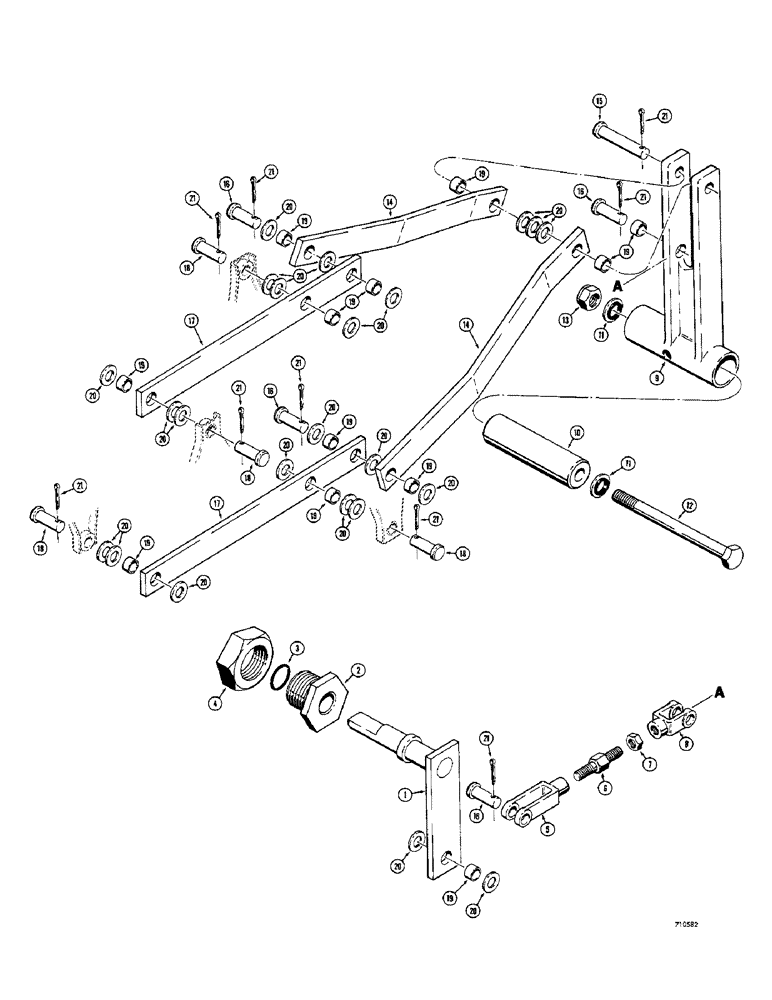

Запчасти Case 1530 (052) - CLUTCH LINKAGE AND PIVOT ARM (06) - POWER TRAIN

1

T40059

SHAFT

- lever, clutch actuator

2шт.

2

T40060

MOUNTING PARTS

MOUNT - clutch actuator

2шт.

3

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

SEAL - "O" ring, shaft

2шт.

4

25-1524

JAM NUT,Jam, 1 1/2"-12, G5

- hex., jam (1-1/2" - 12 NF)

2шт.

5

T41263

YOKE

- connecting rod (3/8' - 24 NF L.H. thread)

2шт.

6

T40056

CLEVIS

ROD - connecting

2шт.

7

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

2шт.

8

T40057

YOKE

- connecting rod (3/8" - 24 NF R.H. thread)

2шт.

9

T40052

ARM

- pivot

2шт.

10

T40058

BUSHING

- pivot arm

2шт.

11

T42588

WASHER

- seal, 1/2"

4шт.

12

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

13

131-654

LOCK NUT,1/2"-13, GB

NUT - hex., lock (1/2" - 13 NC)

2шт.

14

T40063

STRAP

- clutch engaging

4шт.

15

T40053

AXLE PIN

PIN - clevis, 3/8" dia. x 2-1/8"

2шт.

16

T40054

CLEVIS PIN

PIN, CLEVIS, 3/8" dia. x 1-3/32"

8шт.

17

T40064

LINKAGE

LINK - clutch control

4шт.

18

T40062

CLEVIS

PIN - clevis, 3/8" dia. x 1"

8шт.

19

T40061

BUSHING

- bronze, links and straps

24шт.

20

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

21

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

18шт.
