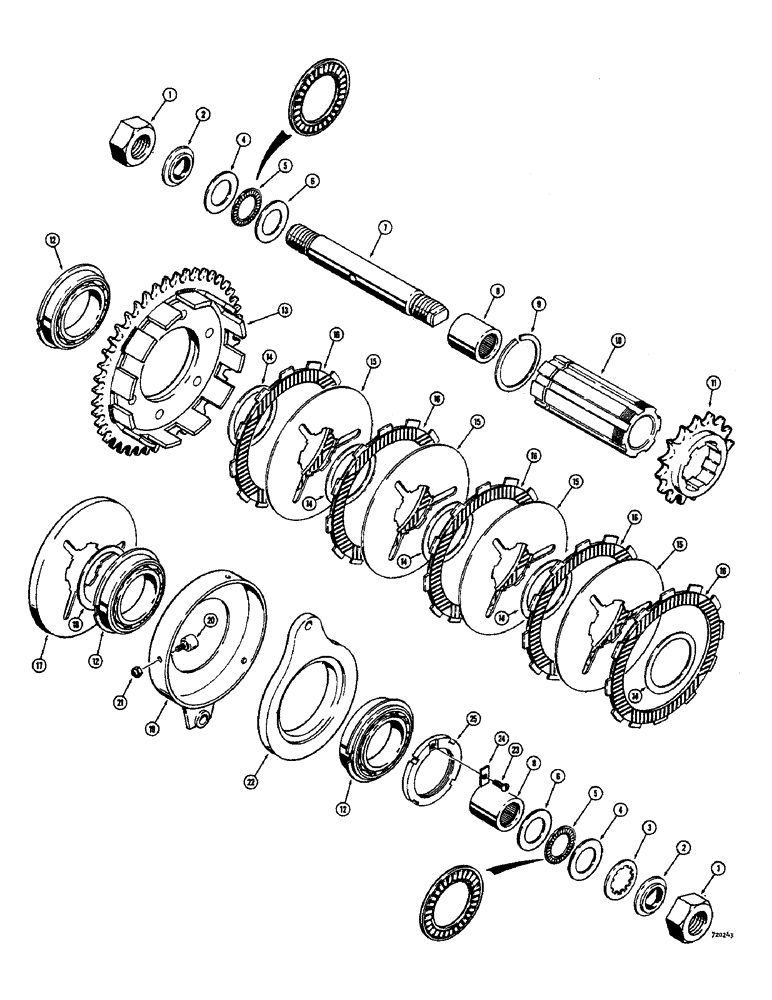

Запчасти Case 1530 (051C) - MULITPLE DISC CLUTCH AND SHAFT ASSEMBLY STEARNS CLUTCH USE SERIAL NO. 9816818 AND AFTER (06) - POWER TRAIN

1

25-1114

NUT,7/8"-14, G5

- hex. (7/8" - 14 NF)

8шт.

2

T40065

WASHER

- seal (7/8")

8шт.

3

T40067

LOCK

RING - clutch retainer

4шт.

4

G46081

BEARING WASHER

RACE - thrust washer

8шт.

5

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST

8шт.

6

T40066

WASHER,25.58mm ID x 39.17mm OD x 1.56mm Thk

RACE - thrust

8шт.

7

T40024

SHAFT

- clutch

4шт.

D55236

CLUTCH

ASSEMBLY - with bearings, Includes: Ref. 8 - 25

4шт.

8

T40012

NEEDLE BEARING

BEARING - needle

2шт.

9

100-11196

SNAP RING,#196, Ext

Ring, Snap, #196, Ext

1шт.

10

D55215

HUB

- clutch

1шт.

11

D55374

DRIVE SPROCKET

SPROCKET - clutch

1шт.

12

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSEMBLY - ball

3шт.

13

D55214

CAP

ASSEMBLY - drive

1шт.

14

D55373

SHIM

- seperating

5шт.

15

D55213

DISC

- separator

4шт.

16

D55212

DISC

- friction

5шт.

17

D55211

PLATE

- pressure

1шт.

18

D55210

BUSHING

SPACER - cup

1шт.

19

D55209

CAM

ASSEMBLY - roller carrier

1шт.

20

D55208

ROLLER BEARING,0.191" ID x 0.50" OD x 3"

BEARING - cam roller

3шт.

21

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex., lock (#10 - 32 NF) Cadmium plated

3шт.

22

D55531

PLATE

- cam

1шт.

23

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- round head, machine (#6 - 32 NC x 1/4")

1шт.

24

D55205

KEY

- nut adjusting

1шт.

25

D55206

NUT

- adjusting

1шт.
