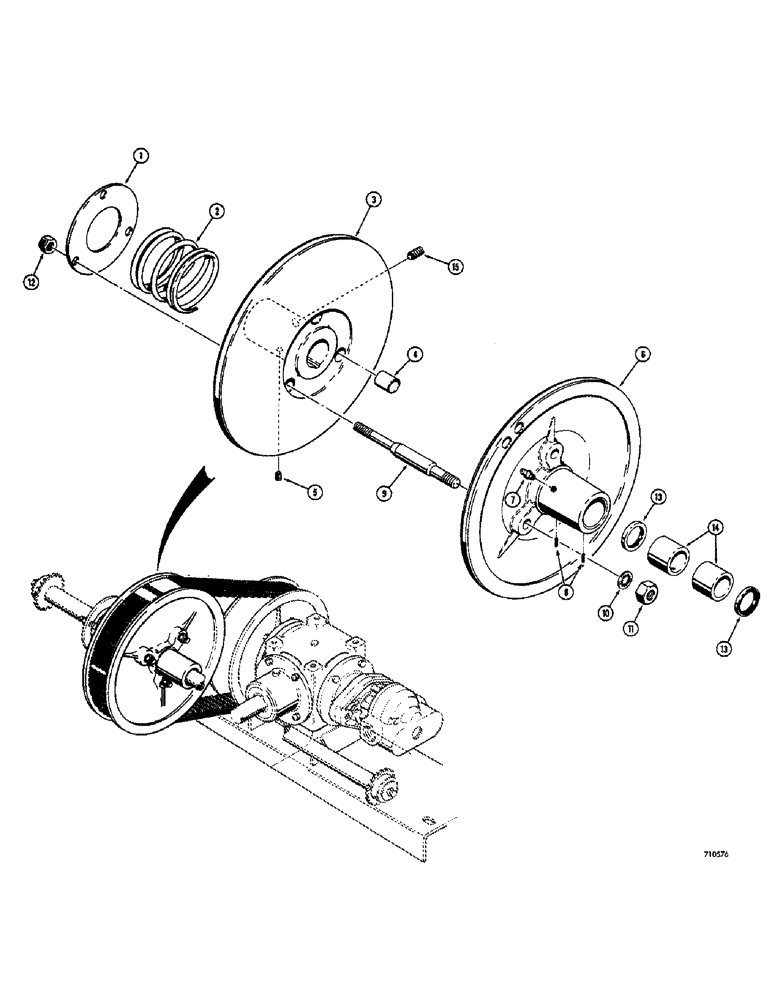

Запчасти Case 1530 (032) - 12 INCH VARIABLE SPEED DRIVEN ASSEMBLY (06) - POWER TRAIN

T40072

X

VARIABLE SPEED DRIVEN ASSEMBLY - complete, when stock is exhausted, use D57519 assembly, Includes: Ref. 1 - 14

1шт.

D57519

PULLEY

VARIABLE SPEED DRIVEN ASSEMBLY - complete, Includes: Ref. 1 - 14

1шт.

1

T40101

PLATE

- spring tension

1шт.

2

T40098

SPRING

- tension (T40072 driven assembly)

1шт.

2

D57530

SPRING

- tension (D57519 driven assembly)

1шт.

3

NSS

NOT SOLD SEPARAT

SHEAVE - fixed

1шт.

4

D53680

BUSHING

- fixed sheave

3шт.

5

178-856

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SETSCREW - 5/16" - 18 NC x 3/8", special

1шт.

6

NSS

NOT SOLD SEPARAT

SHEAVE - sliding

1шт.

7

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight (1/4" - 28 NF)

1шт.

8

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, 1/8" x 3/8", Slotted

2шт.

9

T40097

STUD

- Sheave to tension plate

3шт.

10

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

3шт.

11

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

3шт.

12

131-652

LOCK NUT,3/8"-16, GB

NUT - hex., lock (3/8" - 16 NC)

3шт.

13

A27604

OIL SEAL

- oil

2шт.

14

T40099

BUSHING

- sliding sheave

2шт.

15

178-857

SET SCREW,Hex Soc, 1/2"-13 x 5/8"

SETSCREW - 1/2" - 13 NC x 5/8", special

1шт.
