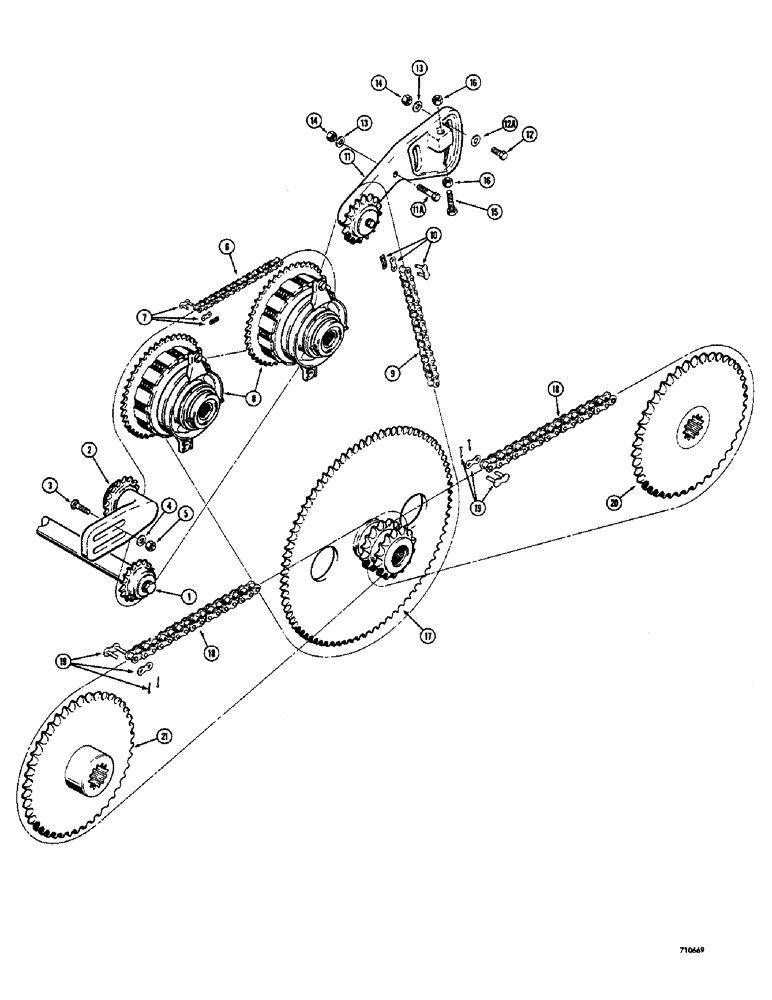

Запчасти Case 1530 (022) - DRIVE SPROCKETS AND CHAIN (06) - POWER TRAIN

1

REF

INSTRUCTION

SPROCKET - chain drive (See Fig. 034 for proper sprocket and related parts)

2шт.

2

REF

INSTRUCTION

CHAIN TIGHTENER - no. 40 chain (Parts list Fig. 048)

2шт.

3

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

4шт.

4

T42589

WASHER

Special, sealing

4шт.

5

131-652

LOCK NUT,3/8"-16, GB

4шт.

N2958

CHAIN (AG)

ASSEMBLY - to clutches, no. 40 chain, Includes Ref. 6 - 7

2шт.

6

NSS

NOT SOLD SEPARAT

CHAIN - to clutches, no. 40 chain

1шт.

7

D52905

LINK

Connecting, spring clip type (No. 40 chain)

1шт.

8

REF

INSTRUCTION

CLUTCH ASSEMBLY - multiple disc (See Figs. 050 thru 051A for clutches), Includes Ref. 9 - 10

4шт.

T40011

CHAIN (AG)

ASSEMBLY - to main driven sprocket, no. 50 chain, Includes Ref. 9 - 10

2шт.

9

NSS

NOT SOLD SEPARAT

CHAIN - to main driven sprockets, no. 50 chain

1шт.

10

D52906

LINK

Connecting, spring clip type (No. 50 chain)

1шт.

11

REF

INSTRUCTION

CHAIN TIGHTENER - no. 50 chain (Parts list Fig. 048)

2шт.

12

14-924

BOLT,Hex, 9/16" - 18 x 1-1/2", Gr 5, Full Thd

4шт.

11a

14-928

BOLT,Hex, 9/16" - 18 x 1-3/4", Gr 5, Full Thd

2шт.

12a

D53272

WASHER

Special, heat treated

4шт.

13

T42479

WASHER

Special, sealing

6шт.

14

131-675

LOCK NUT,9/16"-18, GB

6шт.

15

113-469

BOLT,Hex, 1/2" - 13 x 5", Gr 5, Full Thd

2шт.

16

25-108

NUT,1/2"-13, G5

6шт.

17

REF

INSTRUCTION

SPROCKET - drive (See Fig. 036 for proper sprocket and parts list)

2шт.

D53028

CHAIN (AG)

ASSEMBLY - to axle gear, no. 80 chain, Includes Ref. 18 - 19

4шт.

18

NSS

NOT SOLD SEPARAT

CHAIN - to axle gear, no. 80 chain

1шт.

19

D53027

LINK

Connecting, cottered type

1шт.

20

D53024

DRIVE SPROCKET

GEAR - axle, driven (Front)

2шт.

21

D53025

DRIVE SPROCKET

GEAR - axle, driven (Rear)

2шт.
