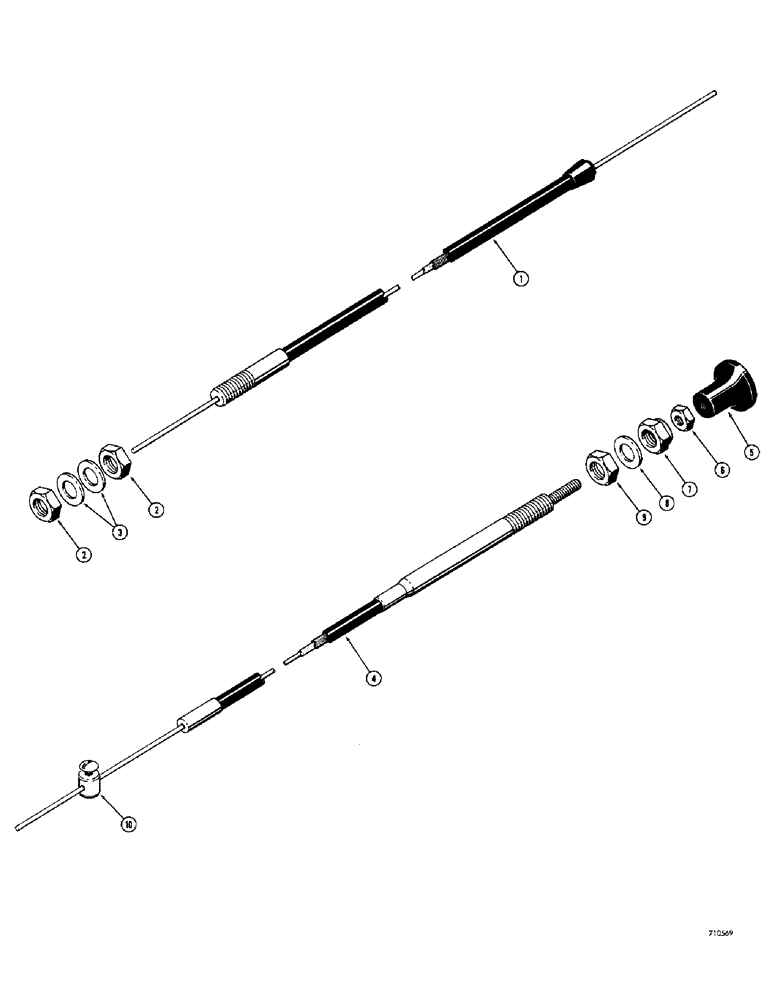

Запчасти Case 1530 (016) - CHOKE AND THROTTLE CABLES (04) - ELECTRICAL SYSTEMS

D52836

CABLE

- throttle, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CABLE - throttle

1шт.

2

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

3

195-520

WASHER,1/4"

- flat (5/16")

2шт.

D57003

CABLE PULLING GRIP

CABLE - choke control (Serviced complete), Includes: Ref. 4 - 10

1шт.

D52880

- choke control (Use D57003 for service), Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

CABLE - choke control

1шт.

5

D52915

KNOB

- cable assembly

1шт.

6

129-660

NUT,#10-32, Brass

1шт.

7

D52916

NUT - special sealing (5/16" - 24 NF)

1шт.

8

195-520

WASHER,1/4"

- flat (5/16")

1шт.

9

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

10

L32208

CLAMP

COLLAR ASSEMBLY - cable

1шт.
