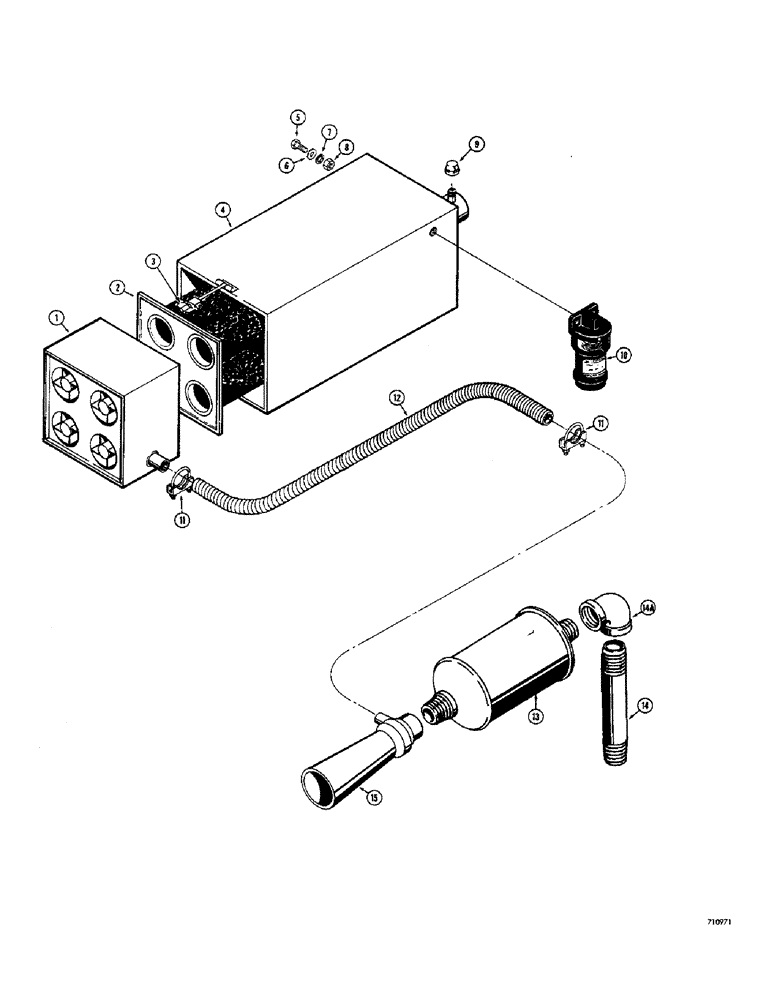

Запчасти Case 1530 (010) - OPTIONAL AIR CLEANER (02) - ENGINE

1

T41630

PANEL - pre-cleaner

1шт.

2

T41629

CARTRIDGE - filter

1шт.

3

T41637

NUT - wing

2шт.

4

T41621

HOUSING - air cleaner

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

6

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

7

92-5

LOCK WASHER,5/16"

4шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

9

221-522

CAP,1/8" NPT

- pipe, 1/8" - NPT

1шт.

10

T41628

INDICATOR - filter service

1шт.

11

T41632

CLAMP - hose, metal flex

2шт.

12

T41631

HOSE - metal flex

1шт.

13

T41639

MUFFLER

- aspirator

1шт.

14

221-272

NIPPLE - exhaust pipe, 1-1/4" NPT x 7"

1шт.

14a

221-380

ELBOW,90 Degree, 1 1/4" NPT

- 90 degrees

1шт.

15

T41635

ASPIRATOR ASSEMBLY - 1530 only

1шт.
