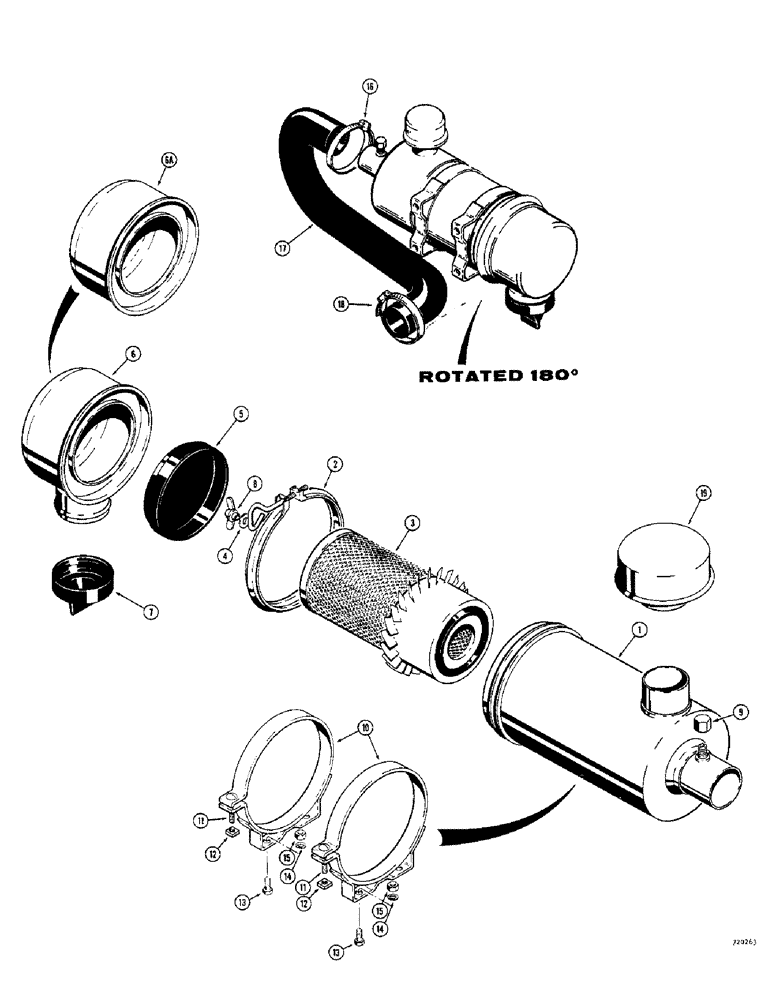

Запчасти Case 1530 (008) - AIR CLEANER, STANDARD TYPE (02) - ENGINE

T40349

CLEANER

AIR, ASSEMBLY - dry type (With vacuator), Includes Ref. 1 - 9

1шт.

D55203

CLEANER ASSY.

AIR - dry type (Without vacuator), Includes Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

D48199

CLAMP

RING - clamp

1шт.

3

D48198

AIR CLEANER

ELEMENT - filter

1шт.

4

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

WASHER

1шт.

5

D48200

BAFFLE

1шт.

6

T40357

SPARE PART T40349 Air Cleaner

1шт.

6a

D48201

CUP

D55203 Air Cleaner

1шт.

7

L30414

VALVE

Vacuator (T40349 Air Cleaner)

1шт.

8

D37977

CAP

NUT - wing (When stock is exhuasted, order F91761 nut and washer assembly)

1шт.

9

R21180

CAP

Fitting

1шт.

10

D43713

BAND

Clamp, Includes Ref. 11 - 12

2шт.

11

173-104

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/4"

Mach.

1шт.

12

129-47

NUT

Sq. hd. (#10 - 24 NC)

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

14

92-5

LOCK WASHER,5/16"

4шт.

15

9635082

NUT,5/16" - 18, Gr 5

Hex

4шт.

16

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

17

REF

INSTRUCTION

HOSE - air intake (See Figs. 006 thru 012 for correct hose)

1шт.

18

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

19

D22685

CAP

Air stack

1шт.
