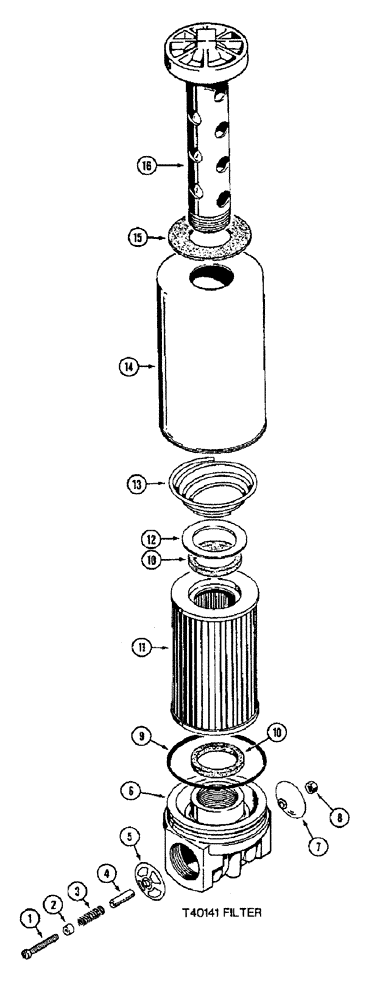

Запчасти Case 1530 (078) - HYDRAULIC FILTER, 2 MOUNTING HOLES IN HEAD (18) - MISCELLANEOUS

T40141

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 16

1шт.

1

169-140

SCREW,Sl Fil Hd, #8 - 32 x 1 3/4"

- bypass filter head

1шт.

2

T29780

CYLINDER END CAP

CAP - bypass stem

1шт.

3

T29782

SPRING

- bypass

1шт.

4

T29783

SPACER

- bypass valve

1шт.

5

T29784

GUIDE

- bypass

1шт.

6

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

7

T29785

VALVE

- bypass

1шт.

8

131-552

NUT,#8-32

NUT - lock, bypass

1шт.

9

T40150

O-RING

SEAL - "O" ring, housing

1шт.

Part of Element Kit, P/N T40153

1шт.

10

T40152

GASKET

2шт.

Part of Element Kit, P/N T40153

1шт.

11

NSS

NOT SOLD SEPARAT

ELEMENT - 33 micron

1шт.

Part of Element Kit, P/N T40153

1шт.

12

T42195

WASHER

- backup

1шт.

13

T29793

SPRING

- conical

1шт.

14

T29794

HOUSING

- filter

1шт.

15

T40156

GASKET

- center post seal

1шт.

Part of Element Kit, P/N T40153

1шт.

16

D46226

POST - center

1шт.

T40153

FILTER

KIT - element, Includes: Ref. 9, 10, 11 and 15

1шт.
