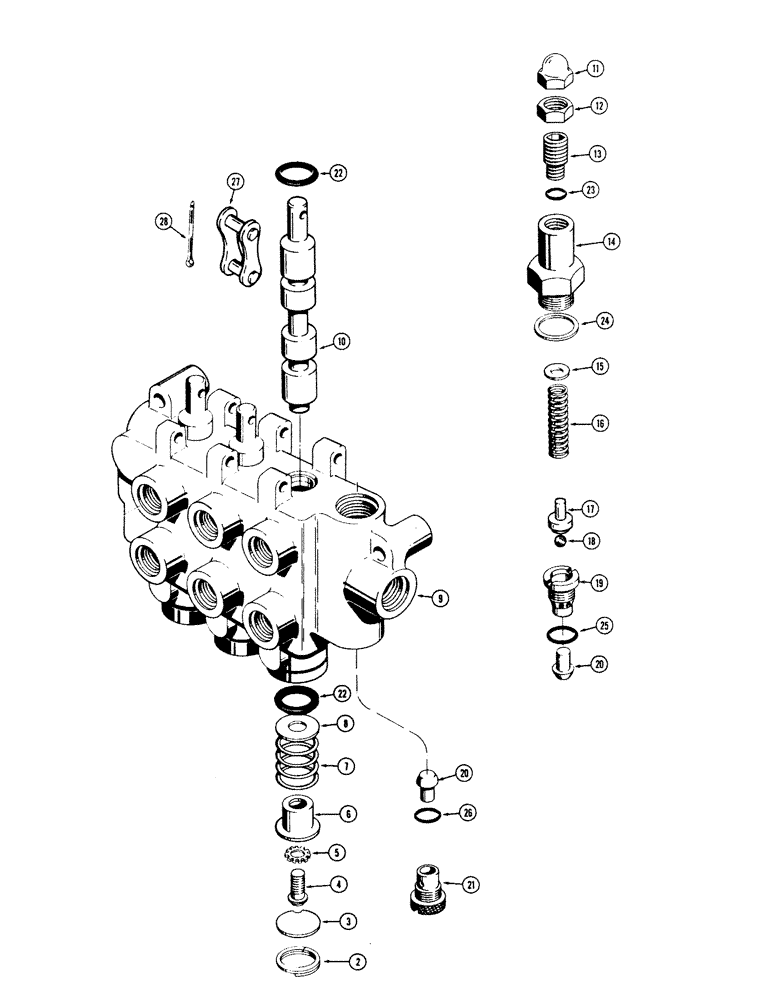

Запчасти Case 1529 (144) - CONTROL VALVE, 3-SPOOLS

T40083

VALVE ASSY, Includes: Ref. 1 - 15

1шт.

1

36645

CAP

BONNET rubber

3шт.

2

36633

LID

snap

3шт.

3

36631

HOUSING

stop

3шт.

4

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

3шт.

5

36628

LOCK WASHER

lock

3шт.

6

CAS36630

COLLAR

stop

3шт.

7

36632

SPRING

3шт.

8

36650

WASHER

3шт.

9

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL

3шт.

11

34109

SPARE PART NUT acorn

1шт.

12

34111

X

NUT

1шт.

13

34110

ADJUSTMENT SCREW

adjustable

1шт.

14

34113

BODY

1шт.

15

36660

WASHER

1шт.

16

34114

VALVE, PRESSURE RELI

EF SPRING

1шт.

17

CAS34120

BUSHING

SPACER

1шт.

18

211-12

BALL,7/16 Dia

1шт.

19

D46222

SEAT

1шт.

20

D28576

VALVE POPPET

2шт.

21

D28574

PLUG

1шт.

T42174

GASKET KIT

seal, Includes: Ref. 22 - 26

1шт.

22

T42095

O-RING

SEAL

6шт.

23

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

1шт.

24

34115

GASKET

1шт.

26

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

27

36640

DRAG LINK

ASSY

3шт.

28

132-13

PIN

cotter

3шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
