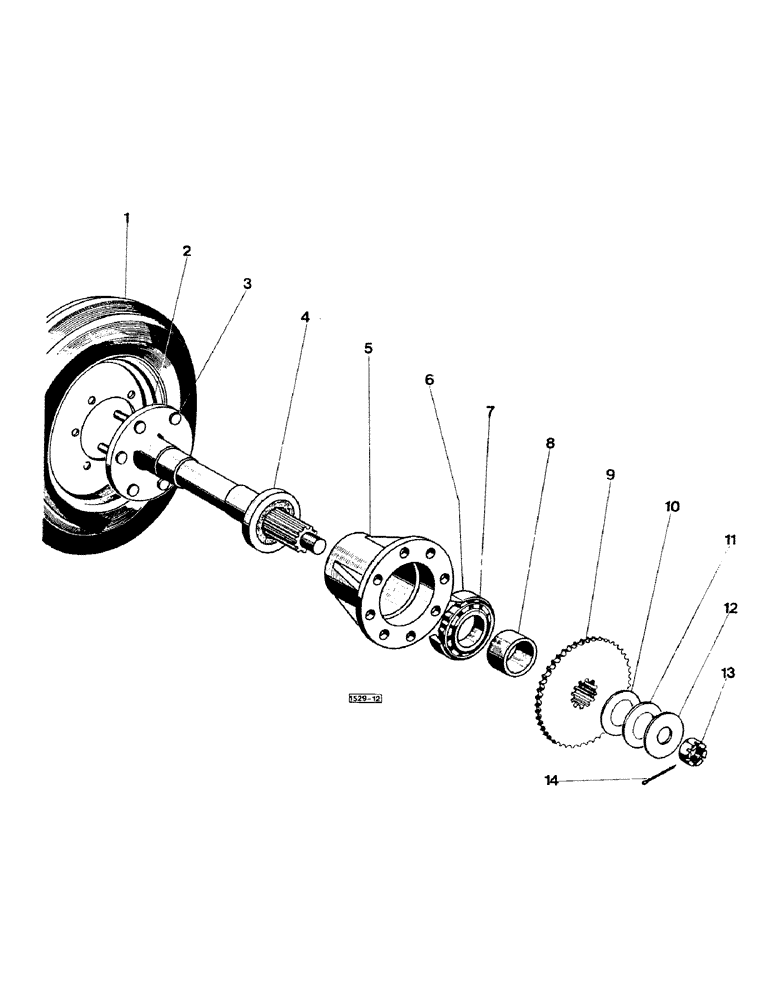

Запчасти Case 1529 (008) - HUB AND SPINDLE, UP TO NO. 3755990

1

T40663

WHEEL

4шт.

T40839

WHEEL

4шт.

T40840

STEM

VALVE

4шт.

E11524

HEEL

WHEEL

4шт.

T40841

SPARE PART

4шт.

T42510

WHEEL/TIRE Solid rubber

4шт.

2

T42238

SHAFT

SPINDLE ASSY

4шт.

When depleted, order (1) D53761+(2) D53766+(2) D53762+(1) D53767+(1) D53784.

1шт.

3

T40045

WHEEL BOLT

1/2" x 1-5/8"

6шт.

4

T40047

OIL SEAL

oil

4шт.

5

T41071

HUB

ASSY

4шт.

6

G15218

BEARING, CUP

CUP

2шт.

7

G15219

ROLLER BEARING

CONE

8шт.

8

T40049

BUSHING

SPACER front spindle

2шт.

T40050

BUSHING

SPACER rear spindle

2шт.

9

T40051

GEAR

SPROCKET driven

4шт.

12

D53273

WASHER,23.02mm ID x 57.15mm OD x 1.41mm Thk

plain 7/8"

4шт.

13

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

4шт.

14

132-52

COTTER PIN,1/8" x 1 1/2"

4шт.
