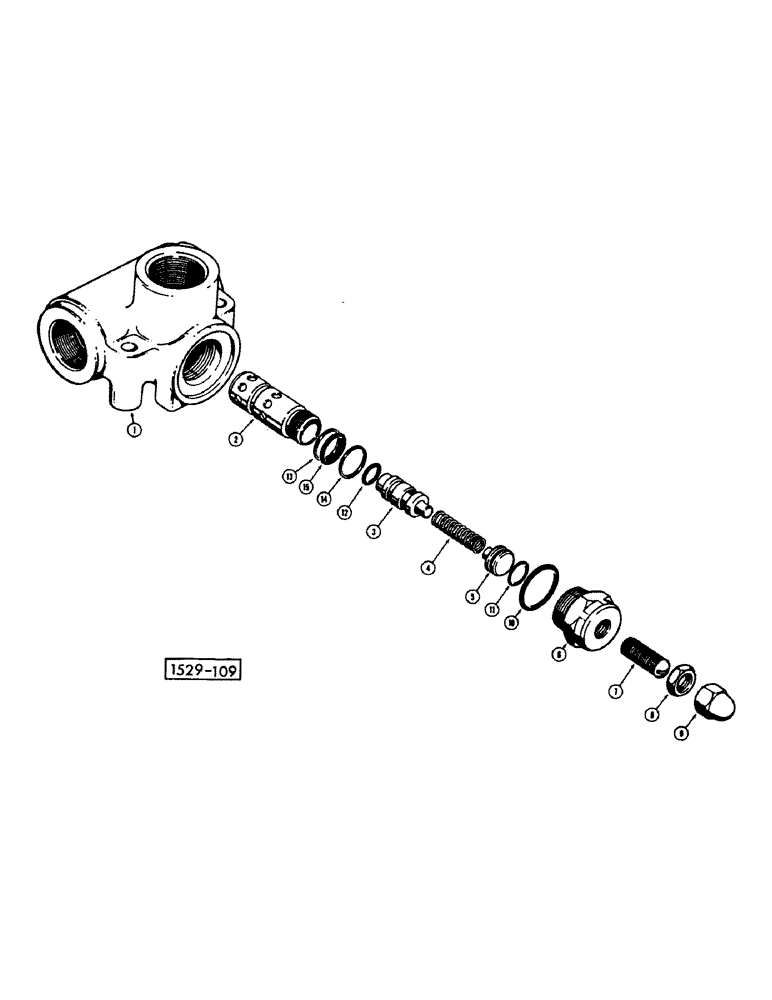

Запчасти Case 1529 (059A) - DIFFERENTIAL RELIEF VALVE

D55217

LOCK VALVE

ASSY, Includes: Ref. 1 - 15

1шт.

1

NUS

BODY

1шт.

D55930

RELIEF ASSY, Includes: Ref. 2 - 15

1шт.

2

D55935

HOUSING

BODY lower

1шт.

3

D55936

HOOK

POPPET

1шт.

4

D55931

SPRING

1шт.

5

D55932

PISTON

SEAT

1шт.

6

D55934

HOUSING

BODY upper

1шт.

7

D55933

SCREW

SPARE PART

1шт.

8

86585245

SPECIAL NUT,JAM, 5/8" - 18

1шт.

9

129-526

CROWN NUT,Low, 3/8" - 24

acorn

1шт.

D55937

KIT

seal, Includes: Ref. 10 - 15

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

Seal

1шт.

12

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

1шт.

13

W12244

RING

WASHER

1шт.

14

L30443

BACK-UP RING,0.547" ID x 0.049" Width

WASHER

1шт.

15

D54799

O-RING

Seal

1шт.
