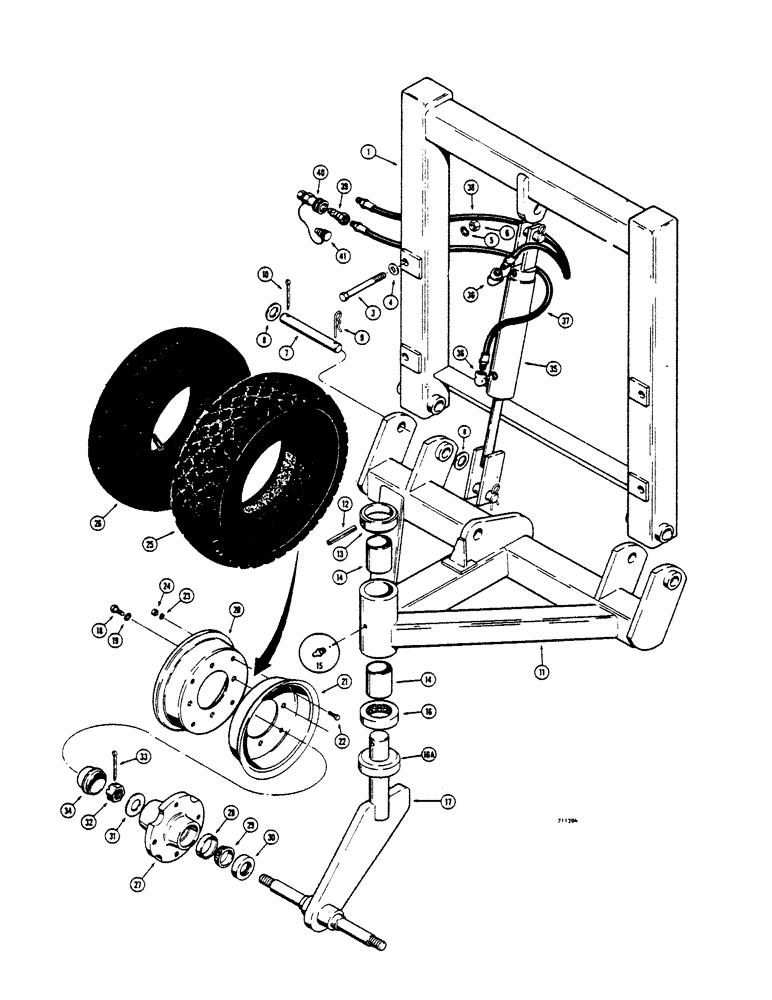

Запчасти Case 1529 (266) - CASTER WHEEL (89) - TOOLS

1

D53141

SPARE PART

1шт.

3

113-448

BOLT,Hex, 1/2" - 13 x 7", Gr 5

4шт.

4

195-533

WASHER,1/2", SAE

4шт.

5

192-23

LOCK WASHER,1/2"

4шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

7

D53165

SPARE PART

2шт.

8

195-553

WASHER,1", SAE

plain

4шт.

9

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

Hair

2шт.

10

132-95

COTTER PIN,3/16" x 1 1/2"

2шт.

11

D53149

SPARE PART

1шт.

12

138-145

LOCK PIN,1/4" x 2 3/4", Slotted

1шт.

13

D53167

SPARE PART BUSHING

1шт.

14

D53166

SPARE PART pivot

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

16

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

1шт.

16a

D54515

SPARE PART BUSHING thrust

1шт.

17

D53161

SPARE PART

1шт.

18

114-409

BOLT,Hex, 1/2" - 20 x 1", Gr 5, Full Thd

8шт.

19

192-23

LOCK WASHER,1/2"

8шт.

20

D53930

RIM

WHEEL outer

2шт.

21

D53931

RIM

WHEEL inner

2шт.

22

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

23

192-21

LOCK WASHER,3/8"

8шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

8шт.

25

REF

INSTRUCTION

TIRE

2шт.

26

REF

INSTRUCTION

TUBE

2шт.

T27808

SPARE PART ASSY.

2шт.

27

NSS

NOT SOLD SEPARAT

HUB

1шт.

28

D29267

BEARING CUP,1.98" OD x 0.42"

2шт.

29

D53168

TAPERED BEARING

CONE

4шт.

30

T27809

SEAL

2шт.

31

195-45

WASHER,3/4"

2шт.

32

25-1312

SLOTTED NUT,3/4"-16, G5

hex

2шт.

33

132-71

COTTER PIN,5/32" x 1 1/4"

2шт.

34

T27814

CAP

2шт.

35

REF

INSTRUCTION

CYLINDER ASSY., see Figure 270

1шт.

36

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

2шт.

37

T42064

HOSE ASSY.

1шт.

38

T42063

HOSE

1шт.

39

T41332

COUPLING, BREAK AWAY

Quick-connect

2шт.

40

T40265

COUPLING, BREAK AWAY

Quick-connect

2шт.

41

T40274

CAP

PLUG

2шт.
