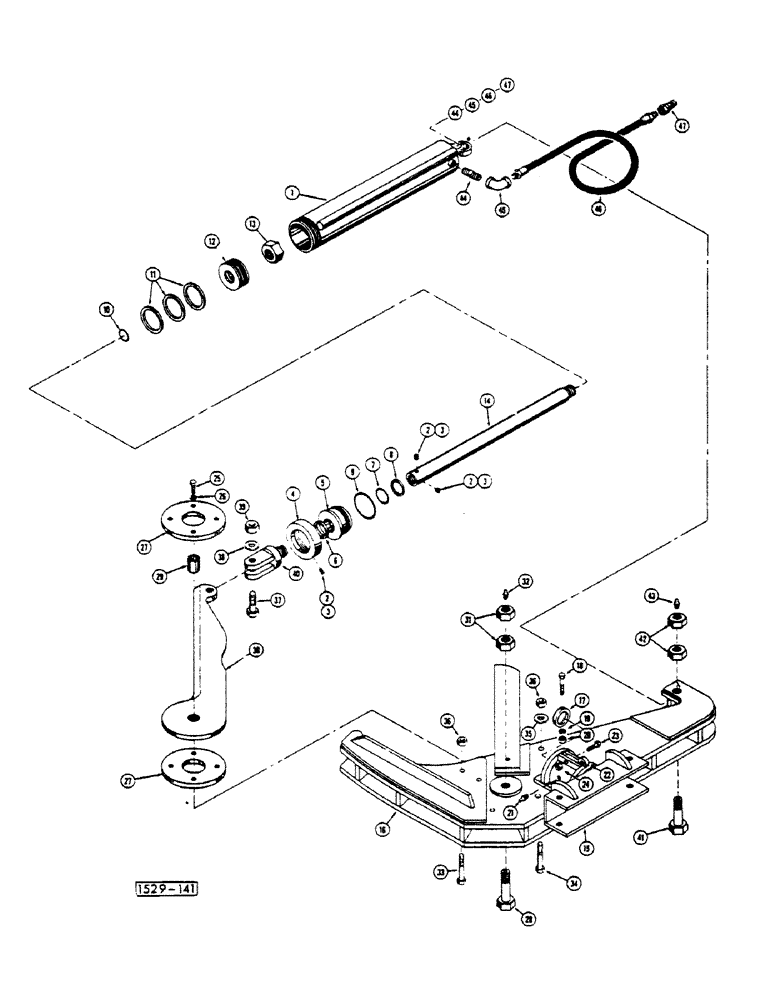

Запчасти Case 1529 (228) - TREE SHEAR, 18" (89) - TOOLS

T41989

CYLINDER BLOCK

ASSY., tree shear

1шт.

1

T41998

SPARE PART BODY cylinder 7" ID x 7.62" OD x 31.88, 6" L

1шт.

2

178-808

SET,Hex Soc, 3/8"-24 x 3/8"

SCREW 3/8" x 3/8" NF

3шт.

3

T41996

LOCK ASSY

nylon

3шт.

4

T42002

CAP gland

1шт.

5

T42001

GLAND

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seal kit P/N T41997

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seal kit P/N T41997

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER backup

1шт.

Part of seal kit P/N T41997

1шт.

9

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Part of seal kit P/N T41997

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seal kit P/N T41997

1шт.

11

NSS

NOT SOLD SEPARAT

RING piston

3шт.

Part of seal kit P/N T41997

1шт.

12

T42000

PISTON ASSY.

1шт.

13

131-910

NUT hex, jam 1-3/4" NC

1шт.

14

T41999

ROD piston

1шт.

T41997

BUCKLE

KIT seal, Includes: Ref. 6 - 11

1шт.

15

NSS

NOT SOLD SEPARAT

FRAME mounting

1шт.

16

NSS

NOT SOLD SEPARAT

FRAME shear

1шт.

17

NSS

NOT SOLD SEPARAT

RING

1шт.

18

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

19

92-8

LOCK WASHER,1/2"

1шт.

20

25-108

NUT,1/2"-13, G5

Hex

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

22

NSS

NOT SOLD SEPARAT

LATCH

1шт.

23

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

24

25-108

NUT,1/2"-13, G5

Hex

1шт.

25

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

26

92-12

LOCK WASHER,3/4"

8шт.

27

T41991

PLATE wear

2шт.

28

T41994

PIN 2"

1шт.

29

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

30

T41990

BLADE shear

1шт.

31

25-1432

SPARE PART NUT hex 2" NC

2шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

33

13-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

1шт.

34

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

1шт.

35

95-16

WASHER,1 1/16" x 2 1/2" x .164"

plain 1"

1шт.

36

25-1016

NUT,1"-8, G5

2шт.

37

13-2064

BOLT,Hex, 1-1/4" - 7 x 4", Gr 5

1шт.

38

95-20

WASHER,1 1/4" x 2 3/8" x .165"

plain

1шт.

39

25-1020

NUT,1 1/4"-7, G5

1шт.

40

T41992

CLEVIS

1шт.

41

T41993

PIN 1-3/4"

1шт.

42

25-1428

SPARE PART NUT hex 1-3/4" NC

2шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

44

221-212

NIPPLE, LUBE

NIPPLE

2шт.

45

221-384

ELBOW

2шт.

46

D54514

HOSE ASSY.

1/2" x 70"

2шт.

47

T41332

COUPLING, BREAK AWAY

male

2шт.
