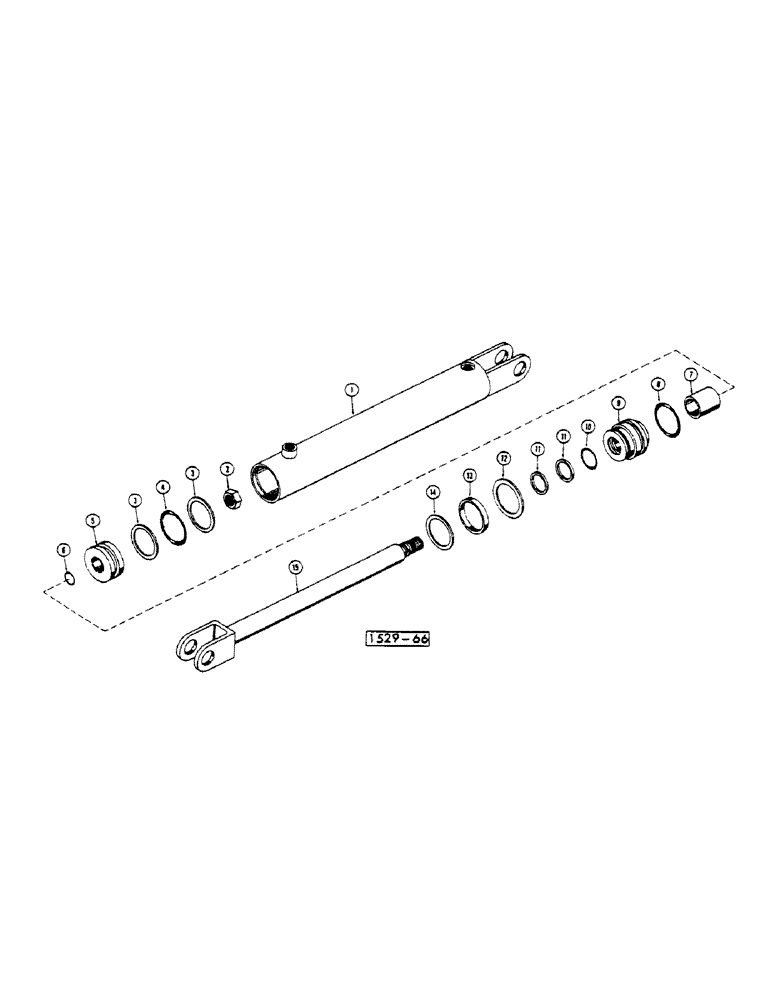

Запчасти Case 1529 (226) - HYDRAULIC GRAPPLE CYLINDER (89) - TOOLS

T40865

CYLINDER

ASSY., hydraulic grapple, when depleted order D61075

2шт.

1

NSS

NOT SOLD SEPARAT

BODY cylinder

1шт.

2

25-159

JAM NUT,Jam, 9/16"-18, G5

hex 9/16" NF

1шт.

3

NSS

NOT SOLD SEPARAT

backup

2шт.

Part of seal kit P/N T41499

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seal kit P/N T41499

1шт.

5

T24084

PISTON

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of seal kit P/N T41499

1шт.

7

T42254

BUSHING

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of seal kit P/N T41499

1шт.

9

T42253

HEAD

GLAND

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seal kit P/N T41499

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER rod

2шт.

Part of seal kit P/N T41499

1шт.

12

NSS

NOT SOLD SEPARAT

RING lock

1шт.

Part of seal kit P/N T41499

1шт.

13

T24081

SPACER

1шт.

14

T24080

SNAP RING,#175, Ext Spiral

1шт.

15

T42252

PISTON

ROD

1шт.

T41499

SEAL

seal, Includes: Ref. 3, 4, 6, 8 and 10 - 12

1шт.
