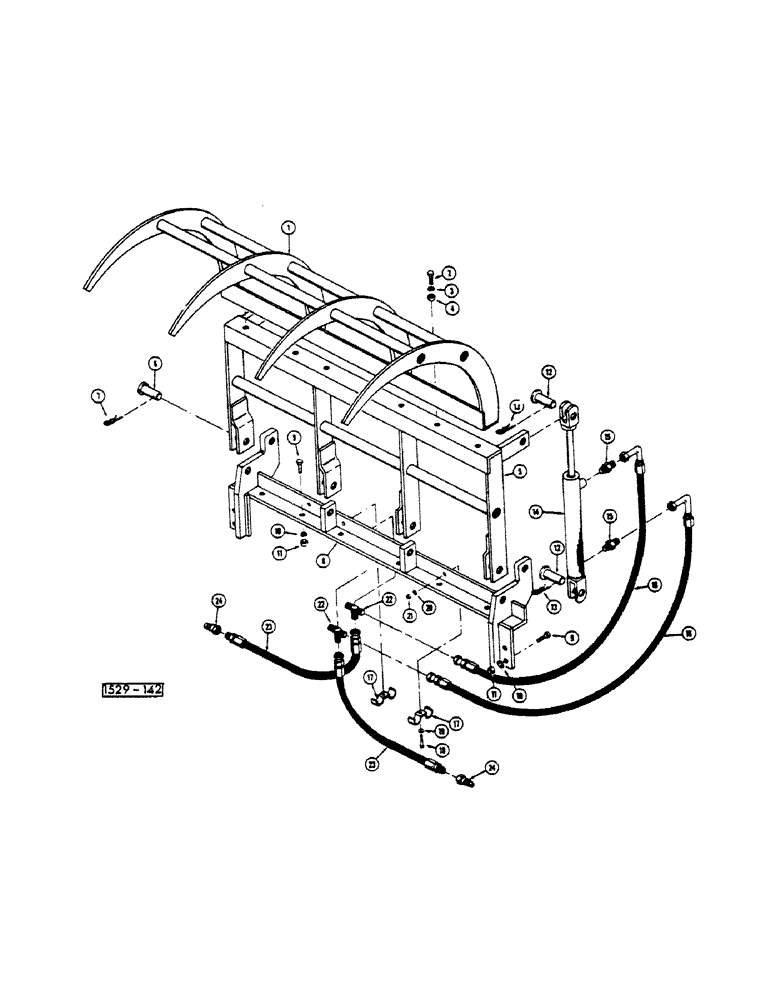

Запчасти Case 1529 (222) - HYDRAULIC GRAPPLE (89) - TOOLS

1

T41575

TINE

grapple

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

3

192-23

LOCK WASHER,1/2"

6шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

5

T41569

SPARE PART TINE mounting

1шт.

6

D61036

PIN

4шт.

7

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

Hair

8шт.

8

T41564

SPARE PART UPRIGHT grapple

1шт.

9

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

10шт.

10

192-23

LOCK WASHER,1/2"

10шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

10шт.

12

D61036

PIN

4шт.

13

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

Hair

8шт.

14

REF

INSTRUCTION

CYLINDER, see Figure 226

2шт.

15

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

4шт.

16

T41579

HOSE

4шт.

17

T41582

CLAMP

4шт.

17a

D40236

CLAMP

4шт.

17b

D33829

BUSHING

SPACER

4шт.

18

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

with T41582

4шт.

18

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

With D40236

4шт.

19

195-518

WASHER,1/4", SAE

4шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

22

218-594

TEE,3/4"-16, 37 Degree

2шт.

23

D54759

HOSE

2шт.

24

T41332

COUPLING, BREAK AWAY

2шт.
