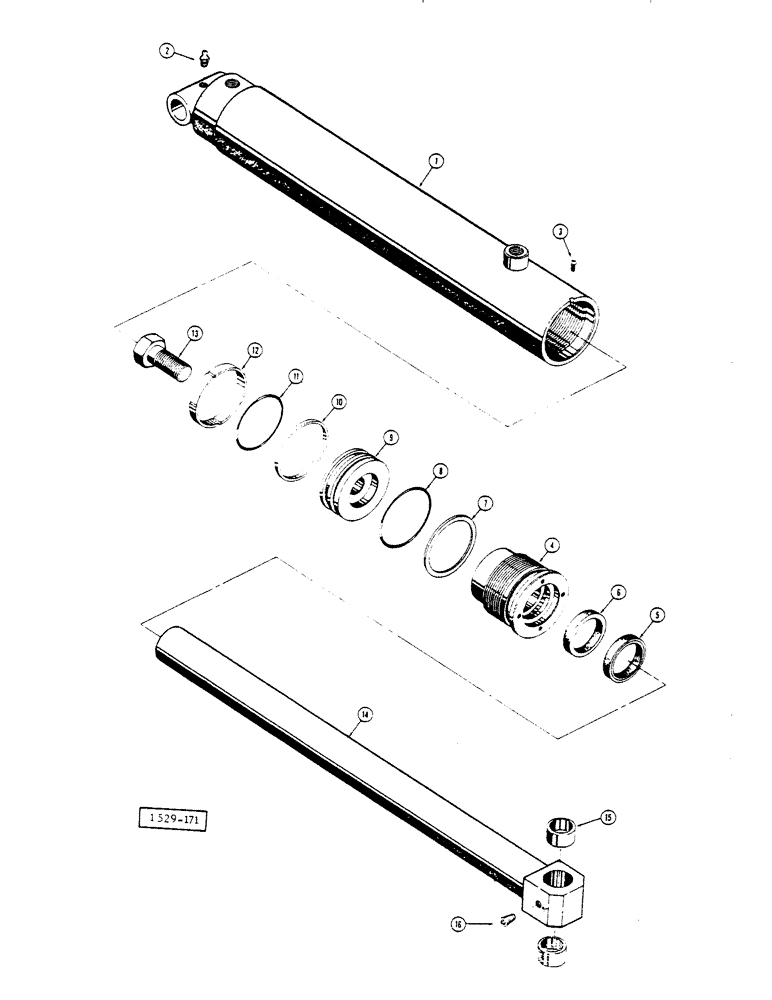

Запчасти Case 1529 (212) - WOOD-TICK CYLINDER (89) - TOOLS

G32031

CYLINDER

ASSY., wood-tick

2шт.

1

G32061

HYD TUBE,13.57" L

BODY cylinder

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

3

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

1шт.

4

G32044

GLAND

packing, when depleted order G32797

1шт.

G32797

GLAND

ASSY., packing

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND packing

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER rod

1шт.

Part of seal kit P/N G32269

1шт.

6

D36969

CUP

SEAL rod

1шт.

Part of seal kit P/N G32269

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

backup

1шт.

Part of seal kit P/N G32269

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G32269

1шт.

9

G32032

PISTON

1шт.

10

G32034

RING

backup

1шт.

Part of seal kit P/N G32269

1шт.

11

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G32269

1шт.

12

G32033

RING

wear

1шт.

Part of seal kit P/N G32269

1шт.

13

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

14

G32059

PISTON ROD

ASSY.

1шт.

15

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

2шт.

16

221-849

PLUG,Hex Soc, 1/8"-27

1шт.

G32269

KIT

seal, Includes: Ref. 5 - 8 and 10 - 12

1шт.
