Запчасти Case 1529 (204) - WOOD-TICK (89) - TOOLS

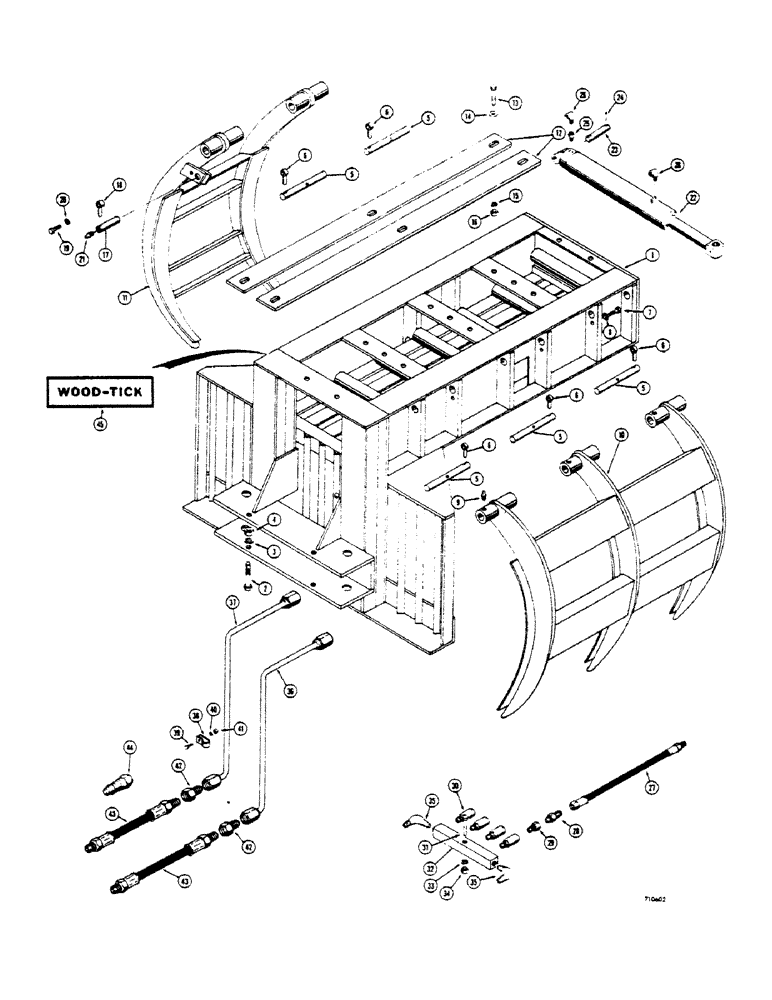

Схема запчастей Case 1529 - (204) - WOOD-TICK (89) - TOOLS
22
5
5
6
27
1
30
15
26
28
43
7
33
2
6
20
4
3
42
41
5
8
43
39
44
34
25
16
37
6
21
5
38
40
6
18
17
36
29
11
24
23
5
19
10
45
42
6
32
31
35
35
9
13
14
12

Артикул

Название

Примечание

Количество

1

T42383

SLIPPER

FRAME

1шт.

2

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex 5/8" x 6" NC

2шт.

3

92-10

LOCK WASHER,5/8"

2шт.

4

25-1010

NUT,5/8"-11, G5

2шт.

5

T40957

PIN

5шт.

6

213-24

ROD

PIN retainer

5шт.

7

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

5шт.

8

92-6

LOCK WASHER,3/8"

5шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

5шт.

10

T42379

TOOTH, RH

1шт.

11

T42377

TOOTH

LH

1шт.

12

T41816

BAR

2шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

14

95-6

WASHER,3/8"

6шт.

15

92-6

LOCK WASHER,3/8"

6шт.

16

25-106

NUT,3/8"-16, G5

hex 3/8" NC

6шт.

17

T40962

SPARE PART

2шт.

18

213-24

ROD

PIN retainer

2шт.

19

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

22

REF

INSTRUCTION

CYLINDER, see Figure 210

2шт.

23

T40757

SPARE PART

2шт.

24

138-142

LOCK PIN,1/4" x 2", Slotted

4шт.

25

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

2шт.

26

221-1410

ELBOW

4шт.

27

T41815

SPARE PART

4шт.

28

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

4шт.

29

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

reducing

4шт.

30

T40964

RESTRICTOR

4шт.

31

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

32

T40960

SPARE PART

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.

34

25-106

NUT,3/8"-16, G5

hex 3/8" NC

1шт.

35

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ELBOW

2шт.

36

T41813

SPARE PART

1шт.

37

T41812

TUBE,0.5" OD

1шт.

38

49838

CLAMP

2шт.

39

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

40

92-6

LOCK WASHER,3/8"

2шт.

41

25-106

NUT,3/8"-16, G5

hex 3/8" NC

2шт.

42

218-434

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male JIC

ADAPTER

2шт.

43

T41580

HOSE

2шт.

44

T41332

COUPLING, BREAK AWAY

2шт.

45

321-1551

DECAL

1шт.

Выбрано товаров: 45
