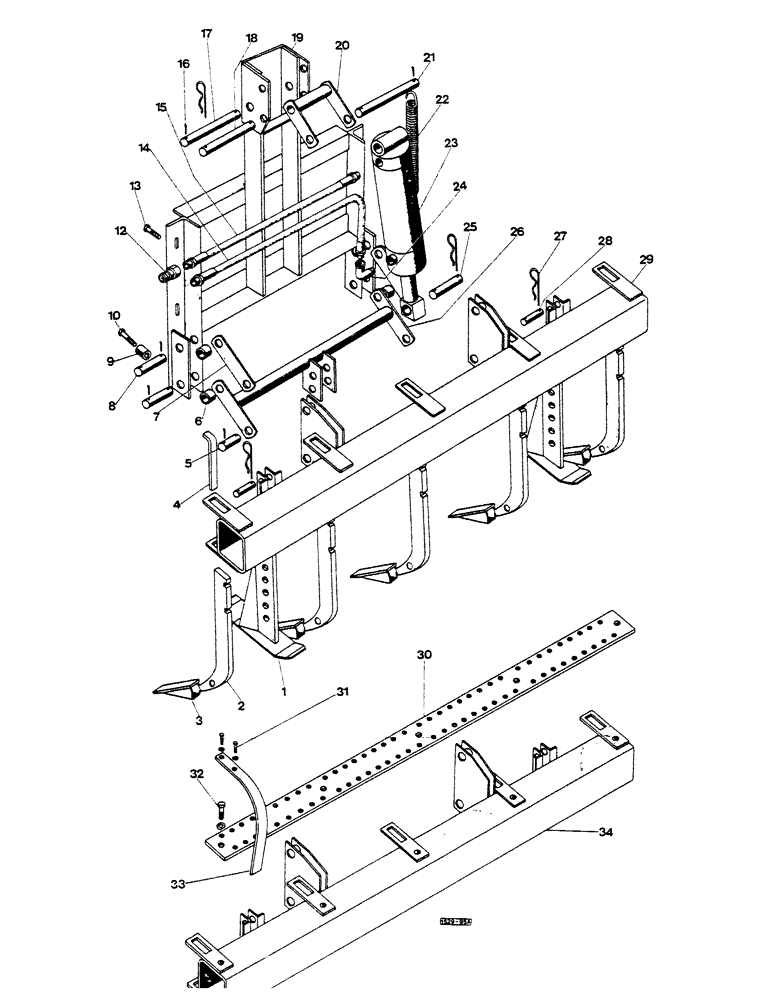

Запчасти Case 1529 (192) - SCARIFIER / BEACH RAKE (89) - TOOLS

1

T42050

SPARE PART depth control

2шт.

2

T42054

TOOTH

ASSY.

5шт.

3

K3871

POINT

TOOTH

1шт.

4

T42056

KEY

5шт.

5

T42062

PIN

4шт.

6

T42058

SPACER

4шт.

7

T42037

SPARE PART hitch

2шт.

8

T42041

AXLE PIN

4шт.

9

D53029

SPACER

Lg 33.5, if used

2шт.

71345

WASHER

SPACER, Lg 80, if used

2шт.

10

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

If used

2шт.

113-469

BOLT,Hex, 1/2" - 13 x 5", Gr 5, Full Thd

If used

2шт.

195-106

WASHER,1/2"

plain

2шт.

192-23

LOCK WASHER,1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

12

T41332

COUPLING, BREAK AWAY

male

2шт.

13

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

4шт.

195-106

WASHER,1/2"

plain

4шт.

13

192-23

LOCK WASHER,1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

14

T42064

HOSE ASSY.

1шт.

15

T42063

HOSE

1шт.

16

132-159

COTTER PIN,1/4" x 3"

21шт.

17

T42036

AXLE PIN

1шт.

18

T42036

AXLE PIN

1шт.

19

T42023

SPARE PART

1шт.

20

T42032

HINGE

upper

1шт.

21

T42035

AXLE PIN

1шт.

22

T42060

SPRING

1шт.

23

REF

INSTRUCTION

CYLINDER ASSY., see Figure 198

1шт.

24

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

90

1шт.

25

T42041

AXLE PIN

1шт.

26

T42038

WHEEL

LINK lower

1шт.

27

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

Hair

12шт.

28

T42057

AXLE PIN

4шт.

29

T42043

SPARE PART

1шт.

30

E18680

PLATE shank hitch, beach rake

1шт.

31

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Beach rake

72шт.

92-6

LOCK WASHER,3/8"

beach rake

72шт.

32

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Beach rake

5шт.

92-10

LOCK WASHER,5/8"

Beach rake

5шт.

33

E18681

SHANK, beach rake

36шт.

34

E18679

TOOL BAR, beach rake

1шт.
